SF1001G thru SF1008G
Taiwan Semiconductor
CREAT BY ART

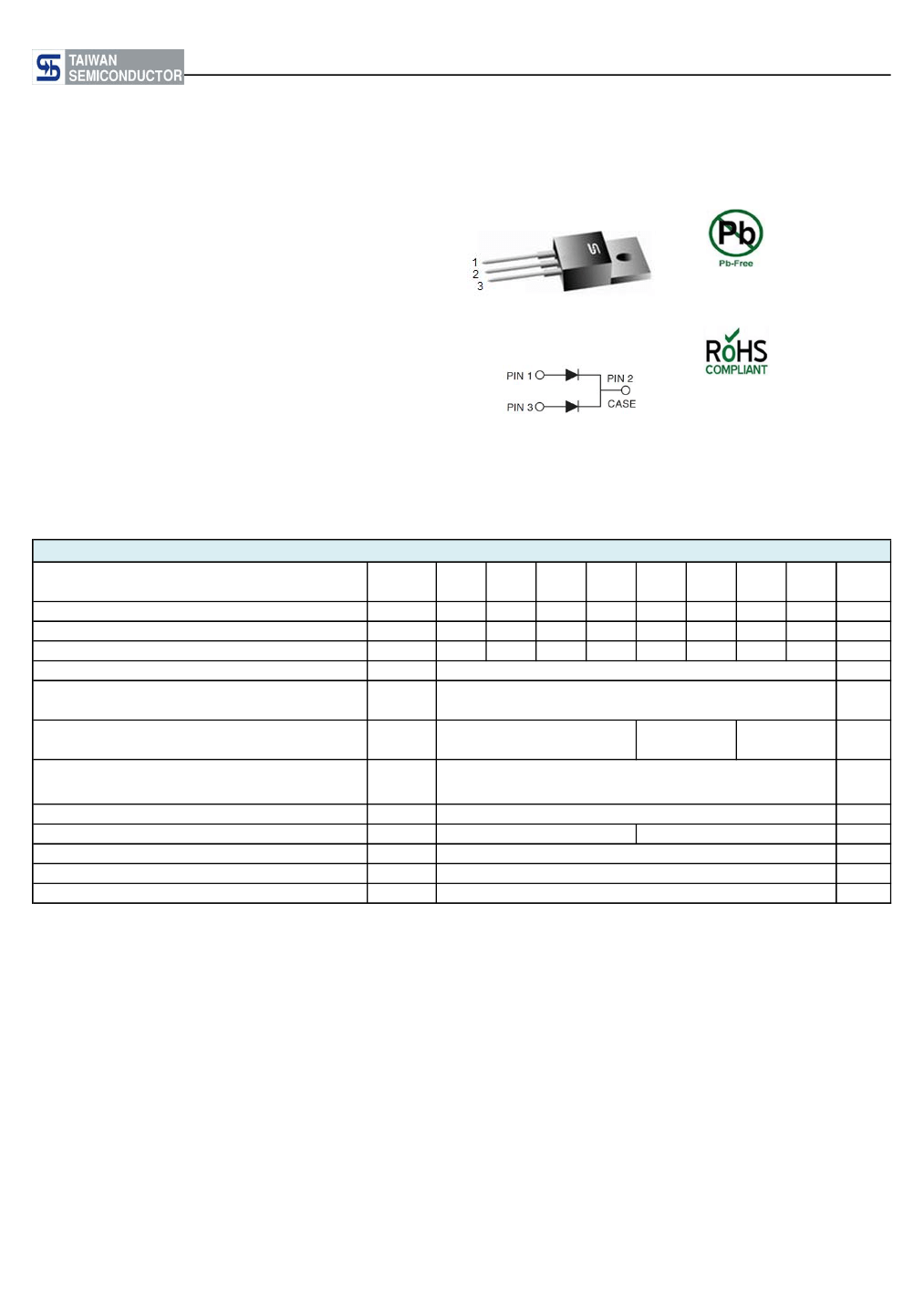

FEATURES
- High efficiency, low VF
- High current capavility
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Glass Passivated Super Fast Rectifiers
TO-220AB
MECHANICAL DATA
Case:
TO-220AB
Molding compound, UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.82 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage
@5A
Maximum reverse current @ rated VR
(Note 1)
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJC
T
J
T
STG
70
3.5
- 55 to +150
- 55 to +150
0.975
10
400
35
50
SF
50
35
50
SF
100
70
100
SF
150
105
150
SF
200
140
200
10
125
1.3
1.7
SF
300
210
300
SF
400
280
400
SF
500
350
500
SF
600
420
600
1001G 1002G 1003G 1004G 1005G 1006G 1007G 1008G
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
T
J
=25 °C
T
J
=100 °C
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs, 1% Duty Cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A.
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0 V D.C.
Document Number: DS_D1411015
Version: I14
SF1001G thru SF1008G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SF100xG
(Note 1)
PACKING CODE
C0
PACKING CODE
SUFFIX
G
PACKAGE
TO-220AB
PACKING
50 / Tube
Note 1: "x" defines voltage from 50V (SF1001G) to 600V (SF1008G)
EXAMPLE
PREFERRED
PART NO.
SF1001G C0
SF1001G C0G
PART NO.
SF1001G
SF1001G
PACKING CODE
C0
C0
G
Green compound
PACKING CODE
SUFFIX
DESCRIPTION

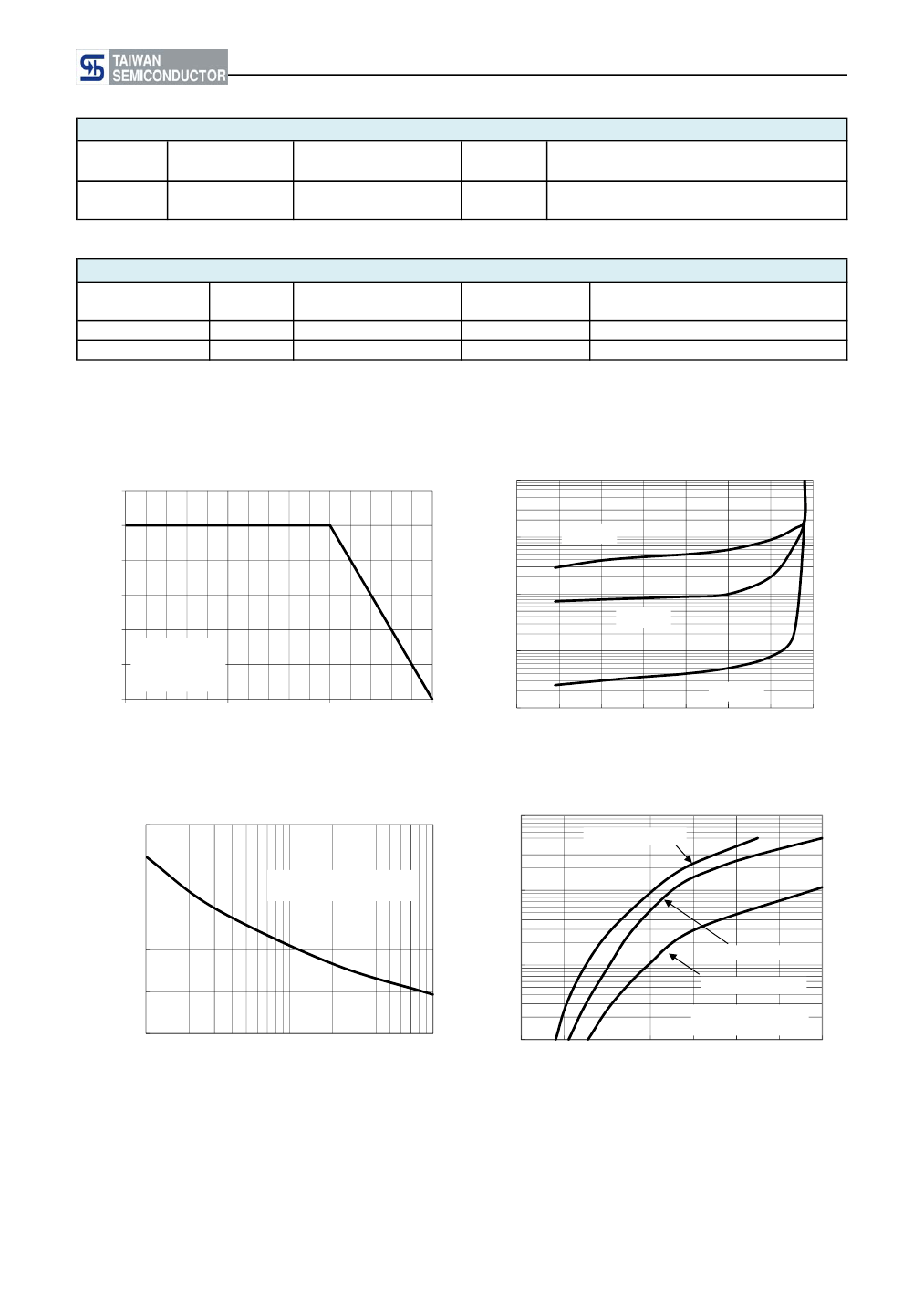

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
12
10
8
6
4
2
0
0
50
100
150
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
INSTANTANEOUS REVERSE CURRENT (μA)
1000
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
PER LEG
AVERAGE FORWARD CURRENT (A)
100
T
J
=100°C
10
T
J
=75°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
CASE TEMPERATURE (
o
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
150
100
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
PER LEG
SF1001G~SF1004G
PEAK FORWARD SURGE CURRENT(A)
120
8.3ms Single Half Sine Wave
90
10
60
1
SF1005G~SF1006G
SF1007G~SF1008G
Pulse Width=300μs
1% Duty Cycle
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE. (V)
Document Number: DS_D1411015
Version: I14
SF1001G thru SF1008G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
100
90
CAPACITANCE (pF)
80
70
60
50
40
1
10
100
1000
REVERSE VOLTAGE. (V)
f=1.0MHz
Vsig=50mVp-p
SF1001G~SF1004G
SF1005G~SF1008G

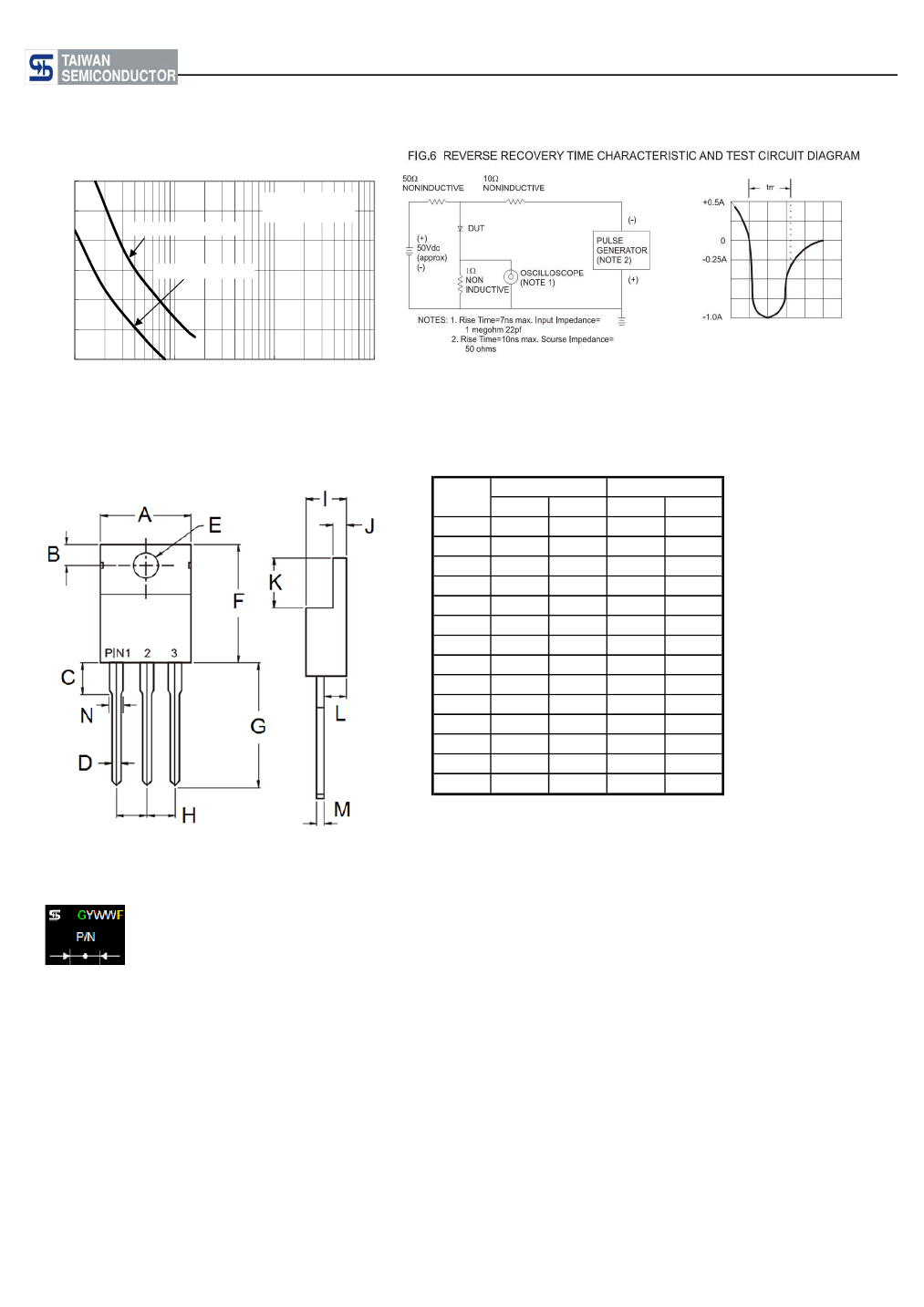

PACKAGE OUTLINE DIMENSIONS
TO-220AB
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Unit (mm)
Min
-
2.62
2.80
0.68
3.54
14.60
13.19
2.41
4.42
1.14
5.84
2.20
0.35
1.14
Max
10.50
3.44
4.20
0.94
4.00
16.00
14.79
2.67
4.76
1.40
6.86
2.80
0.64
1.77
Unit (inch)
Min
-
0.103
0.110
0.027
0.139
0.575
0.519
0.095
0.174
0.045
0.230
0.087
0.014
0.045
Max
0.413
0.135
0.165
0.037
0.157
0.630
0.582
0.105
0.187
0.055
0.270
0.110
0.025
0.070
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1411015
Version: I14
SF1001G thru SF1008G
Taiwan Semiconductor
CREAT BY ART
Notice
