T-1114G

Description
ADSL Transformer Reinforced Insulation Per EN 41003/EN 60950
CategoryPower management    transformer
File Size32KB,1 Pages
ManufacturerRhombus Industries, Inc.
Websitehttp://www.rhombus-ind.com/
Download Datasheet Parametric View All

T-1114G Overview

ADSL Transformer Reinforced Insulation Per EN 41003/EN 60950

T-1114G Parametric

Parameter NameAttribute value
MakerRhombus Industries, Inc.
Reach Compliance Codeunknow
ECCN codeEAR99
high11.94 mm
length23.37 mm
Manufacturer's serial numberT-1114G
Installation featuresSURFACE MOUNT
physical size23.37mm X 22.86mm X 11.94mm
surface mountYES
Transformer typeTELECOM TRANSFORMER
width22.86 mm
ADSL Transformer
Reinforced Insulation Per EN 41003/EN 60950
Turns Ratio (
+
3 % )
PARAMETER
MIN.
MAX.
1.4 : 1
UNITS

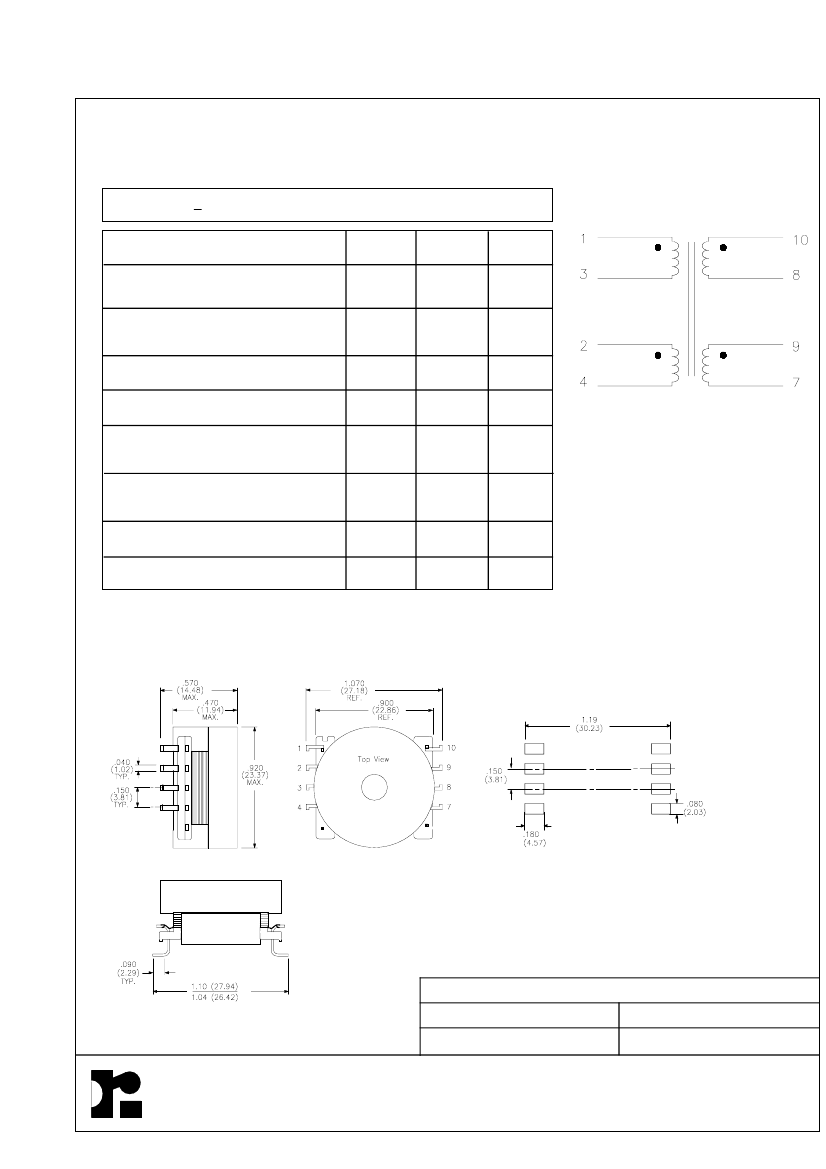

Schematic Diagram
Primary Inductance
1
Pins 1-4 with 2 & 3 shorted.
895
453
1200
550
µH
µH
µH
pF
ohms
Secondary Inductance
Pins 10-7 with 8 & 9 shorted.
Leakage Inductance
Interwinding Capacitance
Primary DC Resistance
Pins 1-3 or 2-4
P ri
Sec
15
20
0.4
Secondary DC Resistance
Pins 10-8, or 9-7
0.4
ohms
This part is available in
Surface Mount.
Add Suffix "G"
to part number.
Isolation (Hi-Pot)
DC Bias
1
3000
2
V
RMS
mA
Physical
Dimensions
inches (mm)
Tested @ 100kHz & 100 mV
RMS
Unused Pins
Omitted
RHOMBUS P/N: T-1114G
CUST P/N:
DATE: 1/15/98
NAME:
SHEET:
1 of 1
Rhombus
Industries Inc.
Transformers & Magnetic Products
15801 Chemical Lane, Huntington Beach, CA 92649
Phone: (714) 898-0960
FAX: (714) 896-0971
www.rhombus-ind.com
