P-110, P-149 &

PDT-20-50

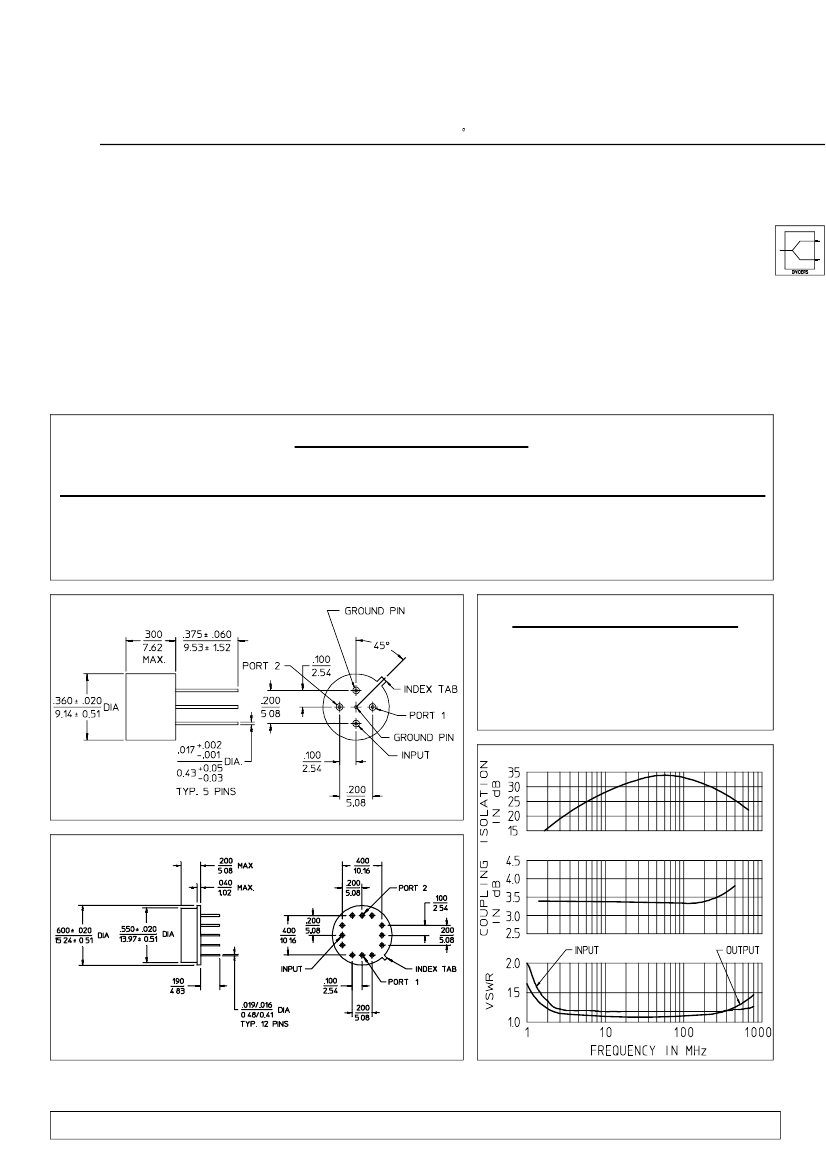

0 POWER DIVIDERS / COMBINERS

1 to 500 MHz / 0.1 dB Balance Typical / 2-Way / Low Insertion Loss / High Isolation / TO-5 & TO-8

PRINCIPAL SPECIFICATIONS

Model

Number

Freq.

Frequency

Isolation, Insertion

Phase

Amplitude

VSWR

Internal

Range, Performance,

dB,

Loss, dB, Balance, Balance, dB, (In/Output)

Load

MHz

Min. Typ. Max. Typ. Max. Typ. Max. Typ. Max. Typ. Rating

1 - 100

5 - 500

20 - 200

5 - 500

20 - 200

0.5

1.0

0.6

1.0

0.6

0.25

0.7

0.3

0.7

0.3

2°

1°

0.2

0.1

1.3:1

1.5:1

1.3:1

1.5:1

1.3:1

1.10:1 50 mW

1.25:1 50 mW

1.10:1

1.25:1 125 mW

1.10:1

PDT-20-50 1 - 100

P-110

5 - 500

P-149

5 - 500

P-110 & PDT-20-50 Outline (TO-5)

GENERAL SPECIFICATIONS

Impedance:

CW Input Power:

Weight, nominal:

TO-5:

TO-8:

Operating Temp. Range:

Ω

nom.

1 W max.

0.1 oz. (2.8 g)

0.14 oz. (4 g)

-- 55° to +85°C

(When used as divider with 1.2:1 VSWR

out

)

Typical P-110 & P-149 Performance

P-149 Package Outline (TO-8)

NOTES:

1. Tolerance on 3 place decimals

.010(.25)except as noted.

2. Dimensions in inches over millimeters

3. All unmarked pins are internally grounded..

16Feb96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531

P-110 Related Products

	P-110	P-149	PDT-20-50
Description	0 POWER DIVIDERS / COMBINERS	0 POWER DIVIDERS / COMBINERS	0 POWER DIVIDERS / COMBINERS
Maker	-	Merrimac Industries（Crane）	Merrimac Industries（Crane）
Reach Compliance Code	-	unknow	unknow
Other features	-	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	-	50 Ω	50 Ω
Maximum input power (CW)	-	30 dBm	30 dBm
Maximum insertion loss	-	1 dB	0.5 dB
Maximum operating frequency	-	500 MHz	100 MHz
Minimum operating frequency	-	5 MHz	1 MHz
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C
RF/Microwave Device Types	-	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	-	1.5	1.3
