PDM-02S-9G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PDM-02S-9G

PDM-02S-9G: Description0 POWER DIVIDERS/ COMBINERS; CategoryWireless rf/communication Radio frequency and microwave; File Size60KB，1 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric View All

PDM-02S-9G Overview

0 POWER DIVIDERS/ COMBINERS

PDM-02S-9G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	44.77 dBm
Maximum insertion loss	1.5 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

PDM-02S Series

0 POWER DIVIDERS/ COMBINERS

0.5 to 18 GHz / 2-Way / Excellent Phase & Ampli Bal. / High Output Port Isolation / Stripline / SMA

PRINCIPAL SPECIFICATIONS

Model

Number

PDM-02S-4G

PDM-02S-9G

Frequency Isolation,

Range,

dB,

GHz

Min.

0.5 to 8.0

0.5 to 18.0

Insertion

Loss,

dB, Max.

0.9

1.5

Phase Amplitude

Balance, Balance,

Max.

dB, Max.

4°

8°

0.3

0.4

VSWR

In/Out,

Max.

1.30:1

1.35:1

CW Input, W,

with VSWR

out

1.20:1 2.0:1

∞

GENERAL SPECIFICATIONS

General Notes:

1. The PDM-02S series of two-way power dividers provide

precise in-phase division of microwave signals in three multi-

octave bands up to 0.5 to 18.0 GHz.

2. These units have been developed to meet broadband

ECM requirements with precise amplitude and phase bal-

ance combined with high output port isolation.

Impedance:

Ω

nom.

Operating Temperature: -- 55° to +85°C

Connectors:

SMA Female to

meet interface

requirements of

MIL-C-39012

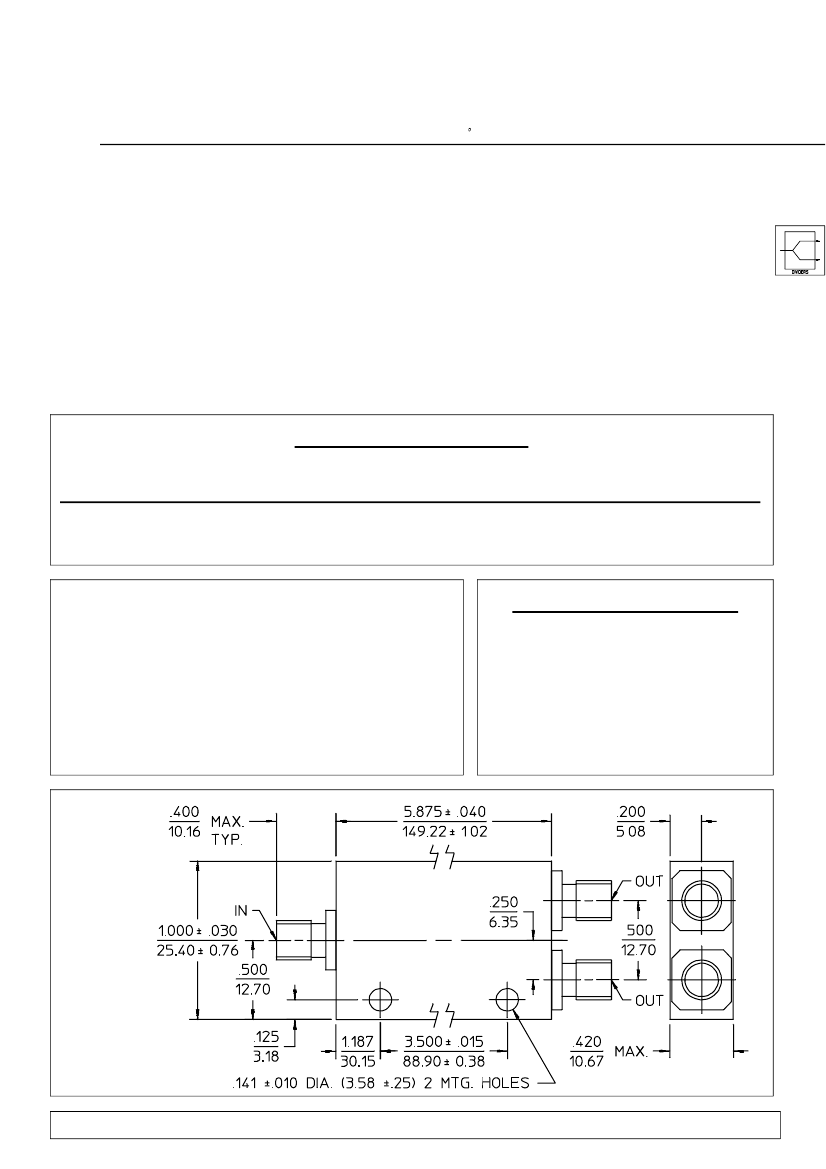

Package Outline

NOTES: 1. Tolerance on 3 place

decimals

.020(.51) except as noted.

2. Dimensions in inches over millimeters.

19Feb96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
