PDM-84-12G: Description0 POWER DIVIDERS / COMBINERS; CategoryWireless rf/communication Radio frequency and microwave; File Size62KB，1 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PDM-84-12G Overview

0 POWER DIVIDERS / COMBINERS

PDM-84-12G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	44.77 dBm
Maximum insertion loss	2 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	6000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

PDM-84-G Series

0 POWER DIVIDERS / COMBINERS

2 to 18 GHz / 8-Way / Uniform Phase & Ampli. Bal. / High Isolation / Low Insertion Loss / SMA

PRINCIPAL SPECIFICATIONS

Model

Number

PDM-84-5G

PDM-84-12G

Freq. Isolation, Insertion

Range,

dB,

Loss, dB,

GHz

Min.

Max.

2.0 - 8.0

6.0 - 18.0

18

15

1.5

2.0

Phase Amplitude VSWR,

Balance, Balance,

Max.

dB, Max. In

Out

8°

12°

0.5

1.6:1

1.5:1

1.60:1 1.50:1

CW Power, W,

at load VSWR Outline

1.2:1 2.0:1

∞

Dwg.

30

10

1

2

GENERAL SPECIFICATIONS

General Notes:

1. The PDM-84-G series eight way Power Divider/Combiners

covers 2 to 18 GHz using a multi-section stripline Wilkinson

design providing high isolation and low VSWR. Etched PTFE

fiberglass stripline circuits are encased in an aluminum

machined housing that minimizes moding and provides an

effective RF shield.

Impedance:

Weight, nominal:

PDM-84-5G:

PDM-84-12G:

Operating Temperature:

8.5 oz .(240 g)

6.5 oz .(185 g)

-- 55° to +85°C

50

Ω

nom.

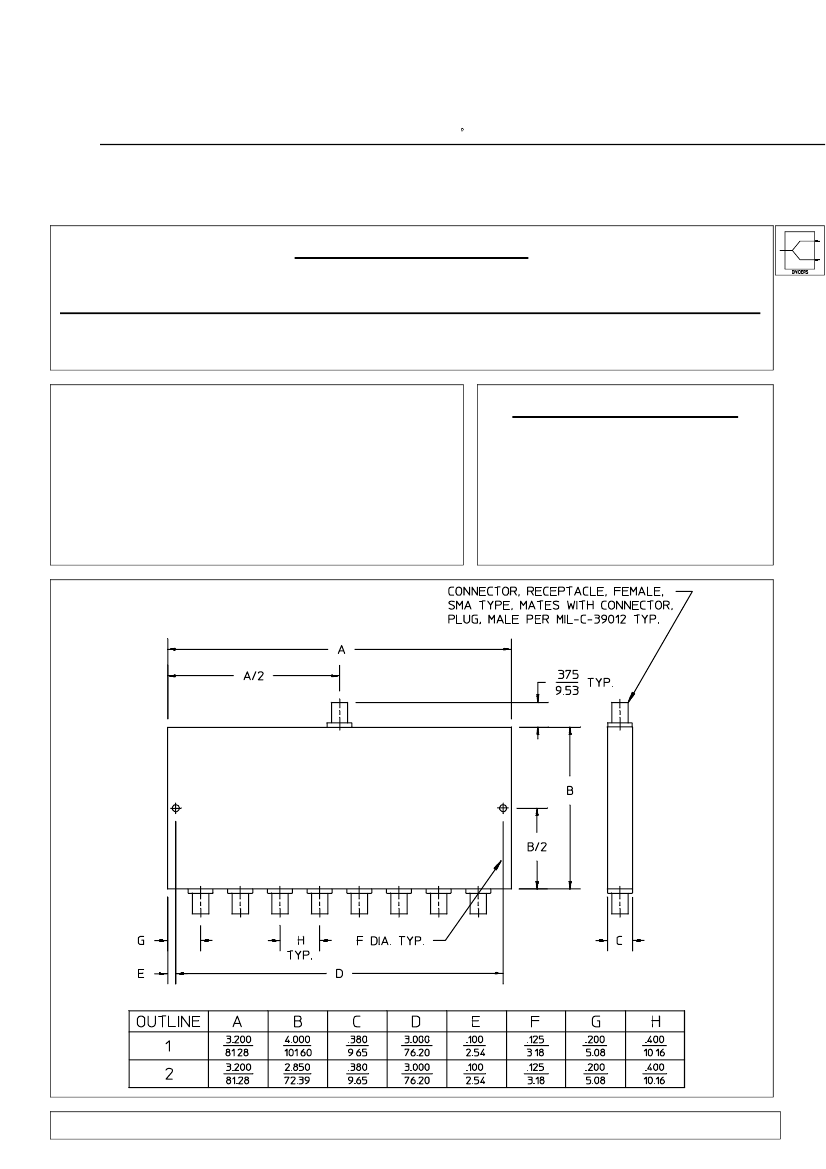

Package Outline

NOTES:

1. Tolerance on 3 place decimals

±

.020(.51) except as noted.

2. Dimensions in inches over mm..

29Apr96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531

PDM-84-12G Related Products

	PDM-84-12G	PDM-84-5G
Description	0 POWER DIVIDERS / COMBINERS	0 POWER DIVIDERS / COMBINERS
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Merrimac Industries（Crane）	Merrimac Industries（Crane）
Reach Compliance Code	unknow	unknow
Other features	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	50 Ω	50 Ω
structure	MODULE	MODULE
Maximum input power (CW)	44.77 dBm	44.77 dBm
Maximum insertion loss	2 dB	1.5 dB
Maximum operating frequency	18000 MHz	8000 MHz
Minimum operating frequency	6000 MHz	2000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.5	1.5
