PDML-20A-100: Description0 POWER DIVIDERS / COMBINERS; CategoryWireless rf/communication Radio frequency and microwave; File Size79KB，1 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PDML-20A-100 Overview

0 POWER DIVIDERS / COMBINERS

PDML-20A-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	200 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

PDML-20A Series

0 POWER DIVIDERS / COMBINERS

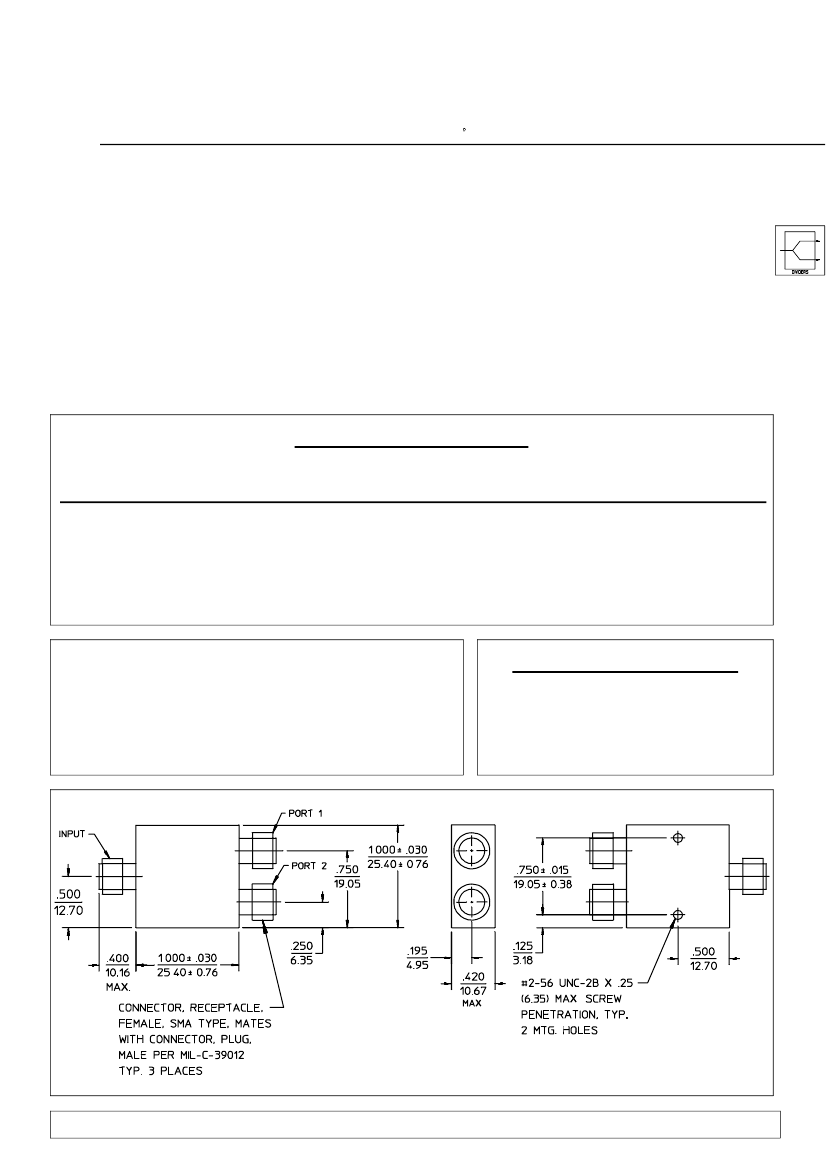

2 to 2000 MHz / 2-Way / In-Line Hi-Rel Package / Wide Bandwidth / Low Insertion Loss / SMA

PRINCIPAL SPECIFICATIONS

Model

Number

PDML-20A-100

Frequency Freq.

Isolation, Insertion

Phase Amplitude

VSWR,

Internal

Range, Perform.,

dB,

Loss, dB,

Balance Bal., dB, (In/Output) Dissip.

MHz

Min. Typ. Max. Typ. Max. Typ. Max. Typ. Max. Typ. mW, Max.

2 - 200

25

30

20

18

12

30

35

25

20

15

0.5

1.0

1.1

1.3

2.0

0.25

0.5

0.7

1.0

1.5

2°

4°

6°

8°

1°

3°

4°

0.15

0.2

0.3

0.4

0.6

0.1

0.2

0.3

0.5

1.3:1

1.5:1

1.6:1

1.8:1

1.15:1

1.15.1

1.2:1

1.4:1

1.5:1

50

2 - 10

10 - 200

PDML-20A-500 5 - 1000 100 - 1000

5 - 1000

PDML-20A-1000 10 - 2000 10 - 1500

1500 - 2000

GENERAL SPECIFICATIONS

General Notes:

1. The PDML-20 series of In-Line 2-way Power Dividers/Combiners covers

2 MHz to 2 GHz using high performance, multi-octave, lumped element

circuits.

2. The housing is a convenient low 0.4 inch (10 mm) profile SMA package.

Nominal Coupling:

Impedance:

CW Input Power:

-- 3 dB

50

Ω

nom.

1W max.

(When used as divider with 1.2:1 VSWR

out

)

Operating Temperature: -- 55° to +85°C

Package Outline

NOTES:

1. Tolerance on 3 place decimals

±

.020(.51) except as noted.

2. Dimension in inches over millimeters.

3. Nominal Weight: 1.0 oz (28 g).

19Feb96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
