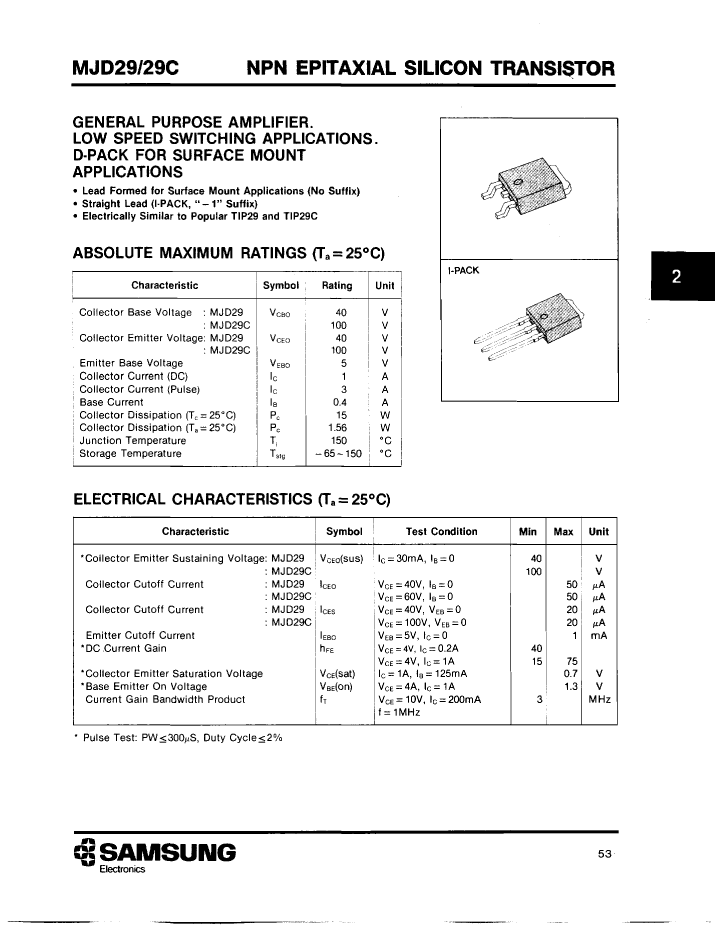

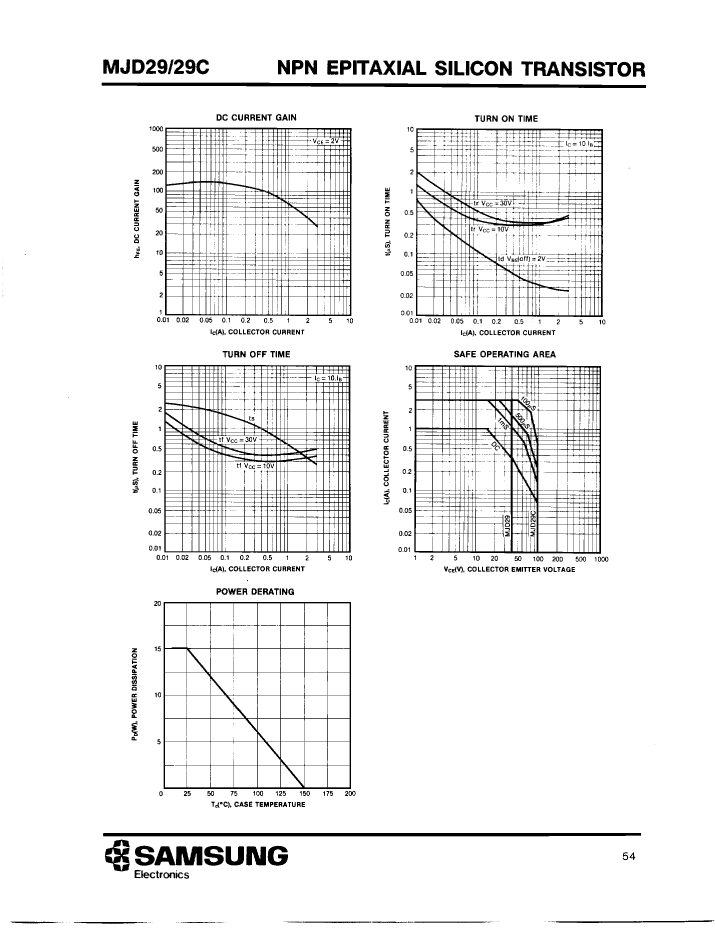

Power Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, DPAK-3
| Parameter Name | Attribute value |
| package instruction | SMALL OUTLINE, R-PSSO-G2 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 1 A |
| Collector-emitter maximum voltage | 100 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 15 |
| JESD-30 code | R-PSSO-G2 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 15 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 3 MHz |
| VCEsat-Max | 0.7 V |
| Base Number Matches | 1 |
| MJD29C-T1 | MJD29C-1 | MJD29-1 | MJD29-T1 | |
|---|---|---|---|---|
| Description | Power Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, DPAK-3 | Power Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, IPAK-3 | Power Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, IPAK-3 | Power Bipolar Transistor, 1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, DPAK-3 |
| package instruction | SMALL OUTLINE, R-PSSO-G2 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PSSO-G2 |
| Contacts | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 1 A | 1 A | 1 A | 1 A |
| Collector-emitter maximum voltage | 100 V | 100 V | 40 V | 40 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 15 | 15 | 15 | 15 |
| JESD-30 code | R-PSSO-G2 | R-PSIP-T3 | R-PSIP-T3 | R-PSSO-G2 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 3 | 3 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| Polarity/channel type | NPN | NPN | NPN | NPN |
| Maximum power consumption environment | 15 W | 15 W | 15 W | 15 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | NO | NO | YES |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 3 MHz | 3 MHz | 3 MHz | 3 MHz |
| VCEsat-Max | 0.7 V | 0.7 V | 0.7 V | 0.7 V |
| Maker | - | SAMSUNG | SAMSUNG | SAMSUNG |
