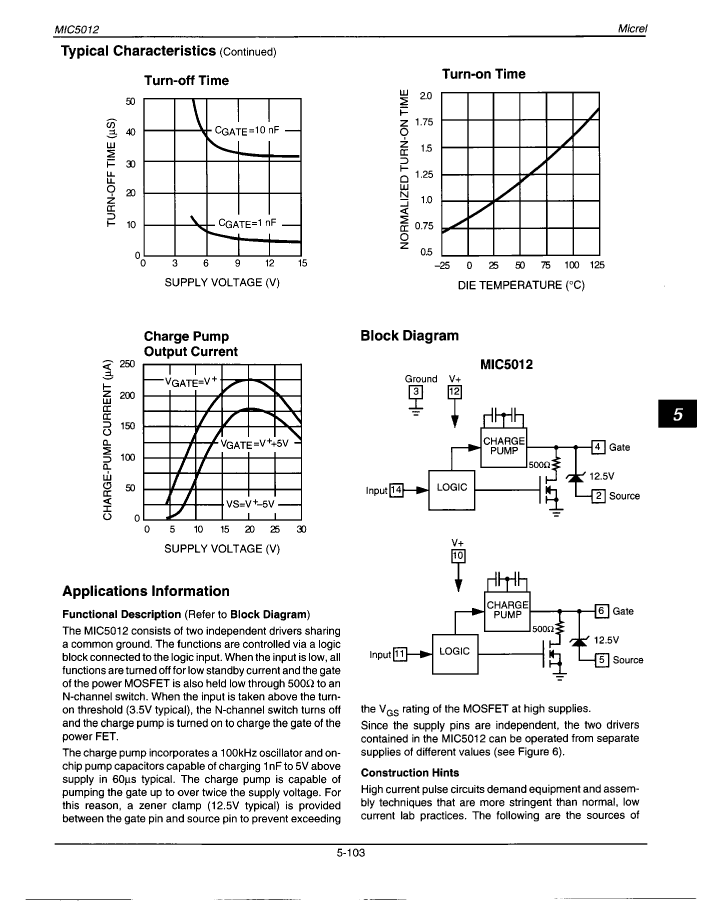

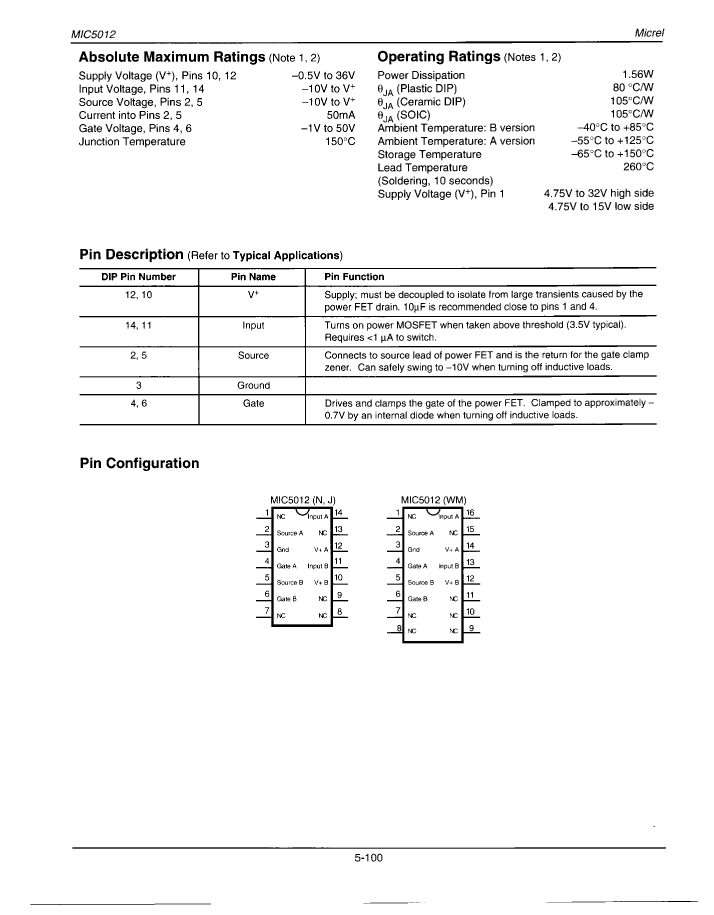

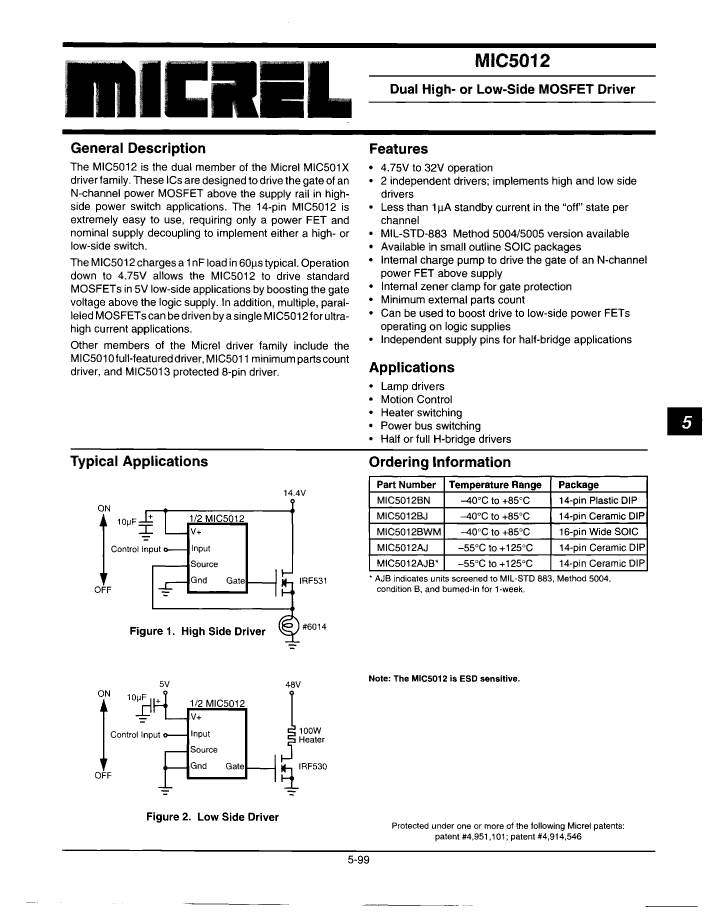

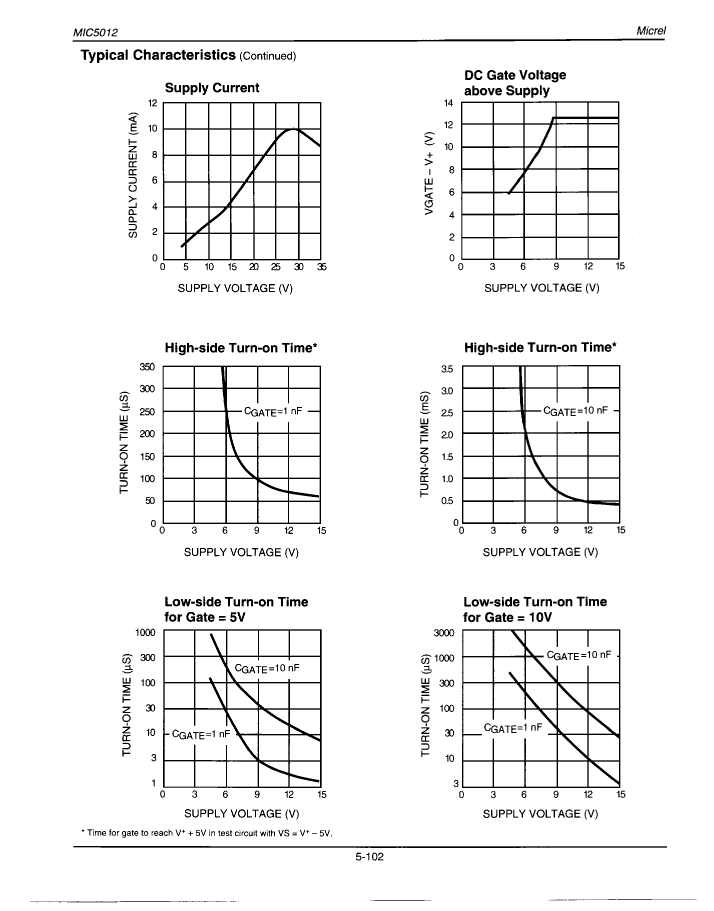

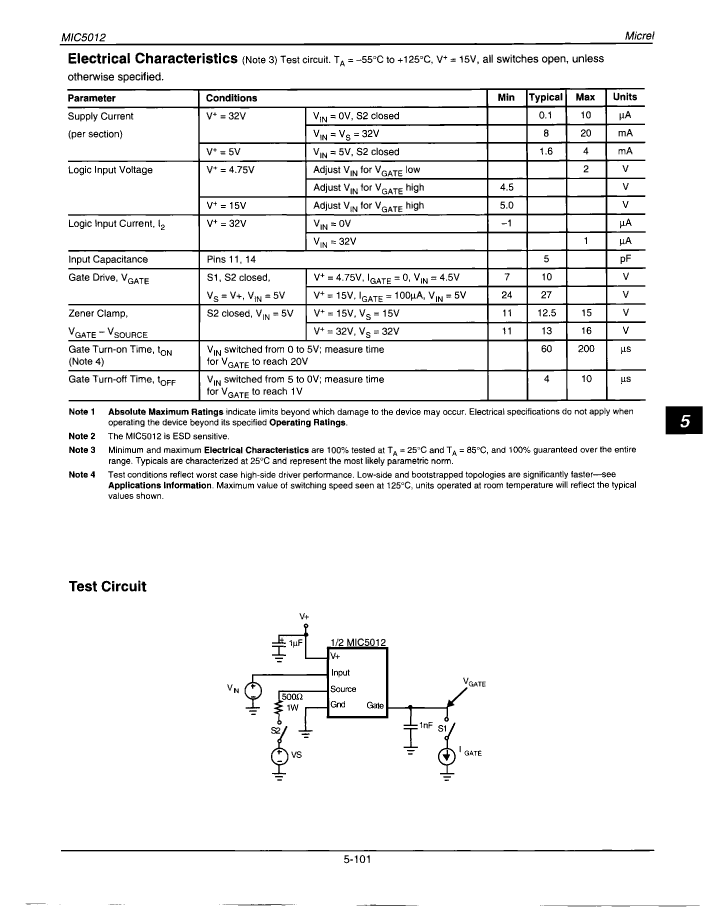

Buffer/Inverter Based MOSFET Driver, CMOS, CDIP14, CERAMIC, DIP-14
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| high side driver | YES |
| Input properties | STANDARD |
| Interface integrated circuit type | BUFFER OR INVERTER BASED MOSFET DRIVER |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| length | 19.304 mm |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | TOTEM-POLE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 15 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 40 mA |
| Maximum supply voltage | 32 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 15 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Disconnect time | 10 µs |
| connection time | 200 µs |
| width | 7.62 mm |
| Base Number Matches | 1 |
| MIC5012AJB | 5962-9313902MCA | MIC5012AJ | MIC5012BJ | |
|---|---|---|---|---|
| Description | Buffer/Inverter Based MOSFET Driver, CMOS, CDIP14, CERAMIC, DIP-14 | Buffer/Inverter Based MOSFET Driver, CMOS, CDIP14 | Buffer/Inverter Based MOSFET Driver, CMOS, CDIP14, CERAMIC, DIP-14 | Buffer/Inverter Based MOSFET Driver, CMOS, CDIP14, CERAMIC, DIP-14 |
| package instruction | DIP, DIP14,.3 | DIP, | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Reach Compliance Code | compliant | unknown | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| high side driver | YES | YES | YES | YES |
| Interface integrated circuit type | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER |
| JESD-30 code | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Number of functions | 2 | 1 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -40 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage | 32 V | 32 V | 32 V | 32 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | TIN LEAD | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Disconnect time | 10 µs | 10 µs | 10 µs | 10 µs |
| connection time | 200 µs | 200 µs | 200 µs | 200 µs |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible |
| Parts packaging code | DIP | - | DIP | DIP |
| Contacts | 14 | - | 14 | 14 |
| Input properties | STANDARD | - | STANDARD | STANDARD |
| length | 19.304 mm | - | 19.304 mm | 19.304 mm |
| Output characteristics | TOTEM-POLE | - | TOTEM-POLE | TOTEM-POLE |
| Output polarity | TRUE | - | TRUE | TRUE |
| Encapsulate equivalent code | DIP14,.3 | - | DIP14,.3 | DIP14,.3 |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 15 V | - | 15 V | 15 V |
| Maximum seat height | 5.08 mm | - | 5.08 mm | 5.08 mm |
| Maximum slew rate | 40 mA | - | 40 mA | 40 mA |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 2.54 mm |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | - | 7.62 mm | 7.62 mm |
