SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD1547
DESCRIPTION
·With TO-3P(H)IS package
·High voltage ,high speed
·Low collector saturation voltage
APPLICATIONS
·Color TV horizontal output applications
·Switching regulator output applications
PINNING
PIN
1
2
3
DESCRIPTION
Base
Collector
Emitter

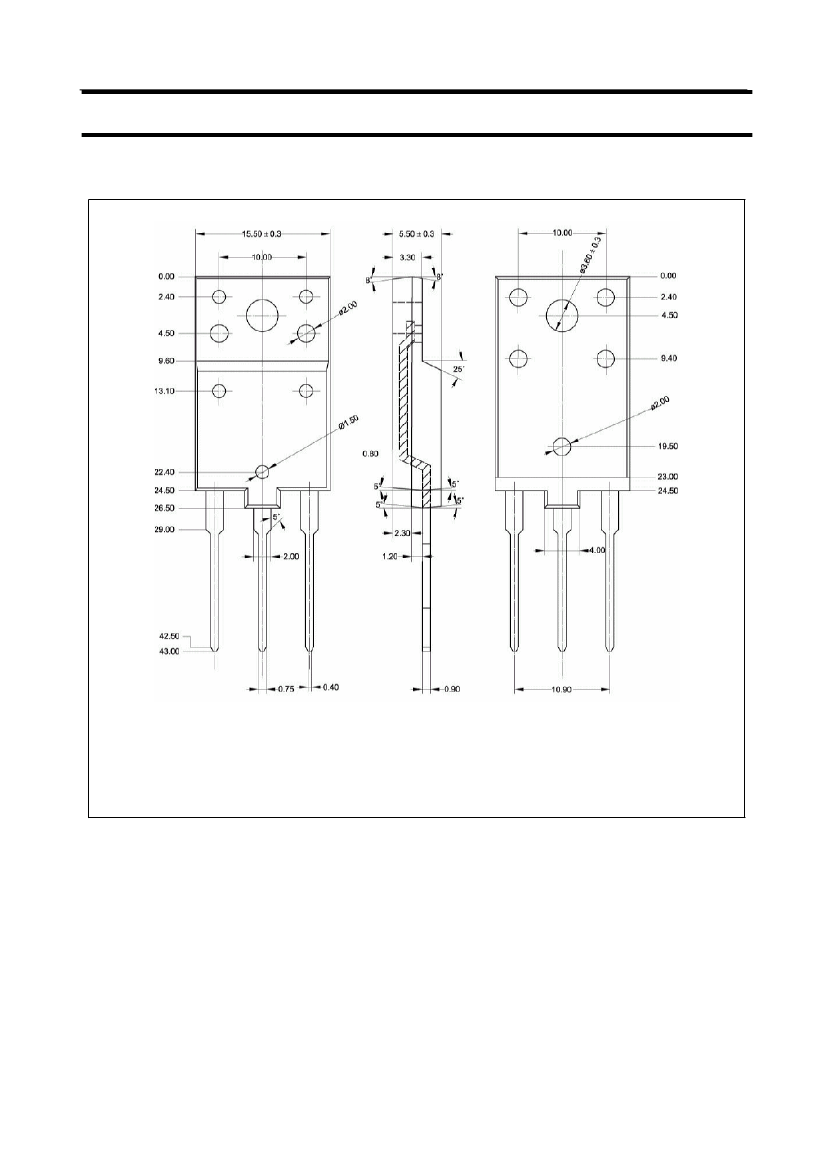

Fig.1 simplified outline (TO-3P(H)IS) and symbol
Absolute maximum ratings (Ta=25 )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
1500
600
5
7
3.5
50
150
-55~150
UNIT
V
V
V
A
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
CONDITIONS
MIN
2SD1547
SYMBOL
TYP.
MAX
UNIT
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
f
T
C
OB
Collector-emitter saturation voltage
I
C
=6A ;I
B
=1.2A
I
C
=6A ;I
B
=1.2A
V
CB
=500V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=1A ; V
CE
=5V
I
C
=0.1A ; V
CE
=10V
I
E
=0 ; V
CB
=10V;f=1MHz
8
3.0
5.0
V
Base-emitter saturation voltage
1.5
V
Collector cut-off current
10
µA
Emitter cut-off current
1
mA
DC current gain
20
Transition frequency
3
MHz
Collector output capacitance
165
pF
t
f
Fall time
I
CP
=6A ;I
B1
(end)
=1.2A
0.5
1.0
µs
2
