SOLC-145-02-L-Q-P datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SOLC-145-02-L-Q-P

Preview

SOLC-145-02-L-Q-P: DescriptionBoard Connector, 180 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Pin, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size198KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SOLC-145-02-L-Q-P Overview

Board Connector, 180 Contact(s), 4 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Pin, Black Insulator, Socket, ROHS COMPLIANT

SOLC-145-02-L-Q-P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	FOURRAY, TIGER BUY CONTACT
body width	0.25 inch
subject depth	0.16 inch
body length	2.35 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1054 mm
Plating thickness	10u inch
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	180
Base Number Matches	1

Preview

Download Datasheet

View All

F-217

SOLC–150–02–F–Q–A

SOLC–135–02–L–Q–LC

(1.27 mm) .050"

SOLC–125–02–L–Q–LC

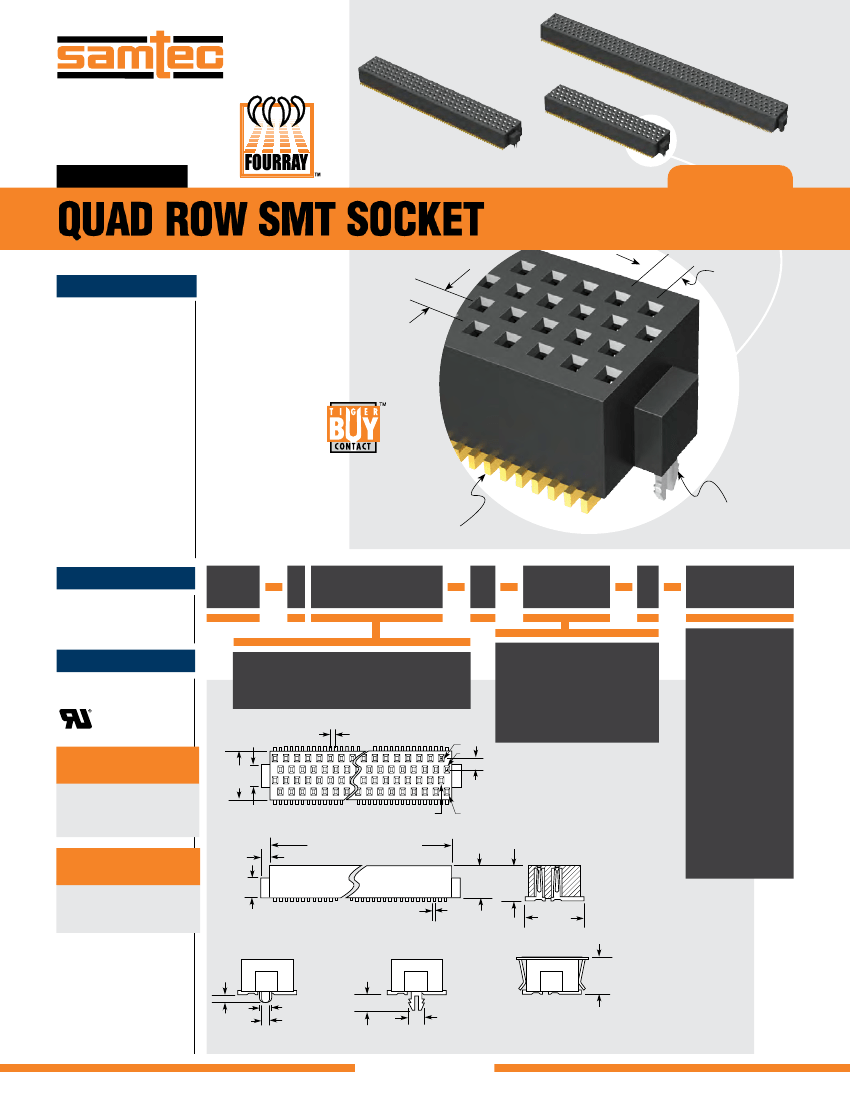

SOLC SERIES

QUAD ROW SMT SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?SOLC

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Current Rating:

2.4 A per pin

(6 adjacent pins powered)

Operating Temp Range:

-55 °C to +125 °C

Contact Resistance:

10 mW

Insertion Depth:

(1.68 mm) .066" to

(3.61 mm) .142" with

(0.38 mm) .015" wipe

Normal Force:

75 grams (0.74 N) average

Max Cycles:

100+

RoHS Compliant:

Yes

Mates with:

TOLC

(1.27 mm)

.050"

(1.27 mm)

.050"

Drop-in

replacement

for FOLC/MOLC

when mated

with TOLC

Surface

mount

Optional

locking clips

and alignment pins

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (05-35)

(0.15 mm) .006" max (40-50)

SOLC

1

NO. PINS

PER ROW

02

PLATING

OPTION

Q

OPTION

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

05, 10, 15, 20, 25,

30, 35, 40, 45, 50

(Standard sizes)

= Gold flash on contact,

Gold flash on tail

–F

–L

= Alignment Pin

(N/A with -LC)

–A

(2.54)

.100

(6.35)

.250

(0.635)

.025

= 10 µ" (0.25 µm) Gold on contact,

Gold flash on tail

OTHER

SOLUTIONS

• For Micro Rugged,

see the MOLC/FOLC

pages located in the

Tiger Eye™ section.

A1

B1

(1.27)

.050

TYP

D1

= Locking Clip

(N/A with -A)

(Manual placement

required)

–LC

= (7.00 mm) .276" DIA

Polyimide film

Pick & Place Pad

–K

–P

C1

(1.02)

.040

TYP

(2)

No. of positions x (1.27).050

+ (0.51) .020

= Pick & Place Pad

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

Contact Samtec.

(4.06) (4.62)

.160 .182

(0.25)

.010

= Tape & Reel

–TR

(2.54)

.100

(7.11)

.280

(0.76)

.030

(1.27)

.050

(1.40)

.055

(1.42)

.056

–LC OPTION

–P OPTION

(4.93)

.194

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0.89)

.035

–A OPTION

WWW.SAMTEC.COM

Due to technical progress, all designs, specifications and components are subject to change without notice.
