CNC34JTN164 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CNC34JTN164

CNC34JTN164: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.0625W, 160000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE; CategoryPassive components The resistor; File Size733KB，9 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

CNC34JTN164 Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.0625W, 160000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE

CNC34JTN164 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
The first element resistor	160000 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	4
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.5 mm

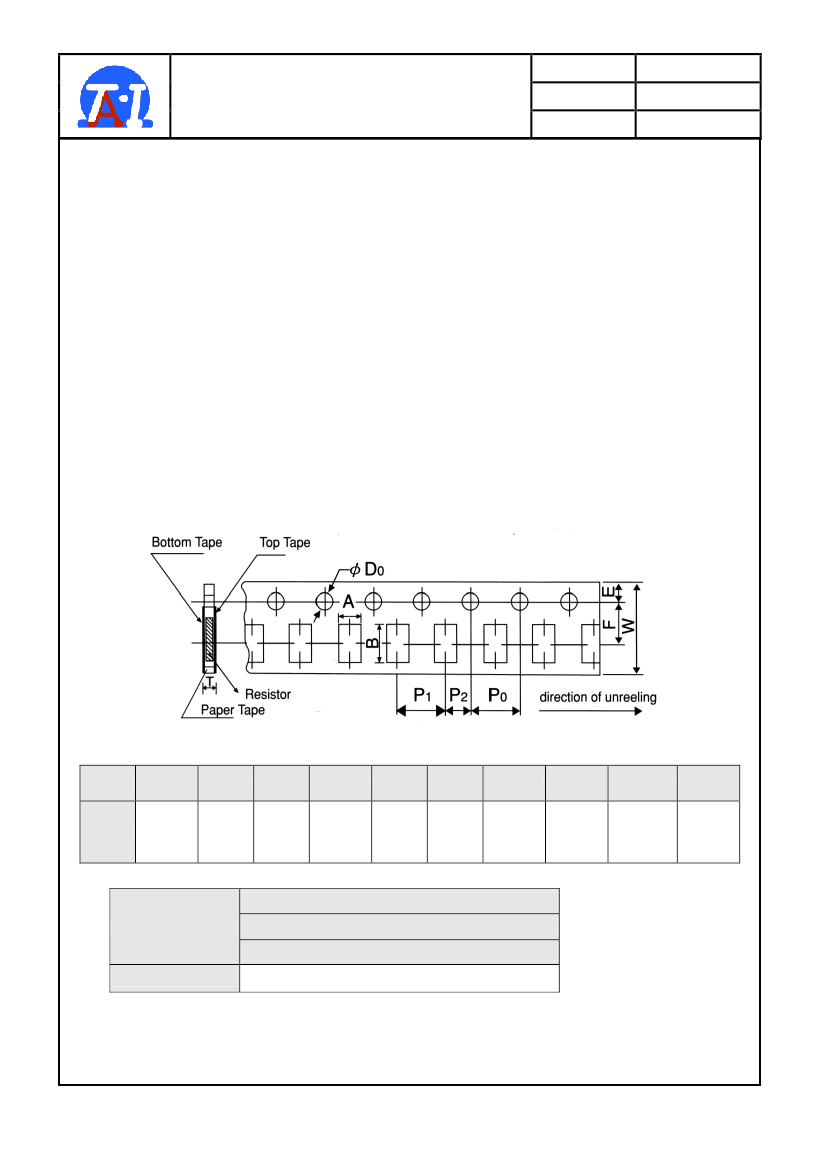

method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.0625 W
Rated temperature	70 °C
resistance	160000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	1206
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

Thick Film Chip Resistor Arrays

( Lead-Free for CNC34 Concave Type )

1. Scope :

Document No

TCNC-340S003D

Revised Date

page number

2011/04/20

This specification applies for the CNC34 Concave Type of thick film chip resistor arrays made by TA-I.

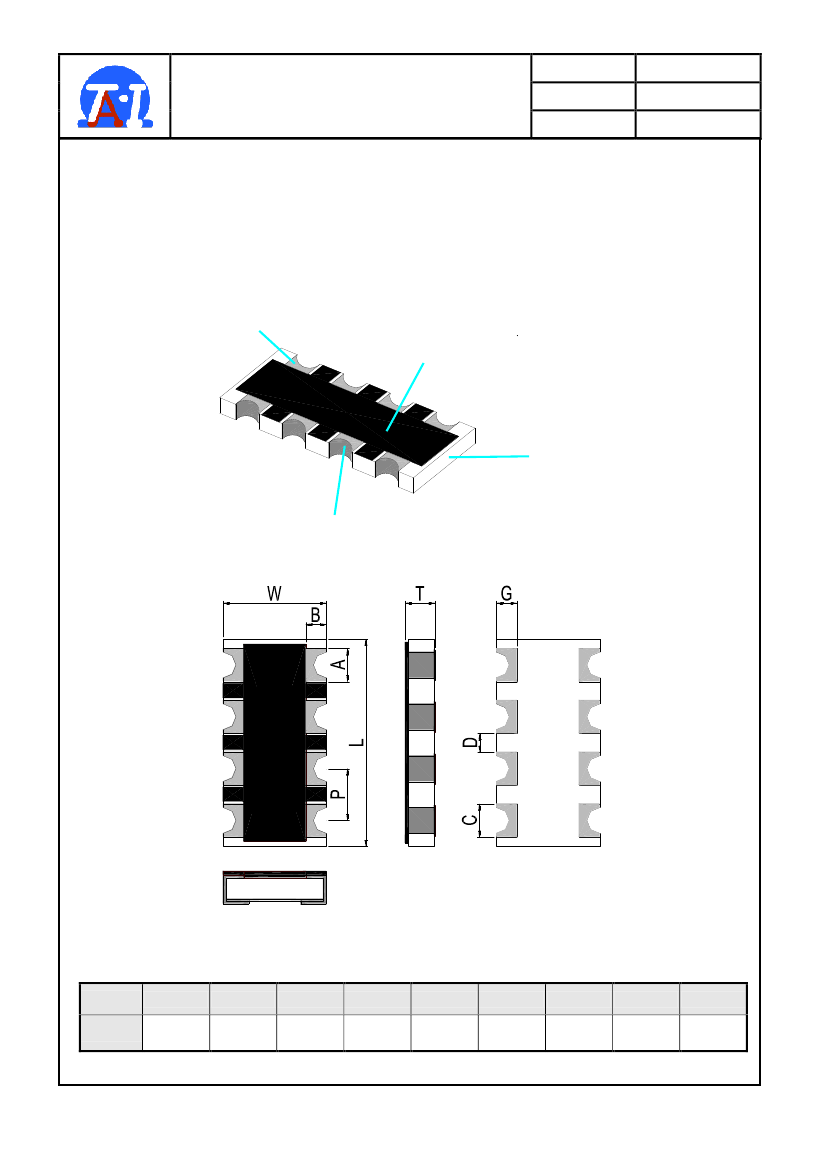

Construction , Dimensions , Schematic :

2.1

Construction :

Plating

Ni + Sn

Over Coat

Ceramic Substrate

Conductor

2.1.1 Chip Resistor Arrays :

102

2.2

Type

CNC34

Dimension :

UNIT:mm

3.2±0.2

1.5±0.2

0.55±0.1

0.8±0.1

0.6±0.1

0.3±0.2

0.5±0.1

0.25±0.1 0.35±0.15

TA-I TECHNOLOGY CO., LTD
