SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC1580
DESCRIPTION
·With TO-3 package
·High voltage ,high speed
APPLICATIONS
·Converters
·
Inverters
·
Switching regulators
·
Motor controls
PINNING (See Fig.2)
PIN
1
2
3
Base
Emitter
Collector
Fig.1 simplified outline (TO-3) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
T
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-Peak
Total power dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
MAX
600
500
7
15
30
150
200
-65~200
UNIT
V
V
V
A
A
W
THERMAL CHARACTERISTICS
SYMBOL
R
th j-mb
PARAMETER
Thermal resistance from junction to mounting base
VALUE
1.0
UNIT
/W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Transition frequency
CONDITIONS
I
C
=10mA ; I
B
=0
I
E
=1mA ; I
C
=0
I
C
=10A; I
B
=2A
I
C
=10A; I
B
=2A
V
CB
=600V; I
E
=0
V
EB
=7V; I
C
=0
I
C
=5A ; V
CE
=4V
I
C
=0.5A ; V
CE
=10V
10
MIN
500
7
2SC1580
SYMBOL
V
(BR)CEO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
f
T
TYP.
MAX
UNIT
V
V
1.5
2.0
0.1
0.1
25
5
V
V
mA
mA
MHz
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC1580

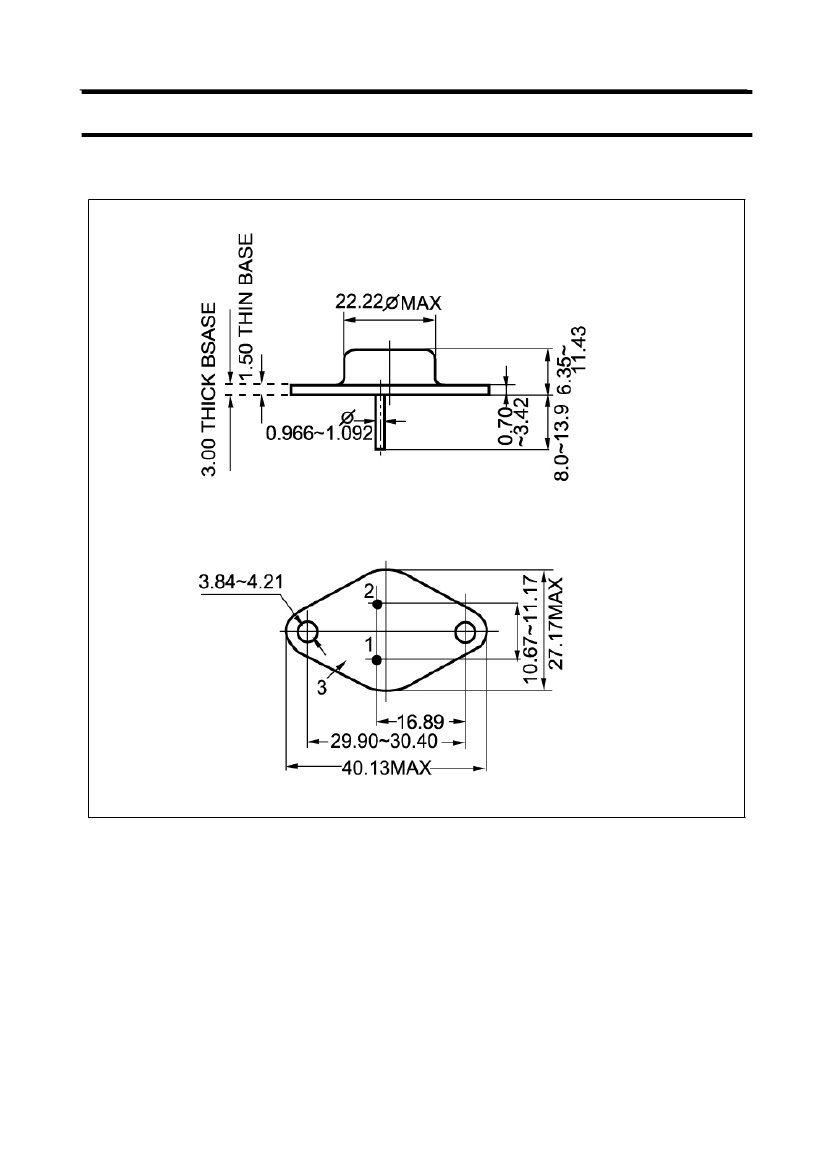

Fig.2 Outline dimensions
3
