2SC2793

Description
Silicon NPN Power Transistors
File Size115KB,3 Pages
ManufacturerSAVANTIC
Websitehttp://www.svntc.com/
Download Datasheet Compare View All

2SC2793 Overview

Silicon NPN Power Transistors

Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3949
DESCRIPTION
・With
TO-3PML package
・High
voltage ,high speed
APPLICATIONS
・For
TV horizontal output and power
switching applications
PINNING
PIN
1
2
3
Base
Collector
Emitter

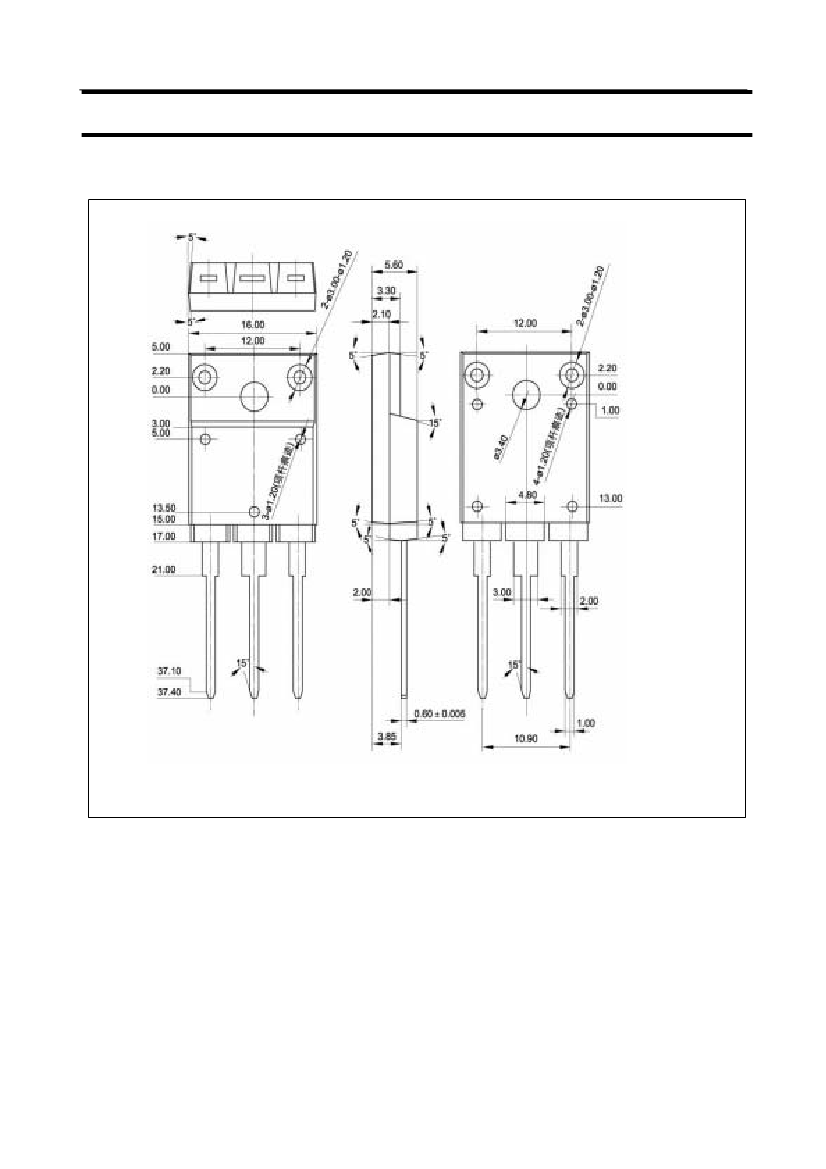

Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
固电
PARAMETER
Collector-base voltage
导½
HA
INC
Collector current
Collector dissipation
Collector-emitter voltage
Emitter-base voltage
ES
NG
Open emitter
Open base
MIC
E
CONDITIONS
OR
CT
NDU
O
MAX
850
500
7
15
UNIT
V
V
V
A
W
Open collector
T
C
=25℃
80
150
-55~150
Junction temperature
Storage temperature
