SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC2934
DESCRIPTION
·With TO-126 package
·High V
CEO
·Low C
OB
APPLICATIONS
·For TV video output amplification

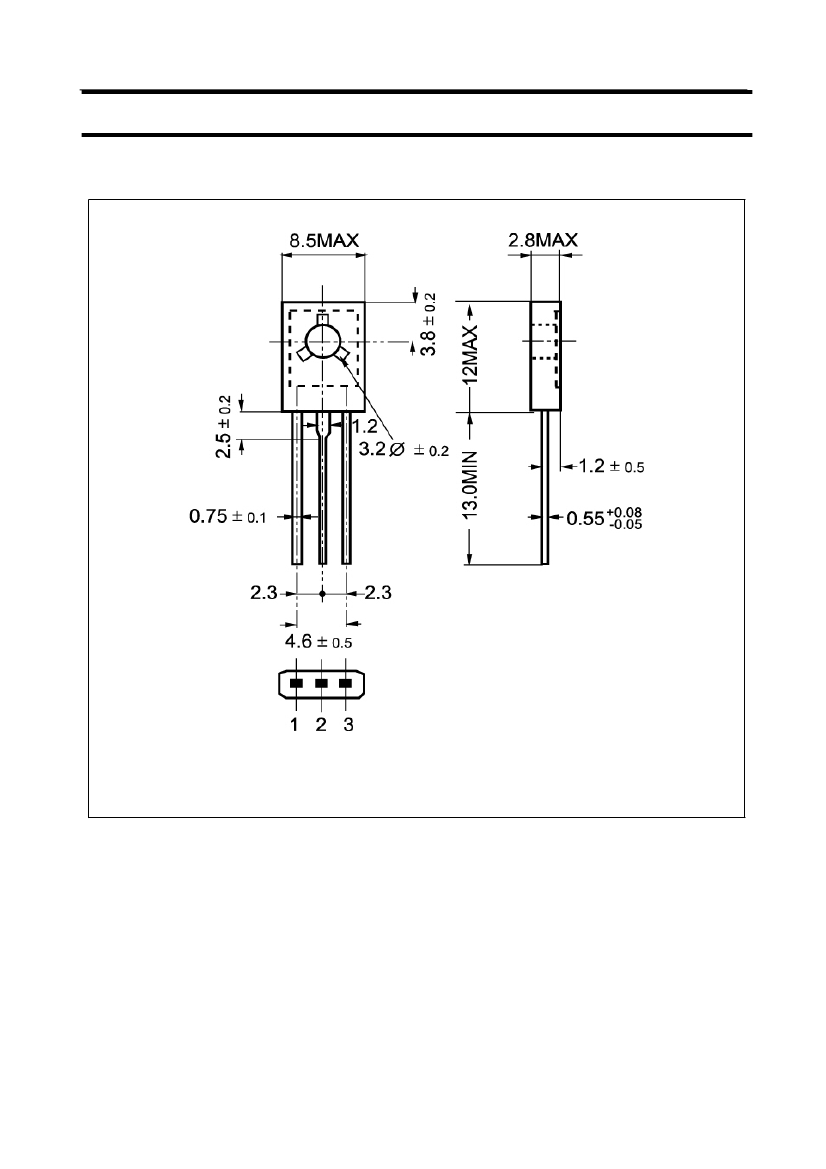

PINNING see Fig.2
PIN
1
2
3
DESCRIPTION
Emitter
Collector
Base
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
300
300
7
0.2
12.5
150
-55~150
UNIT
V
V
V
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter saturation voltage
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Transition frequency
CONDITIONS
I
C
=50mA ;I
B
=5m A
I
C
=10µA;I
E
=0
I
C
=100µA; I
B
=0
I
E
=10µA; I
C
=0
V
CB
=200V;I
E
=0
V
EB
=5V; I
C
=0
I
C
=50mA ; V
CE
=10V
I
C
=20mA ; V
CE
=20V
50
300
300
7
MIN
2SC2934
SYMBOL
V
CEsat
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
f
T
TYP.
MAX
1.5
UNIT
V
V
V
V
0.1
0.1
300
80
µA
µA
MHz
2
