2SC2970 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 2SC2970

2SC2970: Description1.5 A, 45 V, NPN, Si, POWER TRANSISTOR, TO-126; Categorysemiconductor Discrete semiconductor; File Size108KB，3 Pages; ManufacturerSAVANTIC; Websitehttp://www.svntc.com/

Download Datasheet Parametric Compare View All

2SC2970 Overview

1.5 A, 45 V, NPN, Si, POWER TRANSISTOR, TO-126

2SC2970 Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	NPN
Maximum collector current	1.5 A
Maximum Collector-Emitter Voltage	45 V

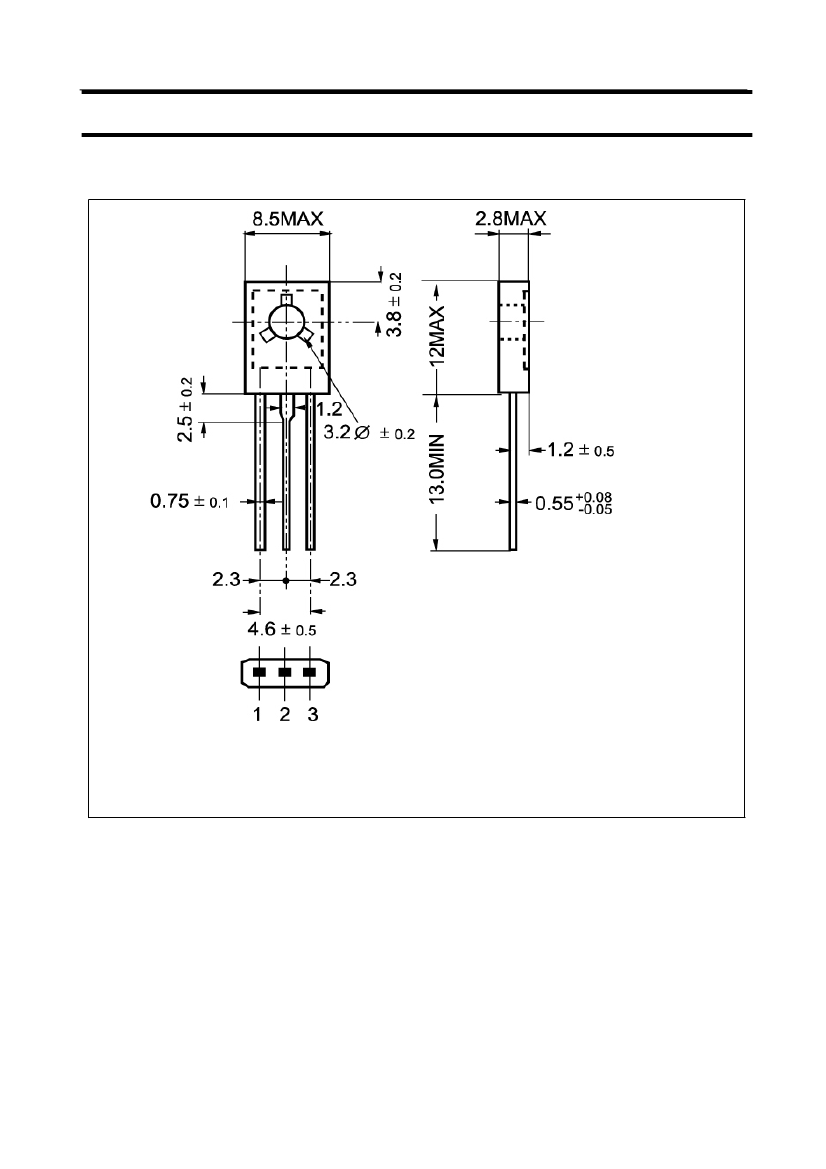

Processing package description	TO-126, 3 PIN
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	FLANGE MOUNT
Terminal form	THROUGH-HOLE
terminal coating	TIN LEAD
Terminal location	SINGLE
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Shell connection	COLLECTOR
Number of components	1
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum ambient power consumption	1.25 W
Transistor type	GENERAL PURPOSE POWER
Minimum DC amplification factor	25
Rated crossover frequency	190 MHz

Preview

Download Datasheet

View All

SavantIC Semiconductor

Product Specification

Silicon NPN Power Transistors

DESCRIPTION

·With TO-126 package

·High current

·Complement to type BD136/138/140

APPLICATIONS

·Driver stages in high-fidelity amplifiers

and television circuits

PINNING

Emitter

Collector;connected to

mounting base

Base

DESCRIPTION

BD135 BD137 BD139

Absolute maximum ratings (Ta=25

)

SYMBOL

PARAMETER

BD135

CBO

Collector-base voltage

BD137

BD139

BD135

CEO

Collector-emitter voltage

BD137

BD139

EBO

stg

amb

Emitter -base voltage

Collector current (DC)

Collector current-Peak

Base current-Peak

Total power dissipation

Junction temperature

Storage temperature

Operating ambient temperature

670

Open collector

Open base

Open emitter

CONDITIONS

VALUE

100

1.5

150

-65~150

UNIT

THERMAL CHARACTERISTICS

SYMBOL

th j-a

th j-mb

PARAMETER

Thermal resistance from junction to ambient

Thermal resistance from junction to mounting base

VALUE

100

UNIT

K/W
