SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3296
DESCRIPTION
·With TO-220Fa package
·Wide area of safe operation
·Complement to type 2SA1304
APPLICATIONS
·Power amplifier applications
·Vertical output applications
PINNING
PIN
1
2
3
DESCRIPTION
Base
Collector
Emitter
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
B
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
T
a
=25
P
C
Collector power dissipation
T
C
=25
T
j
T
stg
Junction temperature
Storage temperature
20
150
-55~150
CONDITIONS
Open emitter
Open base
Open collector
VALUE
150
150
5
1.5
0.5
2
W
UNIT
V
V
V
A
A
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Base-emitter on voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Output capacitance
Transition frequency
CONDITIONS
I
C
=10mA , I
B
=0
I
C
=0.5A ;I
B
=50mA
I
C
=0.5A ; V
CE
=10V
V
CB
=120V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=0.5A ; V
CE
=10V
I
E
=0 ; V
CB
=10V;f=1MHz
I
C
=0.5A ; V
CE
=10V
40
MIN
150
2SC3296
SYMBOL
V
(BR)CEO
V
CEsat
V
BE
I
CBO
I
EBO
h
FE
C
OB
f
T
TYP.
MAX
UNIT
V
1.5
0.85
10
10
140
35
4
V
V
µA
µA
pF
MHz
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

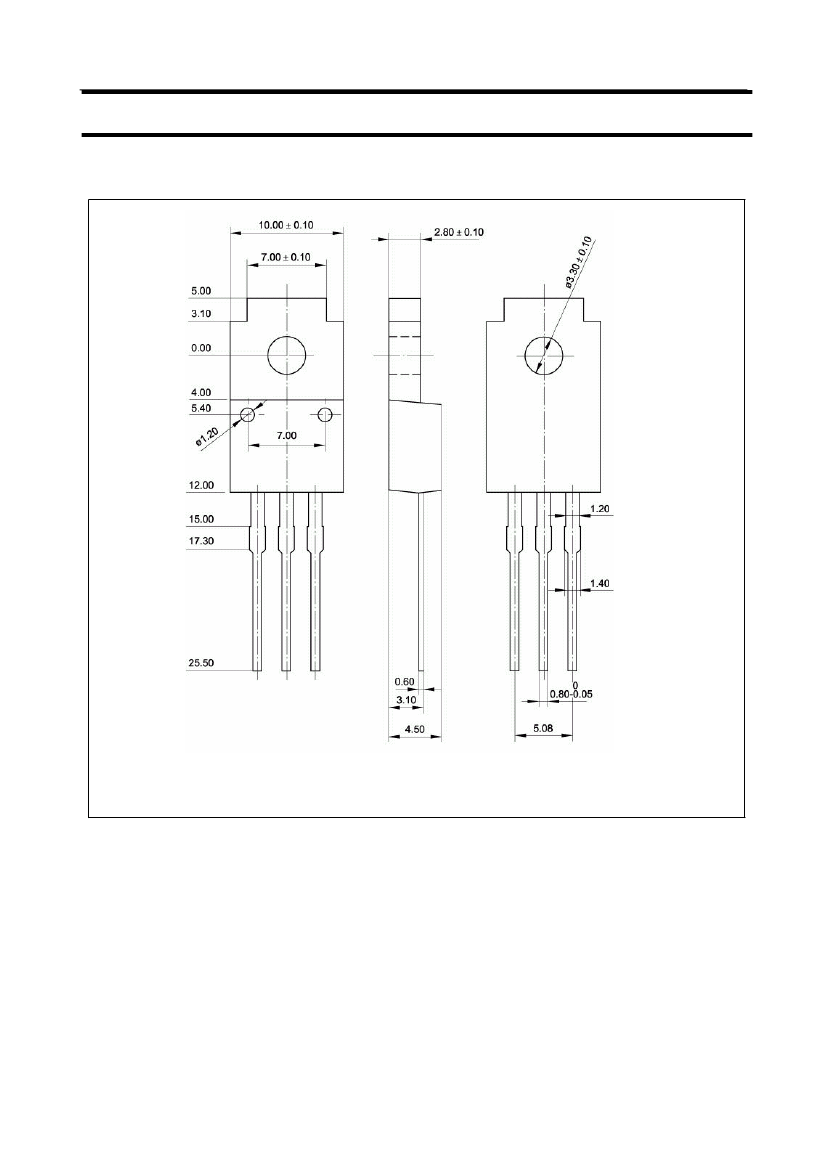

PACKAGE OUTLINE
2SC3296
Fig.2 Outline dimensions (unindicated tolerance:±0.15 mm)
3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3296
4
