2SC3746

Description
Silicon NPN Power Transistors
File Size251KB,4 Pages
ManufacturerSAVANTIC
Websitehttp://www.svntc.com/
Download Datasheet View All

2SC3746 Overview

Silicon NPN Power Transistors

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
DESCRIPTION
·With TO-220F package
·Complement to type 2SA1469
·Low saturation voltage
·Excellent current dependence of h
FE
·Short switching time
APPLICATIONS
·Various inductance of lamp drivers for
electronic equipment
·Inverters ,converters
·Switching regulator ,driver
PINNING
PIN
1
2
3
Base
Collector
Emitter
DESCRIPTION
2SC3746

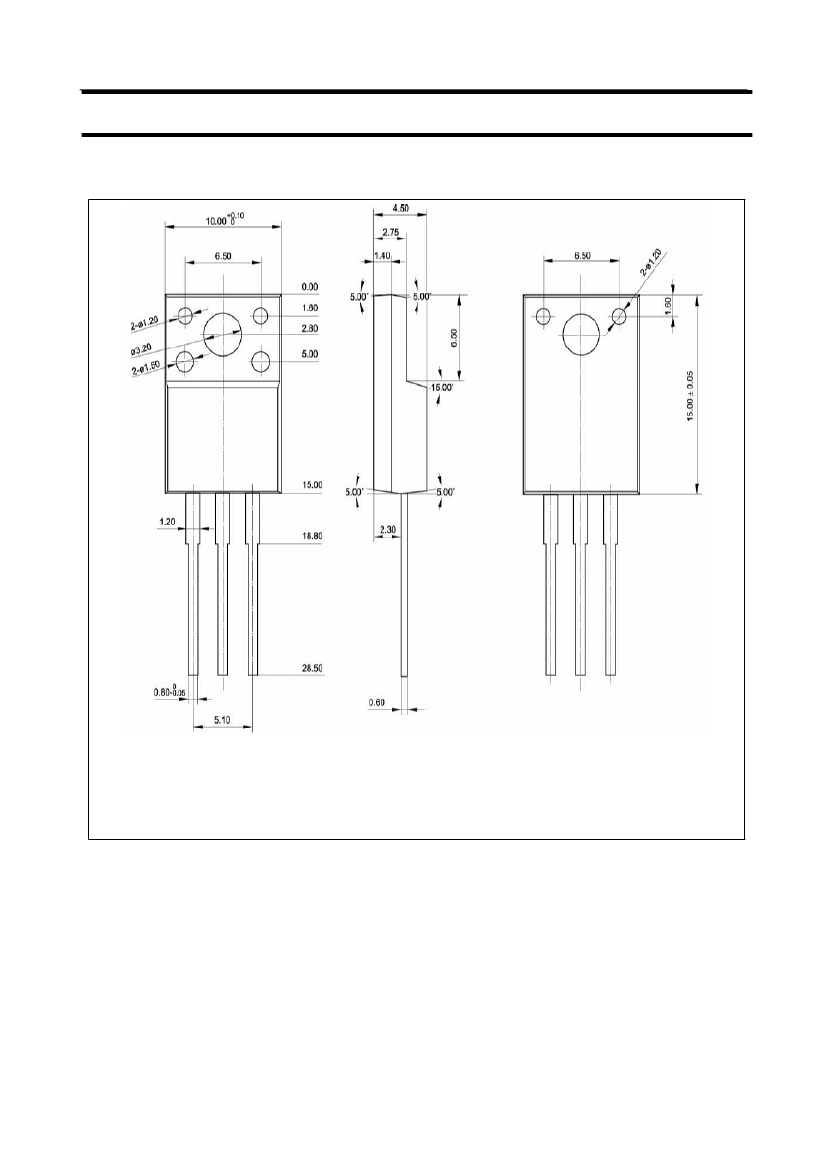

Fig.1 simplified outline (TO-220F) and symbol
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
T
a
=25
P
C
Collector dissipation
T
C
=25
T
j
T
stg
Junction temperature
Storage temperature
20
150
-55~150
CONDITIONS
Open emitter
Open base
Open collector
VALUE
80
60
5
5
7
2
W
UNIT
V
V
V
A
A
