SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3842
DESCRIPTION
·With TO-3PML package
·High voltage ,high speed
·High current capability
APPLICATIONS
·For use in TV horizontal output and
Power switching applications
PINNING
PIN
1
2
3
Base
Collector
Emitter
Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
MAX
600
400
6
10
70
150
-55~150
UNIT
V
V
V
A
W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
CONDITIONS
MIN
2SC3842
SYMBOL
TYP.
MAX
UNIT
V
(BR)CEO
Collector-emitter breakdown voltage
I
C
=5mA ;I
B
=0
400
V
V
(BR)CBO
Collector-base breakdown voltage
I
C
=1mA ;I
E
=0
600
V
V
(BR)EBO
Emitter-base breakdown voltage
I
E
=1mA ;I
C
=0
6
V
V
CEsat
Collector-emitter saturation voltage
I
C
=5A ;I
B
=1A
1.0
V
V
BEsat
Base-emitter saturation voltage
I
C
=5A ;I
B
=1A
1.5
V
I
CBO
Collector cut-off current
V
CB
=500V ;I
E
=0
100
µA
I
EBO
Emitter cut-off current
V
EB
=5V; I
C
=0
100
µA
h
FE
DC current gain
I
C
=5A ; V
CE
=5V
10
40
f
T
Transition frequency
I
C
=1A ; V
CE
=10V
32
MHz
C
OB
Output capacitance
I
E
=0 ; V
CB
=10V ;f=1MHz
100
pF
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

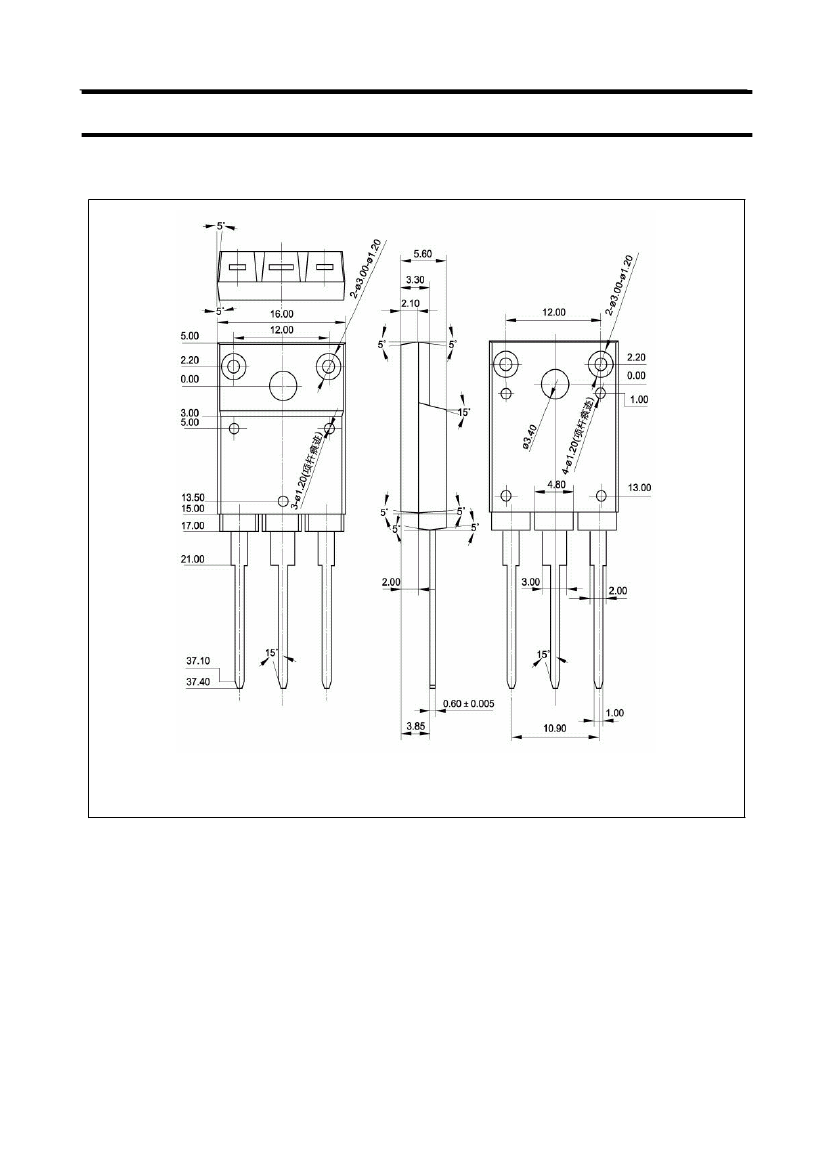

PACKAGE OUTLINE
2SC3842
Fig.2 outline dimensions
3
