SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3894
DESCRIPTION
·With TO-3PML package
·High speed
·High breakdown voltage
·High reliability
APPLICATIONS
·Ultrahigh-definition CRT display
horizontal deflection output applications
PINNING
PIN
1
2
3
Base
Collector
Emitter
Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
Ta=25
Collector dissipation
T
C
=25
Junction temperature
Storage temperature
60
150
-55~150
CONDITIONS
Open emitter
Open base
Open collector
MAX
1500
800
6
6
16
3.0
W
UNIT
V
V
V
A
A
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter sustaining voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Collector cut-off current
DC current gain
DC current gain
CONDITIONS
I
C
=0.1A ;I
B
=0
I
C
=4A ;I
B
=1A
I
C
=4A ;I
B
=1A
V
CB
=800V ;I
E
=0
V
CE
=1500V; R
BE
=0
I
C
=1A ; V
CE
=5V
I
C
=4A ; V
CE
=5V
8
4
MIN
800
2SC3894
SYMBOL
V
CEO(SUS)
V
CEsat
V
BEsat
I
CBO
I
CES
h
FE-1
h
FE-2
TYP.
MAX
UNIT
V
5.0
1.5
10
1.0
V
V
µA
mA
8
Switching times
t
stg
t
f
Storage time
Fall time
3.0
0.1
0.2
µs
µs
I
C
=4A ; V
CC
=200V
I
B1
=0.8A; I
B2
=1.6A
R
L
=50?
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC3894

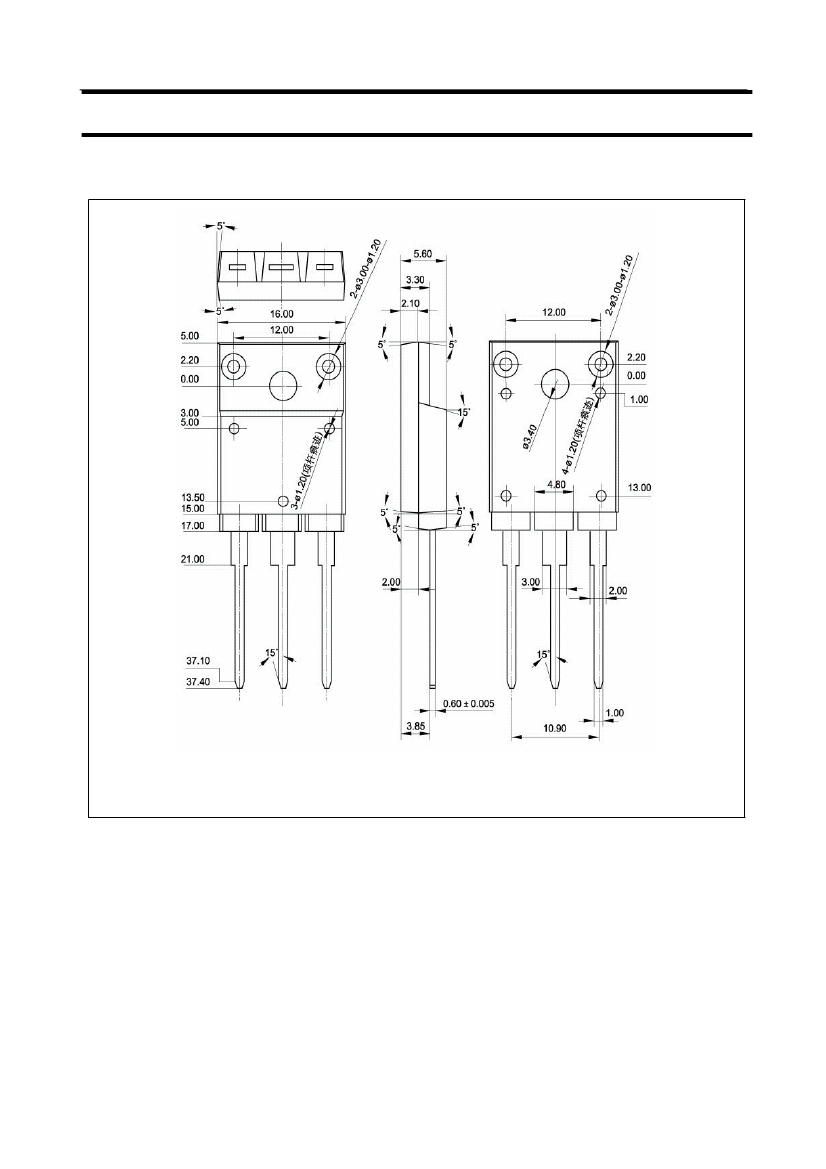

Fig.2 outline dimensions
3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

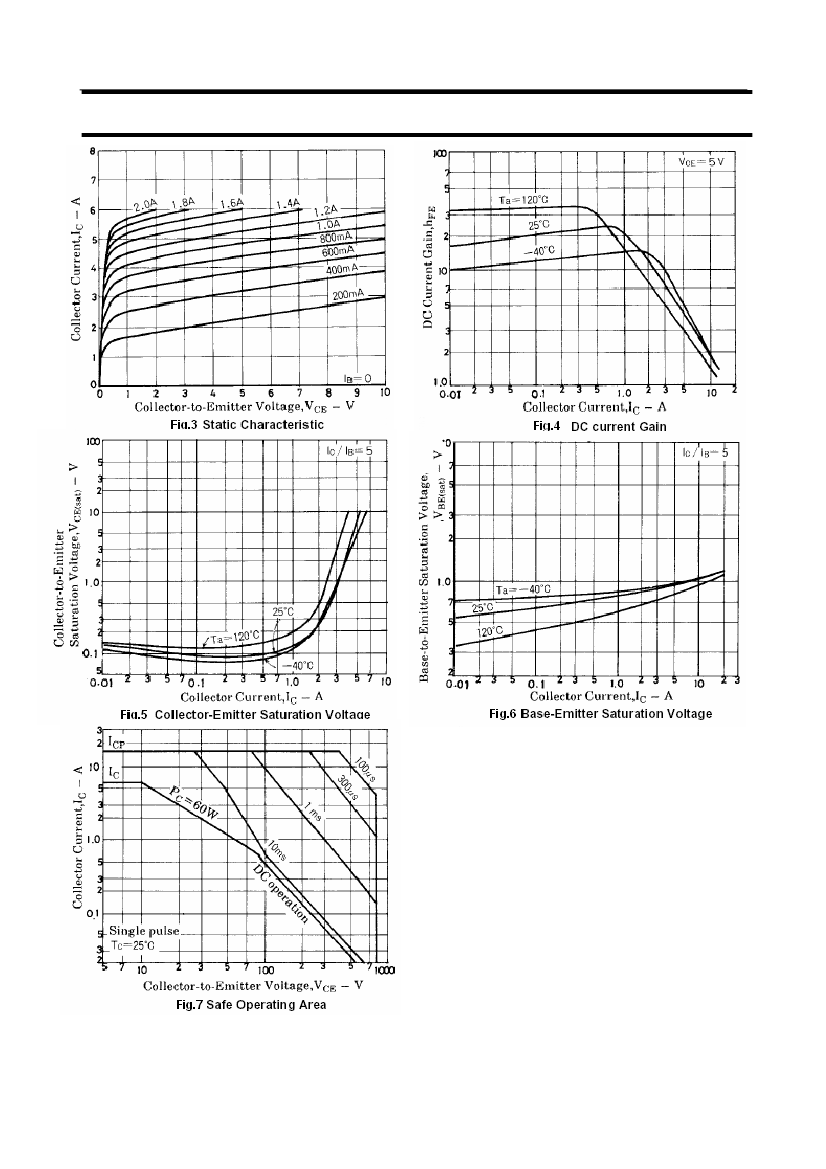

2SC3894
4
