MDP-4 Overview

Interconnection Device,

MDP-4 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Connector typeINTERCONNECTION DEVICE
Base Number Matches1

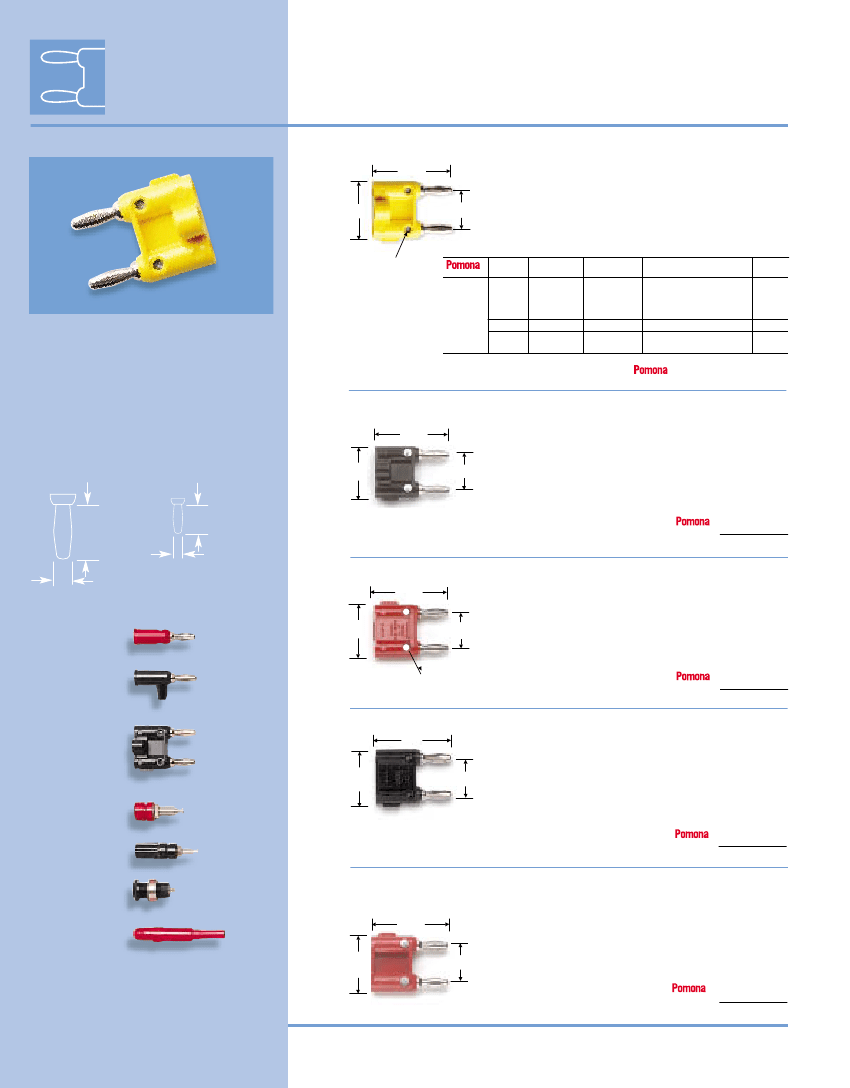

Banana Plugs and Jacks
1.55
STANDARD BANANA PLUGS
Set screws secure leads. Simplifies cable construction or
component mounting. Accepts cables to .215 dia. max.
MATERIAL: Banana Plug/Jack: Brass; Spring: Heat Treated
Beryllium Copper; Finish: Nickel Plating
RATING: 5000 VDC, 15 Amps, +50˚C (+122˚F)
(Model 4898, +150˚C (+302˚F) Max.)
DOUBLE BANANA PLUG WITH WIRE GUIDE
1.13
.75
x-hole ø .125
ACCESS
Model
MDP-*
4892-*
4898-*
Plating
Nickel
Gold
Nickel
Insulation
ABS
ABS
Polyphenylene
Sulfide
90505
The Pomona
®
name on Banana
Plugs and Jacks is your assur-
ance of quality components for
connecting test accessories or
making your own test sets.
*STD COLORS
-0 Black, -1 Brown, -2 Red
-3 Orange, -4 Yellow,
-5 Green, -6 Blue, -7 Violet
-8 Gray, -9 White
-0 Black, -2 Red
-0 Black, -6 Blue
PRICE
2.15
4.20
2.40
Model 4914 Replacement set screw
ACCESS
90171
DOUBLE BANANA PLUG WITH SOLDER TURRET TERMINALS
1.55
Similar to MDP above except with bright tin plated solder
turrets. Accepts cables to .215 dia. max.
MATERIAL: Banana Plug/Jack: Brass; Spring: Heat Treated
Beryllium Copper; Finish: Nickel Plating;
Insulation: Polypropylene
RATING: 5000 VDC, 15 Amps, +55˚C (+131˚F) Max.
COLOR: Black
ACCESS
Banana Plug Dimensions
.30
.56
.12
1.13
.75
90505
Model
MDP-ST
PRICE
3.00
DOUBLE BANANA PLUG WITH SHORTING BAR
.21
Standard
Solderless Stackup
Banana Plug
Solderless Stackup
Banana Plug w/Safety
Collar
Double Banana Plug
for Terminal Isolation
Miniature
1.13
1.55
.75
Banana plugs internally shorted with #18 AWG wire.
X-hole accepts standard banana plug.
MATERIAL: Banana Plug/Jack: Brass; Spring: Heat Treated
Beryllium Copper; Finish: Nickel Plating;
Insulation: ABS
RATING: 5000 VDC, 15 Amps, +50˚C (+122˚F) Max.
*STD COLORS: -0 blk, -2 red, -9 white
ACCESS
x-hole ø .166
90505
Model
MDP-S*
PRICE
3.50
DOUBLE BANANA PLUG, SOLDERLESS
1.55
Similar to MDP without cable loop.
Features recess for mounting small components with set screws.
Model 1330 has setscrews like MDP.
MATERIAL: Banana Plug/Jack: Brass; Spring: Heat Treated
Beryllium Copper; Finish: Nickel Plating;
Insulation: ABS
RATING: 5000 VDC, 15 Amps, +50˚C (+122˚F) Max.
*STD COLORS: -0 blk, -2 red
ACCESS
1.13
.75
Banana Jack
Standard Binding
Post
Sheathed Banana
Jack
Retractable Sheathed
Banana Plug
1.13
90504
Model
1330-*
PRICE
2.35
DOUBLE BANANA PLUG WITH SOLDER TURRET TERMINALS
Similar to Model 1330 above, but features bright tin
plated solder turrets.
MATERIAL: Banana Plug/Jack: Brass; Spring: Heat
Treated Beryllium Copper; Finish: Nickel
Plating; Insulation: Polypropylene
RATING: 5000 VDC, 15 Amps, +50˚C (+122˚F) Max.
*STD COLORS: -0 blk, -2 red
ACCESS
1.55
.75
90504
Model
PRICE
1330-ST-*
3.00
84
w w w. p o m o n a e l e c t r o n i c s . c o m
