SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2N6257
DESCRIPTION
·With TO-3 package
·Low collector saturation voltage
·Excellent safe operating area
APPLICATIONS
·Designed for audio amplifier and
switching circuits applications
PINNING
PIN
1
2
3
Base
Emitter
Collector
Fig.1 simplified outline (TO-3) and symbol
DESCRIPTION
Absolute maximum ratings(Ta=
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
D
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Total Power Dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
50
40
5
20
150
150
-65~200
UNIT
V
V
V
A
W
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal resistance junction to case
VALUE
0.875
UNIT
/W
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter sustaining voltage
Collector-emitter saturation voltge
Collector-emitter saturation voltge
Collector cut-off current
Collector cut-off current
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
Transition frequency
CONDITIONS
I
C
=0.2A ;I
B
=0
I
C
=8A ;I
B
=0.8A
I
C
=20A ;I
B
=4A
V
CE
=40V; I
B
=0
V
CE
=50V; V
BE(off)
=1.5V
T
C
=150
V
CB
=50V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=8A ; V
CE
=4V
I
C
=20A ; V
CE
=4V
I
C
=1A;V
CE
=10V
15
5
0.8
MIN
40
TYP.
2N6257
SYMBOL
V
CEO(SUS)
V
CEsat-1
V
CEsat-2
I
CEO
I
CEV
I
CBO
I
EBO
h
FE-1
h
FE-2
f
T
MAX
UNIT
V
1.5
4.0
1.0
0.1
5.0
0.1
0.1
75
V
V
mA
mA
mA
mA
MHz
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2N6257

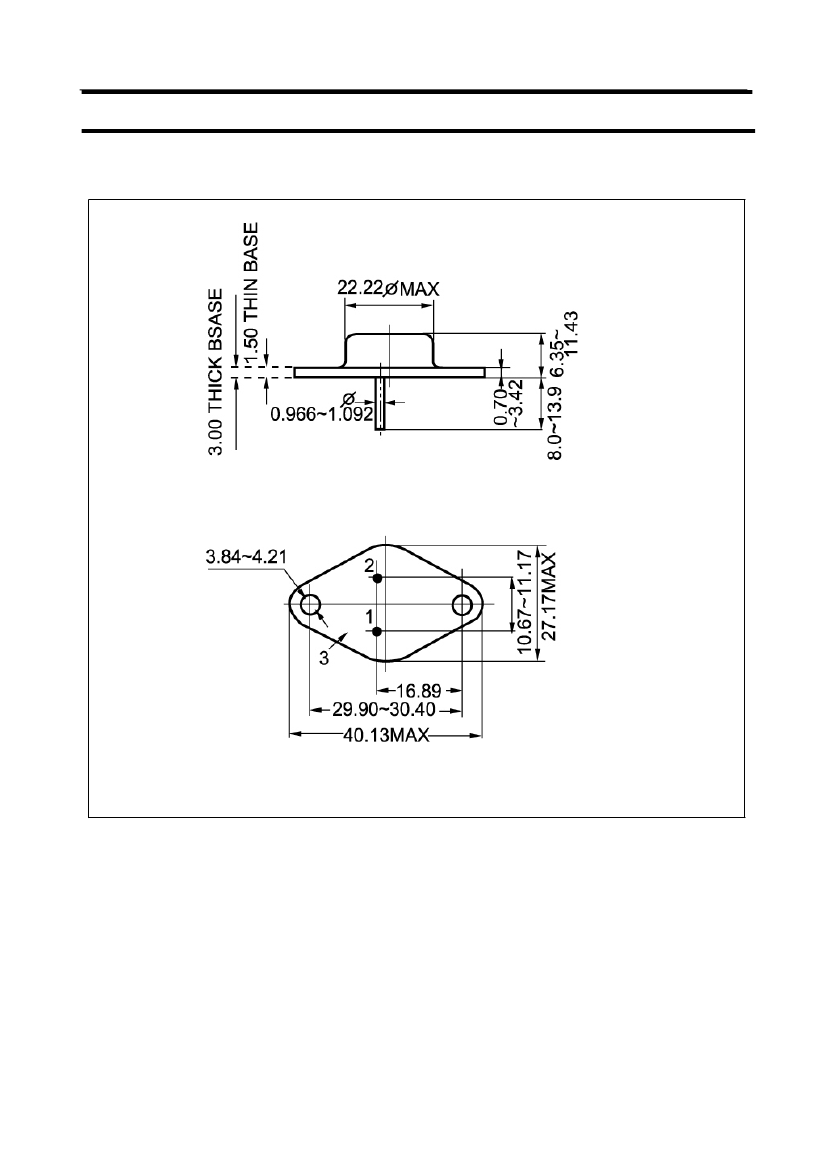

Fig.2 outline dimensions (unindicated tolerance:±0.10mm)
3
