TNC50-8201 datasheet, PDF - EEWORLD Datasheet

TNC50-8201: DescriptionRF TNC Connector, Female, Cable Mount, Jack; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

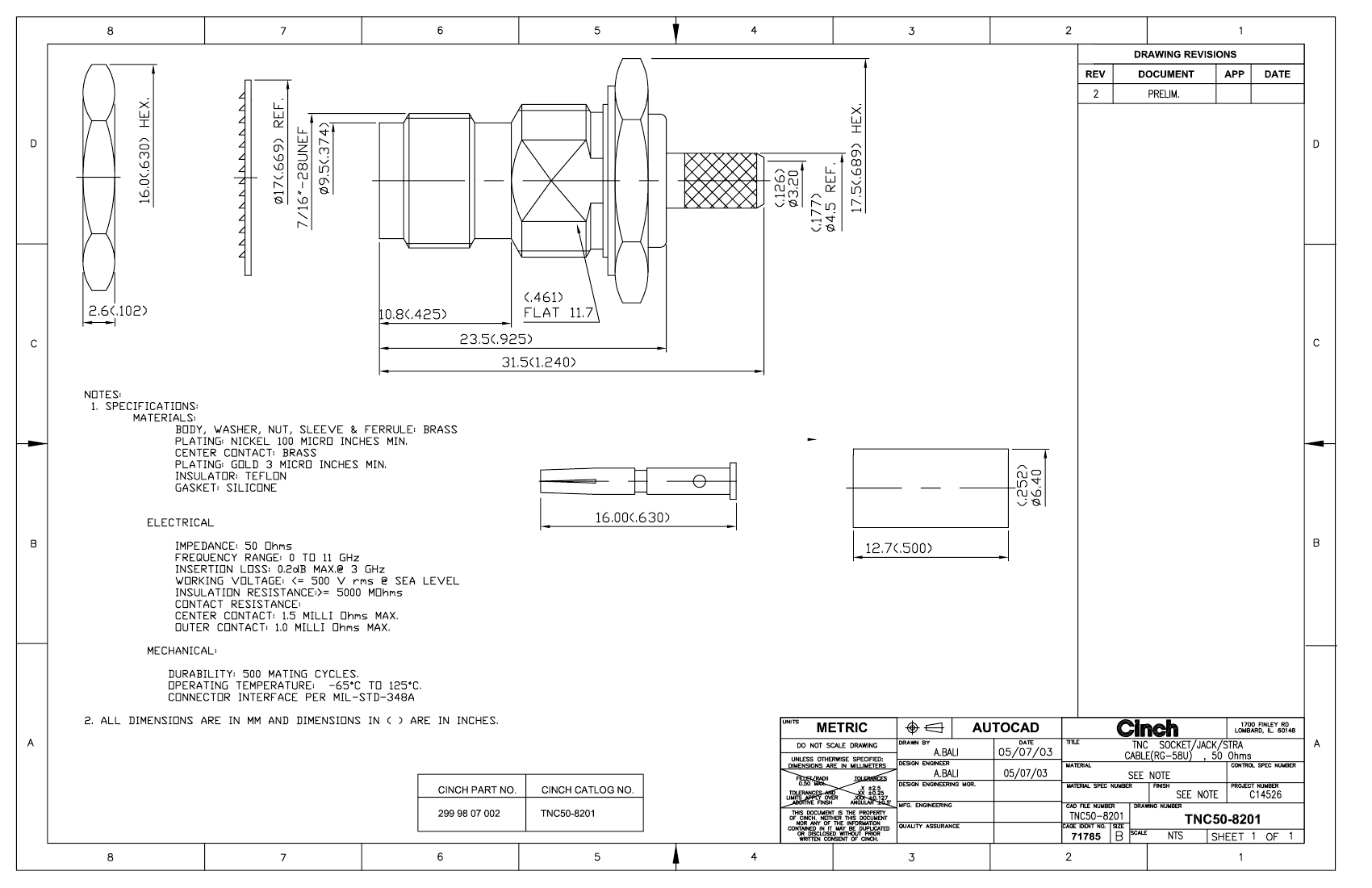

TNC50-8201 Overview

RF TNC Connector, Female, Cable Mount, Jack

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE: RG 58U, INSERTION LOSS MAX AT 3GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD (3)
Contact completed and terminated	GOLD (3)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	TNC50-8201
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

	TNC50-8201	2999807002
Description	RF TNC Connector, Female, Cable Mount, Jack	RF TNC Connector, Female, Cable Mount, Jack,
Reach Compliance Code	unknown	compli
Other features	APPLICABLE CABLE: RG 58U, INSERTION LOSS MAX AT 3GHZ	INSERTION LOSS MAX AT 1 GHZ, APPLICABLE CABLE: RG 58U
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR
Contact to complete cooperation	GOLD (3)	GOLD (3)
Contact completed and terminated	GOLD (3)	GOLD (3)
Contact point gender	FEMALE	FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.2 dB	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO
Manufacturer's serial number	TNC50-8201	2999807002
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Base Number Matches	1	1
