BU426AF

Description
Silicon NPN Power Transistors
File Size146KB,3 Pages
ManufacturerSAVANTIC
Websitehttp://www.svntc.com/
Download Datasheet View All

BU426AF Overview

Silicon NPN Power Transistors

SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
BU426AF
DESCRIPTION
·With TO-3PML package
·High voltage ,high speed
APPLICATIONS
·Intended for use in switching-mode color
TV supply systems
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter

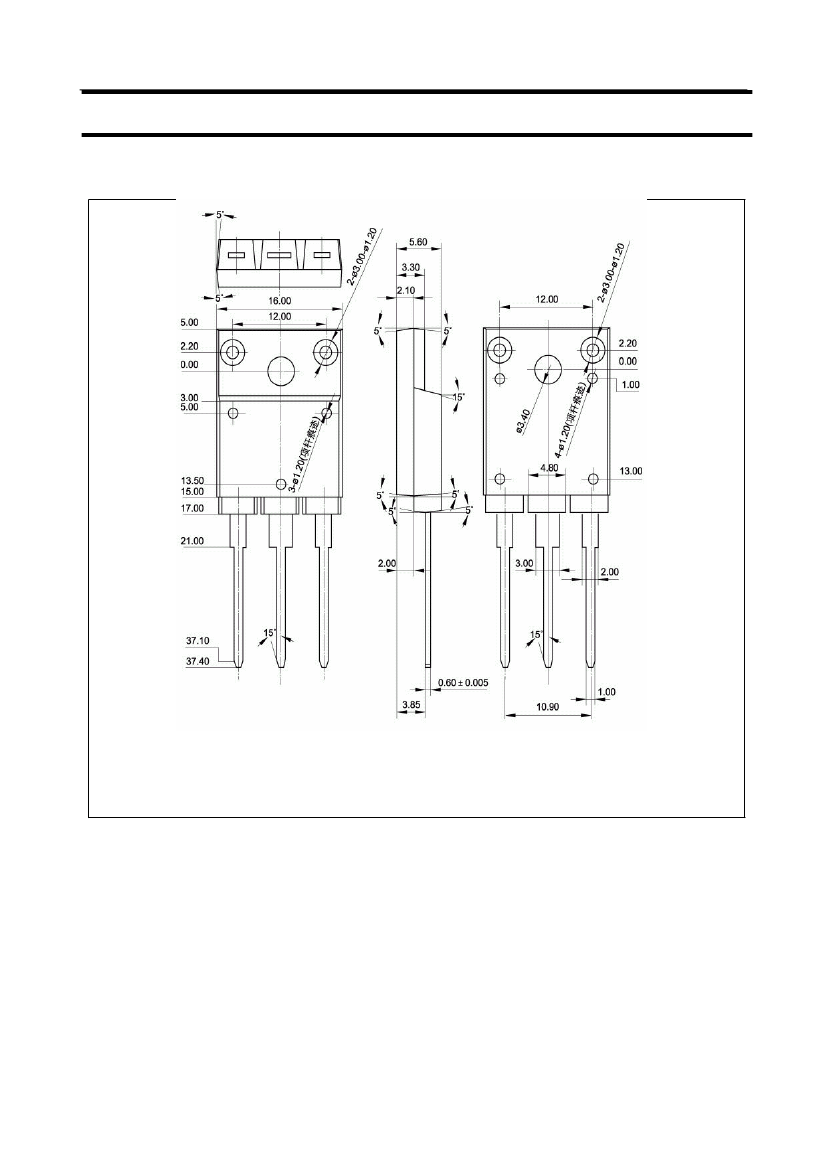

Fig.1 simplified outline (TO-3PML) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current (Pulse)
Base current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
CONDITIONS
Open emitter
Open base
Open collector
VALUE
900
400
10
6
8
3
65
150
-65~150
UNIT
V
V
V
A
A
A
W
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal resistance from junction to case
VALUE
2.08
UNIT
/W
