2SB1134: DescriptionSilicon PNP Power Transistors; File Size272KB，4 Pages; ManufacturerSAVANTIC; Websitehttp://www.svntc.com/

Download Datasheet View All

2SB1134 Overview

Silicon PNP Power Transistors

Preview

Download Datasheet

View All

SavantIC Semiconductor

Product Specification

Silicon PNP Power Transistors

DESCRIPTION

·With TO-220F package

·Complement to type 2SD1667

·Low collector saturation voltage

APPLICATIONS

·Relay drivers,high-speed inverters and other

general high-current switching applications

PINNING

Base

Collector

Emitter

DESCRIPTION

2SB1134

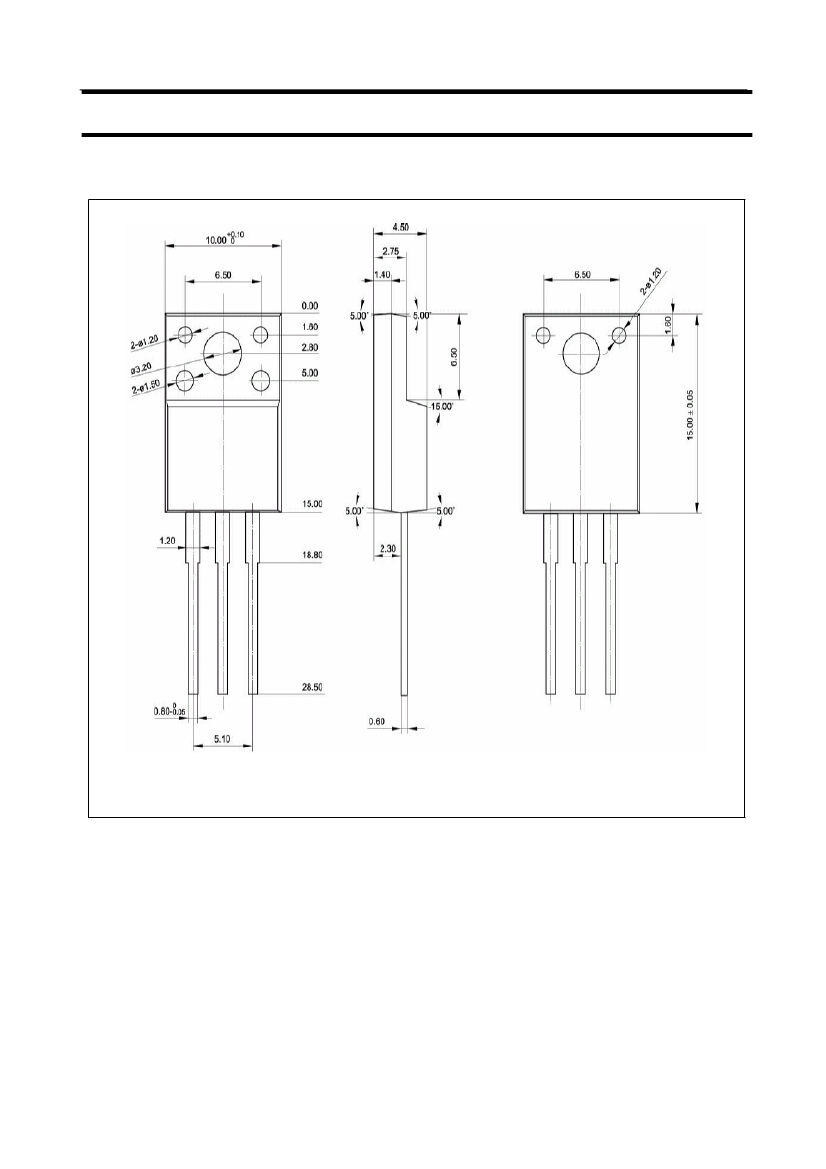

Fig.1 simplified outline (TO-220F) and symbol

Absolute maximum ratings (Ta=25

)

SYMBOL

CBO

CEO

EBO

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector current-peak

=25

Collector dissipation

=25

stg

Junction temperature

Storage temperature

150

-55~150

Open emitter

Open base

Open collector

CONDITIONS

MAX

-60

-50

-6

-5

-9

UNIT
