SavantIC Semiconductor
Product Specification
Silicon PNP Power Transistors
2SB855
DESCRIPTION
·With TO-220C package
·Low collector saturation voltage
APPLICATIONS
·Low frequency power amplifier
PINNING
PIN
1
2
3
DESCRIPTION
Emitter
Collector;connected to
mounting base
Base
Absolute maximum ratings(Tc=25 )
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25
Open emitter
Open base
Open collector
CONDITIONS
VALUE
-50
-50
-4
-2
20
150
-45~150
UNIT
V
V
V
A
W
SavantIC Semiconductor
Product Specification
Silicon PNP Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-base breakdown voltage
Emitter-base breakdown votage
Collector-emitter saturation voltage
Base-emitter voltage
Collector cut-off current
DC current gain
DC current gain
Transition frequency
CONDITIONS
I
C
=-50mA; R
BE
=6
I
C
=-5mA; I
E
=0
I
E
=-5mA; I
C
=0
I
C
=-2 A;I
B
=-0.2 A
I
C
=-1A ; V
CE
=-4V
V
CB
=-20V; I
E
=0
I
C
=-1A ; V
CE
=-4V
I
C
=-0.1A ; V
CE
=-4V
I
C
=-0.5A ; V
CE
=-4V
35
35
35
MIN
-50
-50
-4
TYP.
2SB855
SYMBOL
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BE
I
CBO
h
FE-1
h
FE-2
f
T
MAX
UNIT
V
V
V
-1.2
-1.5
-100
200
V
V
µA
MHz
h
FE-1
classifications
A
35-70
B
60-120
C
100-200
2
SavantIC Semiconductor
Product Specification
Silicon PNP Power Transistors
PACKAGE OUTLINE
2SB855

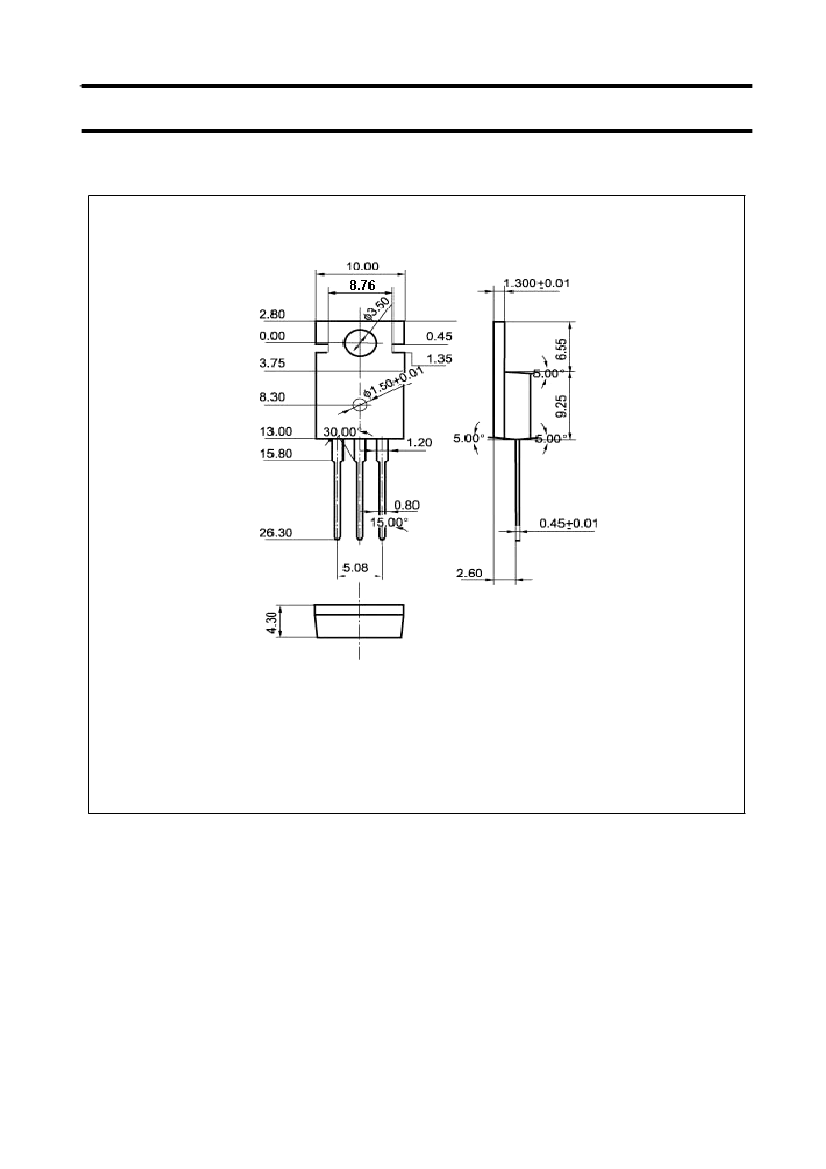

Fig.2 Outline dimensions (unindicated tolerance:±0.10 mm)
3
