SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC4107
DESCRIPTION
·With TO-220C package
·High breakdown voltage and high reliability
·Fast switching speed.
·Wide area of safe operation
APPLICATIONS
·400V/10A switching regulator applications
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
DESCRIPTION
Absolute maximum ratings(Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
Base current
Ta=25
P
C
Collector dissipation
T
C
=25
T
j
T
stg
Junction temperature
Storage temperature
60
150
-55~150
CONDITIONS
Open emitter
Open base
Open collector
VALUE
500
400
7
10
20
3.5
1.75
W
UNIT
V
V
V
A
A
A
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-base breakdown voltage
Emitter-base breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
DC current gain
Transition frequency
Collector output capacitance
CONDITIONS
I
C
=5mA ; R
BE
=;
I
C
=1mA ; I
E
=0
I
E
=1mA ; I
C
=0
I
C
=6A; I
B
=1.2A
I
C
=6A; I
B
=1.2A
V
CB
=400V ;I
E
=0
V
EB
=5V; I
C
=0
I
C
=1.2A ; V
CE
=5V
I
C
=6A ; V
CE
=5V
I
C
=10mA ; V
CE
=5V
I
C
=1.2A ; V
CE
=10V
f=1MHz ; V
CB
=10V
15
10
10
MIN
400
500
7
SYMBOL
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE-1
h
FE-2
h
FE-3
f
T
C
OB
2SC4107
TYP.
MAX
UNIT
V
V
V
0.8
1.5
10
10
50
V
V
µA
µA
20
120
MHz
pF
Switching times
t
on
t
stg
t
f
Turn-on time
Storage time
Fall time
I
C
=7A;I
B1
=1.4A;
I
B2
=-2.8A;R
L
=28.6B
V
CC
=200V
0.5
2.5
0.3
µs
µs
µs
h
FE-1
classifications
L
15-30
M
20-40
N
30-50
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC4107
Fig.2 Outline dimensions (unindicated tolerance:±0.10 mm)
3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors

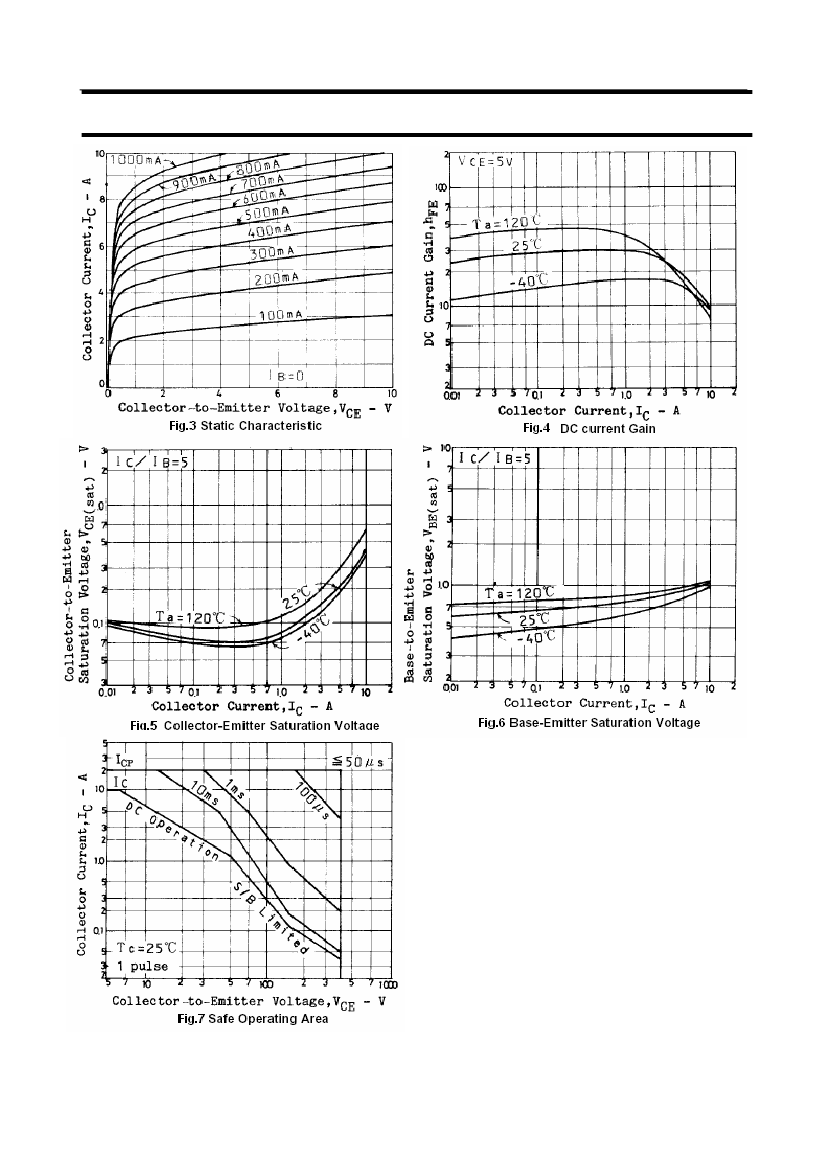

2SC4107
4
