2SC4150: DescriptionSilicon NPN Power Transistors; File Size221KB，3 Pages; ManufacturerSAVANTIC; Websitehttp://www.svntc.com/

Download Datasheet View All

2SC4150 Overview

Silicon NPN Power Transistors

Preview

Download Datasheet

View All

SavantIC Semiconductor

Product Specification

Silicon NPN Power Transistors

2SC4150

DESCRIPTION

·With ITO-220 package

·Switching power transistor

·Low saturation voltage

PINNING

Base

Collector

Emitter

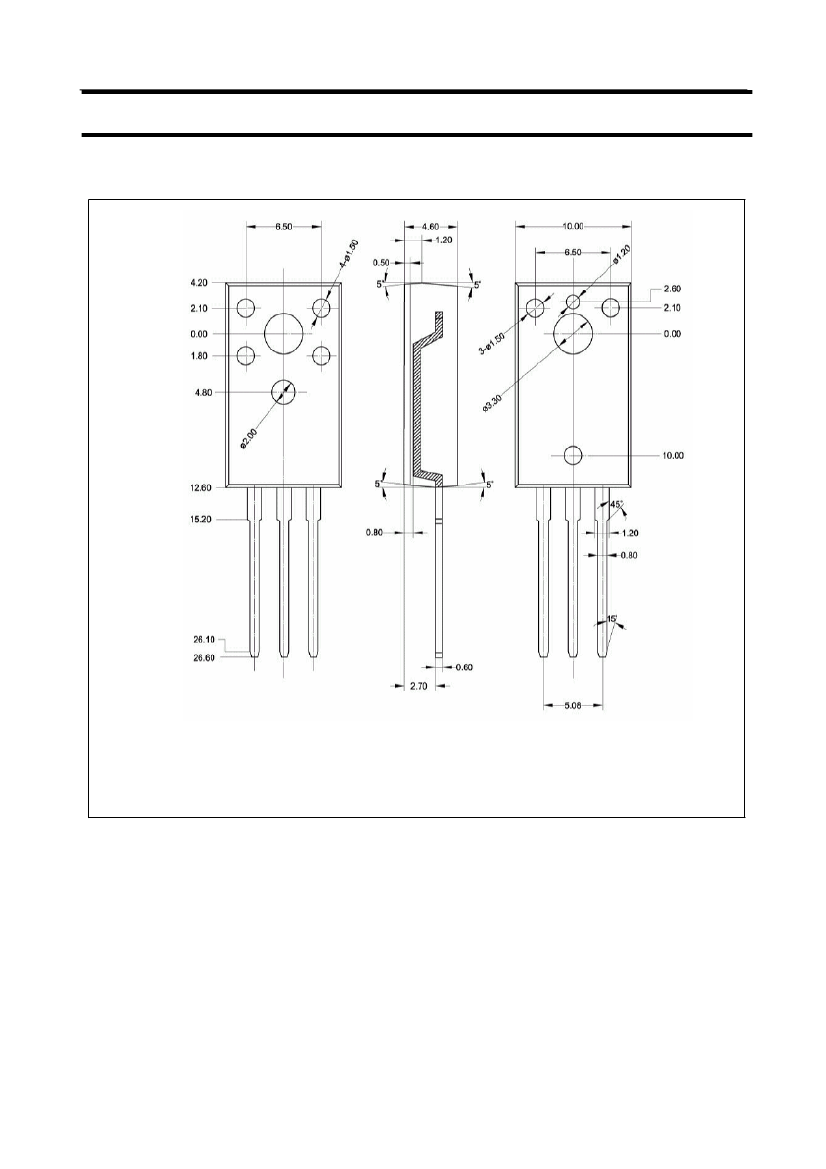

Fig.1 simplified outline (ITO-220) and symbol

DESCRIPTION

Absolute maximum ratings(Ta=25

)

SYMBOL

CBO

CEO

EBO

stg

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector current-Peak

Base current

Base current-Peak

Total power dissipation

Junction temperature

Storage temperature

=25

CONDITIONS

Open emitter

Open base

Open collector

VALUE

150

-55~150

UNIT

THERMAL CHARACTERISTICS

SYMBOL

th j-C

PARAMETER

Thermal resistance junction case

MAX

5.0

UNIT
