2SC4381 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 2SC4381

Preview

2SC4381: Description2 A, 200 V, NPN, Si, POWER TRANSISTOR, TO-220AB; Categorysemiconductor Discrete semiconductor; File Size245KB，4 Pages; ManufacturerSAVANTIC; Websitehttp://www.svntc.com/

Download Datasheet Parametric Compare View All

2SC4381 Overview

2 A, 200 V, NPN, Si, POWER TRANSISTOR, TO-220AB

2SC4381 Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	NPN
Maximum collector current	2 A
Maximum Collector-Emitter Voltage	200 V
Processing package description	TO-220F, FM20, 3 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	FLANGE MOUNT
Terminal form	THROUGH-HOLE
terminal coating	NOT SPECIFIED
Terminal location	SINGLE
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Shell connection	ISOLATED
Number of components	1
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Transistor type	GENERAL PURPOSE POWER
Minimum DC amplification factor	60
Rated crossover frequency	15 MHz

Preview

Download Datasheet

View All

SavantIC Semiconductor

Product Specification

Silicon NPN Power Transistors

2SC4381 2SC4382

DESCRIPTION

·With TO-220F package

·Complement to type 2SA1667/1668

APPLICATIONS

·For TV vertical output ,audio output driver

and general purpose applications

PINNING

1

2

3

Base

Collector

Emitter

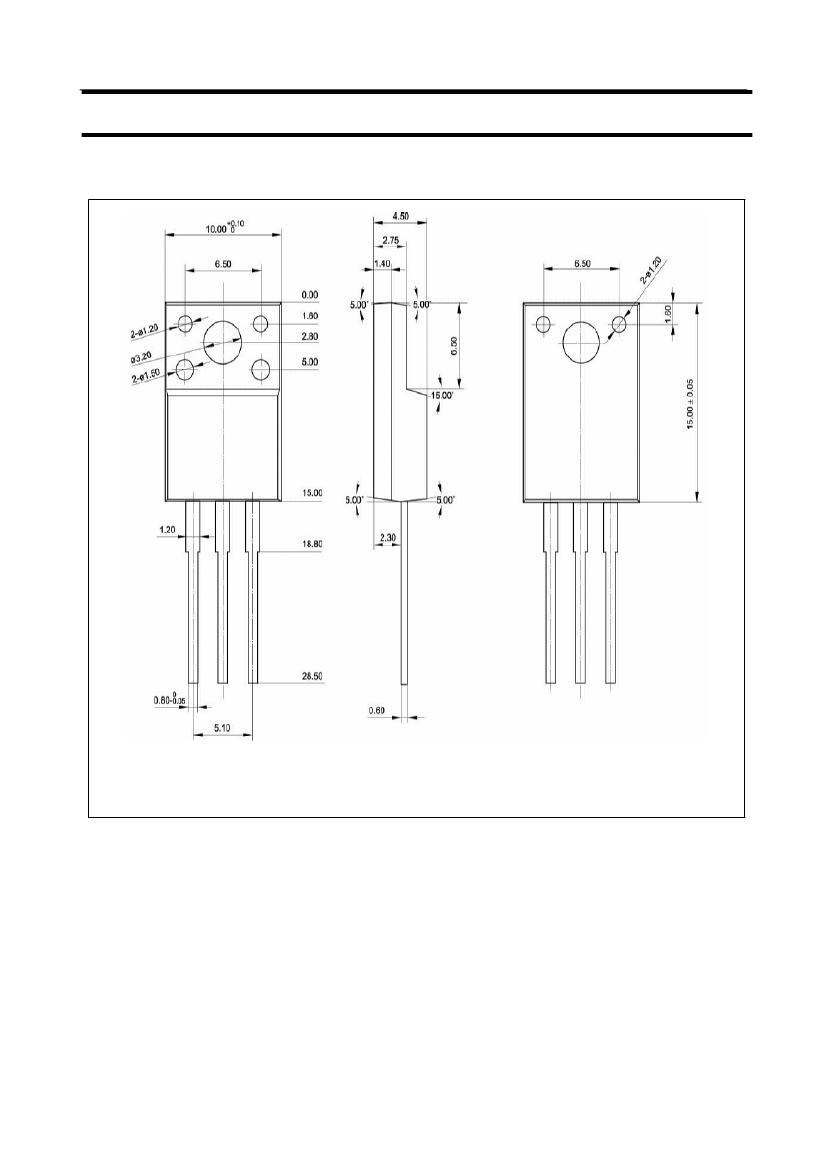

Fig.1 simplified outline (TO-220F) and symbol

DESCRIPTION

Absolute maximum ratings (Ta=25

)

SYMBOL

PARAMETER

2SC4381

V

CBO

Collector-base voltage

2SC4382

2SC4381

V

CEO

Collector-emitter voltage

2SC4382

V

EBO

I

C

I

B

P

C

T

j

T

stg

Emitter-base voltage

Collector current

Base current

Collector dissipation

Junction temperature

Storage temperature

T

C

=25

Open collector

Open base

200

6

2

1

25

150

-55~150

V

A

W

Open emitter

200

150

V

CONDITIONS

VALUE

150

V

UNIT

2SC4381 Related Products

	2SC4381	2SC4382
Description	2 A, 200 V, NPN, Si, POWER TRANSISTOR, TO-220AB	2 A, 200 V, NPN, Si, POWER TRANSISTOR, TO-220AB
Number of terminals	3	3
Transistor polarity	NPN	NPN
Maximum collector current	2 A	2 A
Maximum Collector-Emitter Voltage	200 V	200 V
Processing package description	TO-220F, FM20, 3 PIN	TO-220F, FM20, 3 PIN
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
packaging shape	RECTANGULAR	RECTANGULAR
Package Size	FLANGE MOUNT	FLANGE MOUNT
Terminal form	THROUGH-HOLE	THROUGH-HOLE
terminal coating	NOT SPECIFIED	NOT SPECIFIED
Terminal location	SINGLE	SINGLE
Packaging Materials	PLASTIC/EPOXY	PLASTIC/EPOXY
structure	SINGLE	SINGLE
Shell connection	ISOLATED	ISOLATED
Number of components	1	1
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Transistor type	GENERAL PURPOSE POWER	GENERAL PURPOSE POWER
Minimum DC amplification factor	60	60
Rated crossover frequency	15 MHz	15 MHz
