Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SSR1008M, SSR1008Z
SSR1009M, SSR1009Z
SSR1010M, SSR1010Z
10 AMPS
80 - 100 VOLTS
SCHOTTKY RECTIFIER
Designer’s Data Sheet
Part Number/Ordering Information
1/
SSR1008 __ __ __
SSR1009 __ __ __
SSR1010 __ __ __
│
│
│
│
│
│
│
│
│
│
└
│ └
Screening
2/
│
__
= Not Screened
│
TX = TX Level
│
TXV = TXV Level
│
S = S Level
│
└
Lead Options
__ = Straight Leads
DB = Bent Down
UB = Bent Up
Package
M = TO-254
Z = TO-254Z
•
•
•
•
•
•
•
FEATURES:
Extremely Low Forward Voltage Drop
Low Reverse Leakage Current
Hermetically Sealed Package
Guard Ring for Overvoltage Protection
Eutectic Die Attach
175
°
C Operating Junction Temperature
TX, TXV, or Space Level Screening
Available
MAXIMUM RATINGS
RATING
Peak Repetitive Reverse Voltage
and DC Blocking Voltage
Average Rectified Output Current
3/
(Resistive Load, 60Hz, Sine Wave, TA=25
°
C)
SSR1008
SSR1009
SSR1010
SYMBOL
V
RRM
V
RWM
V
R
I
O
VALUE
80
90
100
10
UNIT
Volts
Amps
Amps
°
Peak Surge Current
3/
(8.3 ms Pulse, Half Sine Wave, superimposed on I
O
, allow
°
junction to reach equilibrium between pulses, TA=25 C)
I
FSM
T
OP
& T
STG
R
θJC
200
-65 to +175
2.0
°
Operating and Storage Temperature
Maximum Thermal Resistance
3/
Junction to Case
NOTES:
1/ For ordering information, price, and availability- Contact Factory.
2/ Screening based on MIL-PRF-19500. Screening flows available
on request.
3/ For optimal performance, connect leads 2 & 3 together.
C
C/W
TO-254
TO-254Z
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RS0205L
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SSR1008M, SSR1008Z
SSR1009M, SSR1009Z
SSR1010M, SSR1010Z
ELECTRICAL CHARACTERISTICS (Per Leg)
CHARACTERISTICS
Instantaneous Forward Voltage Drop
(I
F
= 1 Adc, T
A
= 25 C, Pulse)
°
(I
F
= 5 Adc, T
A
= 25 C, Pulse)
°
(I
F
= 10 Adc, T
A
= 25 C, Pulse)
°
SYMBOL
V
F1
V
F2
V
F3
T
A
= 100
°
C
°
T
A
= -55 C
MAX
0.57
0.72
0.8
0.70
0.90
100
5
400
UNIT
Vdc
Vdc
μA
mA
pF
Instantaneous Forward Voltage Drop
(I
F
= 10 Adc, Pulse)
V
F4
V
F5
I
R1
I
R2
C
J
Reverse Leakage Current
(Rated V
R
, T
A
= 25
°
C, Pulse)
Reverse Leakage Current
(Rated V
R
, T
A
= 100
°
C, Pulse)
Junction Capacitance
(V
R
= 10 Vdc, T
A
= 25
°
C, f = 1 MHz)

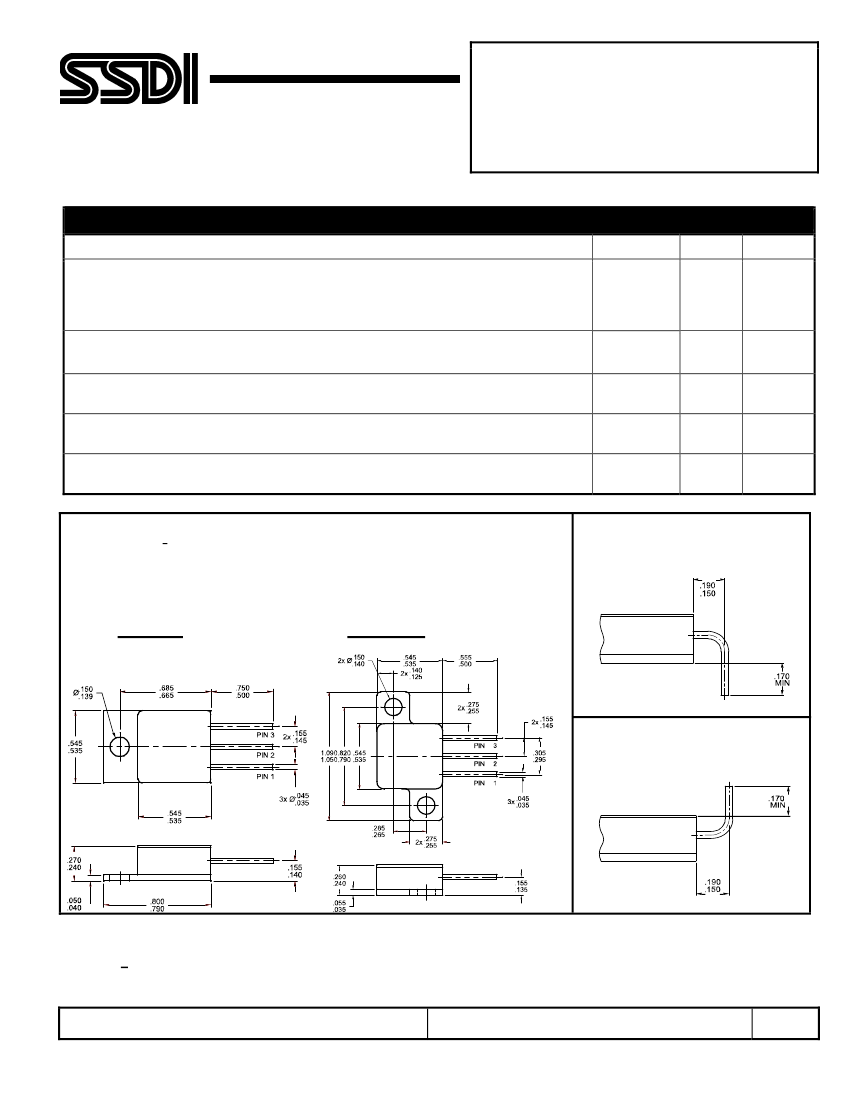

Case Outlines- TO-254 and TO-254Z
4/
Configuration
PIN OUT: Rectifier
PIN 1- CATHODE
PIN 2- ANODE
PIN 3- ANODE
Optional Bent Down Leads
(MDB & ZDB Suffix)
TO-254 (M Suffix)
TO-254Z (Z Suffix)
Optional Bent Up Leads
(MUB & ZUB Suffix)
For information on curves, contact the Factory Representative for Engineering Assistance.
NOTES:
4/
Pins 2 and 3 must be externally connected for best performance.
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RS0205L
DOC
