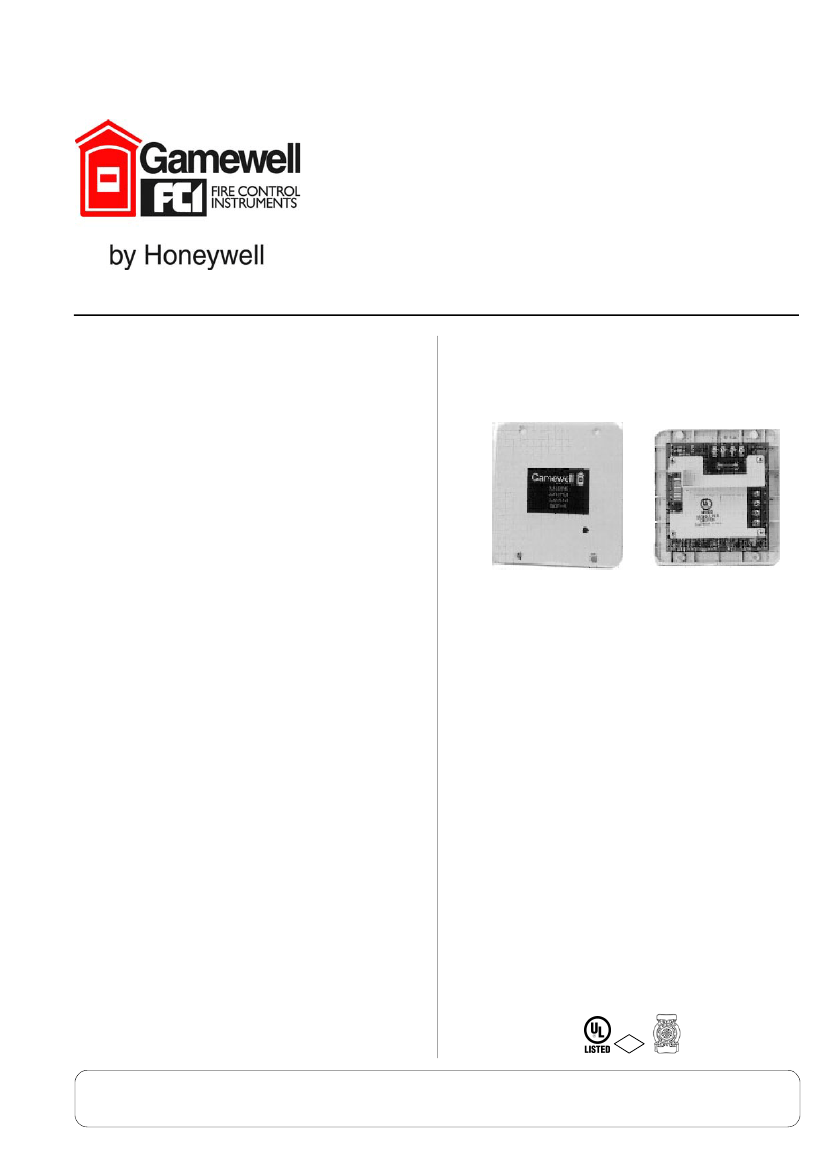

BCE-95
Description
Gamewell-FCI’s Building Control Element (BCE-95) is the
interface between the IF632 or IF650 Fire Alarm Control
Panel (FACP) and building functions that require a three
position (HOA) (On/Off/Auto) control capability. The BCE-
95 connects to the panel via the SLC circuit. The BCE-95
is assigned to a display (BCD) at the FACP via software
programming. The BCD provides annunciation, control and
feedback of the BCE-95 at the main FACP. The BCE-95
offers feedback input points for positive confirmation of the
controlled device’s activity.
The BCE-95 is for either surface or flush mounted and has
an integral LED that lights at device activation.
Building Control Element
BCE-95
Operation
When an event is reported to the FACP that requires the
activation of the BCE-95, the FACP communicates via the
analog circuit to the BCE-95, and the selected building con-
trol relay is actuated. The integral LED then lights for
annunciation of the device.
In the event that a manual command is transmitted from
the building control display (BCD) at the control panel, the
BCE-95 device will respond and override the auto-pro-
grammed activation until the alarm event has been
resolved and reset
Features
•
•
•
•
•
•
•
•
•
•
Compatible with IF632 & IF650 FACPs.
LED annunciates activation.
Fully supervised.
Surface or flush mounting.
Field programmable.
Style four, six, or seven wiring.
Screw terminals for field wiring connections.
Dry relay contacts.
Provides controllable relay functions.
Provides positive feedback of relay control.
Separate on/start, off/stop operation.
Programming
The BCE-95 is programmed by setting a single DIP switch
easily accessible on the device’s printed circuit board. The
DIP switch is used to set the address of the BCE-95. All
other programming is accomplished at the control panel,
either through a laptop computer or the control panel oper-
ator’s display.
•
An ISO 9000-2000 Company
SIGNALING
FM
Microsoft Windows is a registered trademark of Microsoft Corporation.
®
®
®
S521
APPROVED
7300-1288:147
GAMEWELL-FCI
Specifications are for information only, are not intended for installation purposes, and are subject to change without notice. No responsibility is assumed by Gamewell-FCI for their use.
©2007 Honeywell International Inc. All rights reserved.
www.gamewell-fci.com
CS-2041 Rev. A page 1 of 2
12 Clintonville Road, Northford, CT 06472-1610 USA • Tel: (203) 484-7161 • Fax: (203) 484-7118
CS-2041ph1.wmf
Mounting
The BCE-95 is designed to mount in a standard 4.0"
(10.16 cm),
4.688"
(11.908 cm)
or double gang electrical back-
box. The BCE-95 should be mounted in an easily accessi-
ble location so that the built-in LED may be seen for quick
indication of proper connection and activation.
A programmable remote interface along with a panel
mounted three position switch unit shall be provided for the
control and status reporting of programmed building control
functions. The remote interface shall communicate with the
main control panel via an SLC over a single pair of wires.
The BCE-95 shall provide dry contacts and positive feed-
back of the controlled equipment’s status. On/Off control
and annunciation at the panel shall be provided via a build-
ing control display switch and annunciator unit. The remote
interface shall be Gamewell-FCI BCE-95 with a Gamewell-
FCI BCD display.
Ordering Information
Model
BCE-95
70839
BCD
Description
Building control element device. XP95 protocol
compatible.
Trim ring for flush mounting the BCE-95.
Building control display provides annunciation
and ON/OFF/AUTO control of the BCE-95 con-
trol element devices, mounts at the FACP. One
needed for every eight BCEs.
Note: The Building Control Element (BCE-95) is only
compatible with the IdentiFlex 632 & 650 FACPs.
Specifications
Standby Current:
Alarm Current:
Operating
Temperature:
Relative Humidity:
Contact Rating:
Input Power:
Housing
Requirements:
0.0008 A
0.0018 A
0° C to 49°C (32°F to 120 °F)
85%, non-condensing
2.0 A at 30 VDC.
0.5 A at 120 VAC.
24 VDC from analog circuit.
4.0"
(10.16 cm),
4.688"
(11.908 cm),
double gang electrical box.
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472-1610 USA • Tel: (203) 484-7161 • Fax: (203) 484-7118
www.gamewell-fci.com
CS-2041 Rev. A page 2 of 2
