SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3874
DESCRIPTION
·With TO-3PL package
·High speed switching
·High V
CBO
·Wide area of safe operation
APPLICATIONS
·For high-speed switching applications
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
Fig.1 simplified outline (TO-3PL) and symbol
DESCRIPTION
Absolute maximum ratings (Ta=25
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
Base current
T
a
=25
P
C
Collector power dissipation
T
C
=25
T
j
T
stg
Junction temperature
Storage temperature
150
150
-55~150
CONDITIONS
Open emitter
Open base
Open collector
VALUE
500
400
7
15
25
5
3.5
W
UNIT
V
V
V
A
A
A
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25
unless otherwise specified
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
DC current gain
Transition frequency
CONDITIONS
I
C
=10mA ;I
B
=0
I
C
=10A ;I
B
=2A
I
C
=10A ;I
B
=2A
V
CB
=500V; I
E
=0
V
EB
=5V; I
C
=0
I
C
=0.1A ; V
CE
=5V
I
C
=10A ; V
CE
=5V
I
C
=1A ; V
CE
=10V;f=1MHz
15
8
MIN
400
2SC3874
SYMBOL
V
(BR)CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE-1
h
FE-2
f
T
TYP.
MAX
UNIT
V
1.0
1.5
100
100
V
V
µA
µA
20
MHz
Switching times
t
on
t
stg
t
f
Turn-on time
Storage time
Fall time
I
C
=10A; V
CC
=150V
I
B1
=2A;I
B2
=-4A
0.7
2.0
0.3
µs
µs
µs
2
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC3874

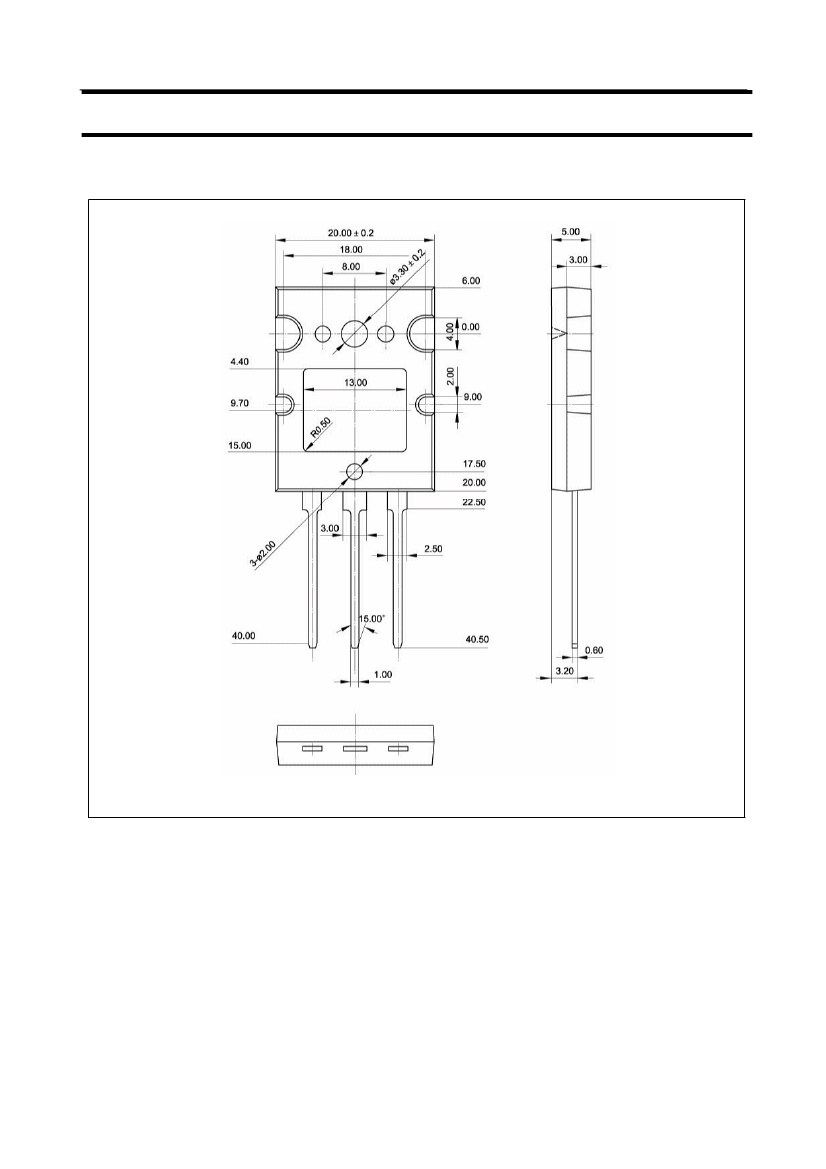

Fig.2 Outline dimensions (unindicated tolerance:±0.50mm)
3
SavantIC Semiconductor
Product Specification
Silicon NPN Power Transistors
2SC3874
4
