RAN2-RCF Overview

Remote annunciator, surface mount, 4-line x 40-character alphanumeric display

Preview

Download Datasheet

View All

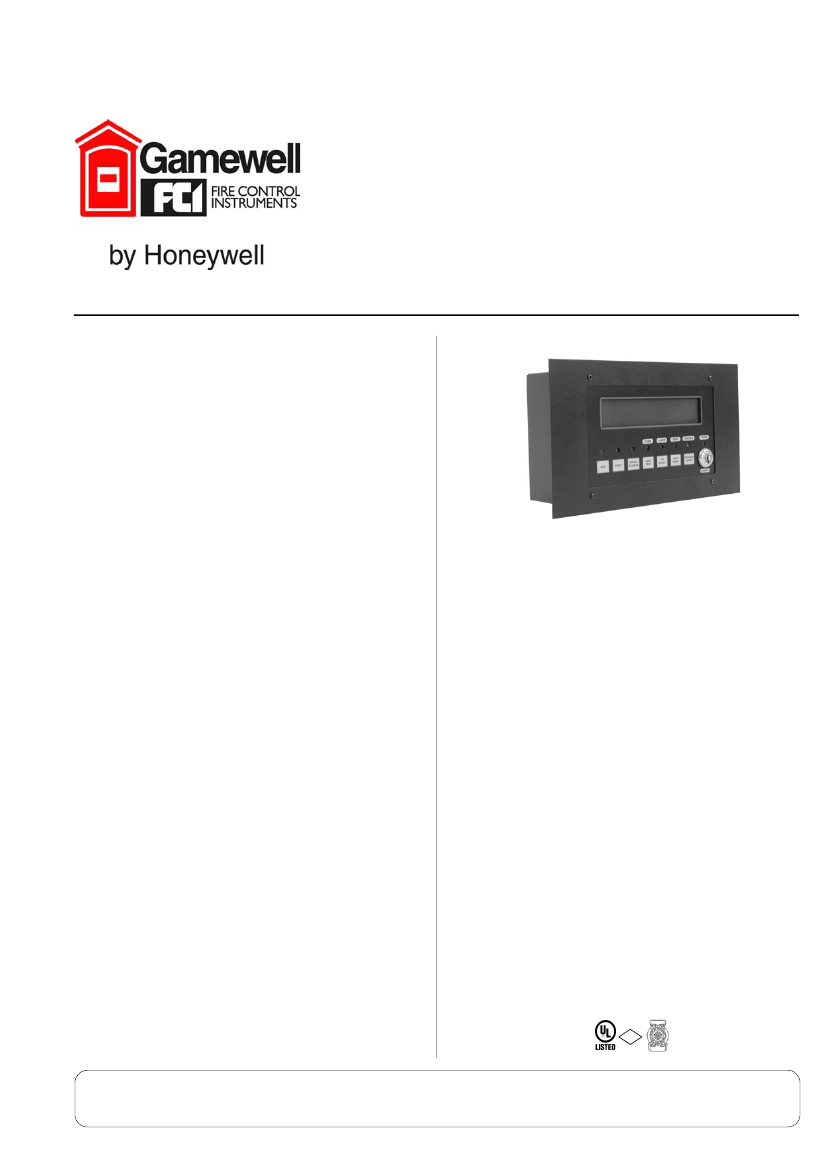

600 Series

Remote Annunciators

Description

The 600 Series remote annunciators (RAN2 and RAN2-

RC) provide remote display and control capabilities. Each

RAN device is connected to the main 600 Series Fire

Alarm Control Panel (FACP) via a serial communications

port. The RAN interprets the instructions from the main

FACP, initiating its own programmed response, and

retransmitting the instructions to the next device.

Gamewell-FCI 600 Series systems can accommodate up

to 64 devices connected to the serial communications port.

In addition to the Remote Annunciator (RAN2), these

devices include Serial Annunciator drives (SAN) and

Remote Printer Interfaces (RPI). These devices comprise

the Gamewell-FCI Status Control Network. Each device

contains its own microprocessor and can be programmed

independently. A network of devices can be programmed

directly from a single device, saving valuable installation

time.

The Remote Alphanumeric Display (RAN2) is fully super-

vised and has dual serial ports for network connection. The

RAN2 family displays the user text from the main system.

The remote control version (RAN2-RC) has seven

switches: Remote Acknowledge, Reset, Signal Silence,

Lamp Test, Display 1st Event, Display Next Event, Display

Previous Event.

The basic RAN2 has a scroll switch only. The scroll switch

is used to review multiple events on the system. The

remote control versions are provided with a seven-position

switch bank and eight LEDs for system annunciation. The

switches provide remote control of the connected system.

A key switch enables and disables the switches to prevent

unauthorized operation.

The Status Control Network is connected to the main 600

Series control panel via an EIA-232 data communications

line. The SIM-232 module is used to provide an isolated

EIA-232 output from the main CPU of the IF632, IF654,

RAN2, RAN2-RC

600 Series RAN2, RAN2-RC Models

Features

• Backlit LCD alphanumeric display,

4-lines by 40-characters.

• Up to 64 devices supported on a single 600 Series

control panel.

• Field-programming via PC.

• Dual optically-isolated serial ports.

• Microprocessor controlled.

• Supervised.

• Allows remote system control.

• Surface-mount and flush-mount models available.

• Adjustable viewing angle.

• Network monitoring capabilities.

An ISO 9000-2000 Company

SIGNALING

S521

APPROVED

7120-1288:149

GAMEWELL-FCI

Specifications are for information only, are not intended for installation purposes, and are subject to change without notice. No responsibility is assumed by Gamewell-FCI for their use.

www.gamewell-fci.com

CS-2025 Rev. A page 1 of 2

12 Clintonville Road, Northford, CT 06472-1610 USA • Tel: (203) 484-7161 • Fax: (203) 484-7118
