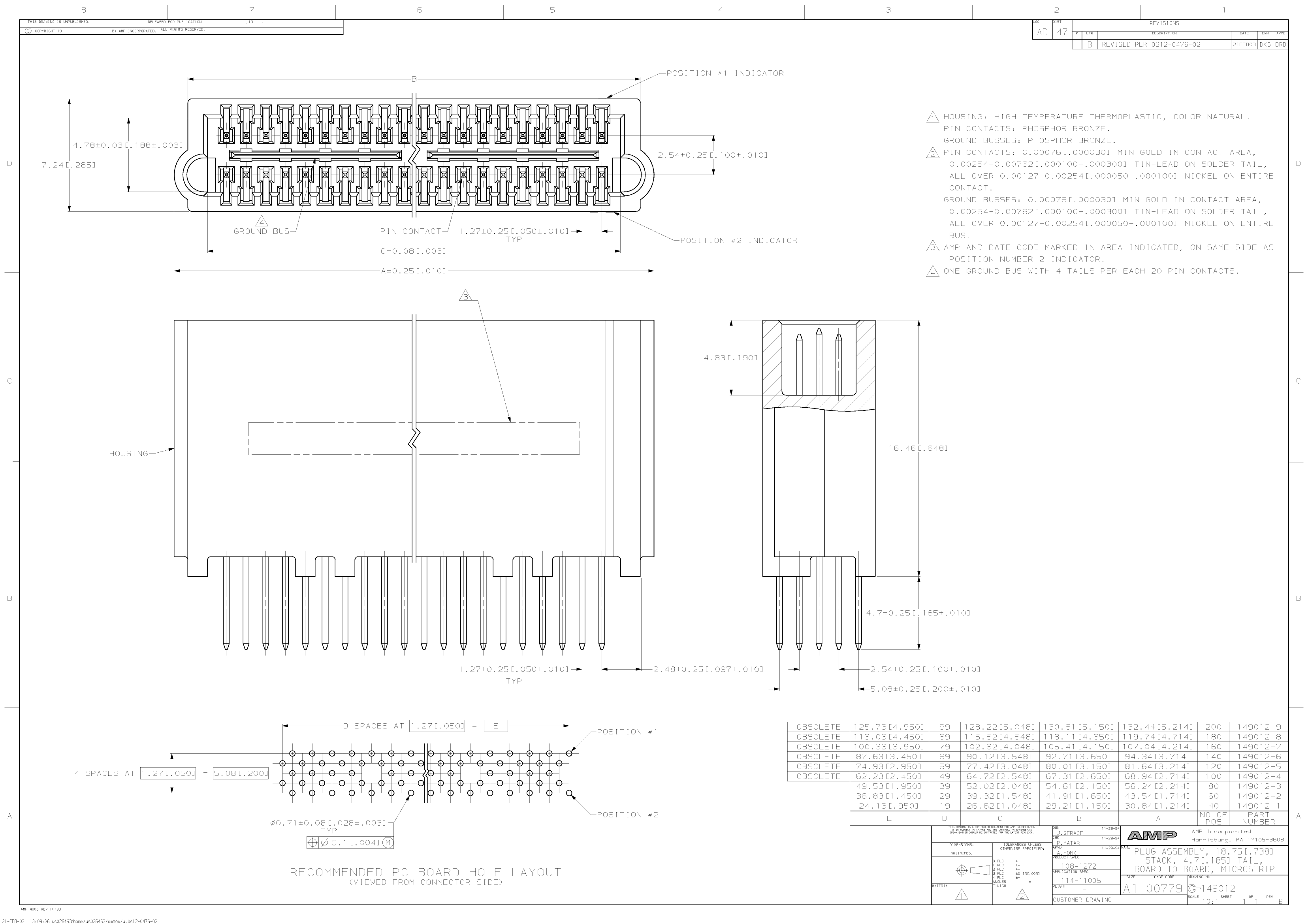

Preview

149012-7: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,NATURAL; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

149012-7 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,NATURAL

149012-7 Parametric

Parameter Name	Attribute value
Objectid	300542591
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH-TEMP, STACK HEIGHT=0.738"
body width	0.285 inch
subject depth	0.648 inch
body length	4.214 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Insulator color	NATURAL
insulator material	THERMOPLASTIC
Manufacturer's serial number	149012
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	3
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.185 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160

Preview

Download Datasheet

View All

149012-7 Related Products

	149012-7	149012-4	149012-6	149012-8	149012-9	149012-5
Description	HEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,140 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,NATURAL	180 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, PLUG	HEADER CONNECTOR,PCB MNT,RECEPT,200 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,NATURAL	120 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, PLUG
Objectid	300542591	300542588	300542590	1429333170	300542593	1429333113
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	HIGH-TEMP, STACK HEIGHT=0.738"	HIGH-TEMP, STACK HEIGHT=0.738"	HIGH-TEMP, STACK HEIGHT=0.738"	STAGGERED CONFIGURATION	HIGH-TEMP, STACK HEIGHT=0.738"	STAGGERED CONFIGURATION
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Manufacturer's serial number	149012	149012	149012	149012	149012	149012
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	2	3	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	160	100	140	180	200	120
ECCN code	EAR99	EAR99	EAR99	-	EAR99	-
body width	0.285 inch	0.285 inch	0.285 inch	-	0.285 inch	-
subject depth	0.648 inch	0.648 inch	0.648 inch	-	0.648 inch	-
body length	4.214 inch	2.714 inch	3.714 inch	-	5.214 inch	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI	-
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	-
Insulator color	NATURAL	NATURAL	NATURAL	-	NATURAL	-
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC	-
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	-	0.05 inch	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	-
Number of connectors	ONE	ONE	ONE	-	ONE	-
PCB row number	5	5	5	-	5	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	-	STAGGERED	-
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	-
Plating thickness	30u inch	30u inch	30u inch	-	30u inch	-
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	-	POLAR PIN POSITION	-
Guideline	UL, CSA	UL, CSA	UL, CSA	-	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-
Terminal length	0.185 inch	0.185 inch	0.185 inch	-	0.185 inch	-
