NCR92C902-C-84PL datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> NCR92C902-C-84PL

NCR92C902-C-84PL: DescriptionLAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQCC84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，38 Pages; ManufacturerNCR

Download Datasheet Parametric Compare View All

NCR92C902-C-84PL Overview

LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQCC84

NCR92C902-C-84PL Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Address bus width	16
boundary scan	NO
maximum clock frequency	20 MHz
Data encoding/decoding methods	NRZ; BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	1.25 MBps
External data bus width	16
JESD-30 code	S-PQCC-J84
low power mode	NO
Number of DMA channels	2
Number of I/O lines
Number of serial I/Os	2
Number of terminals	84
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum slew rate	80 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
Base Number Matches	1

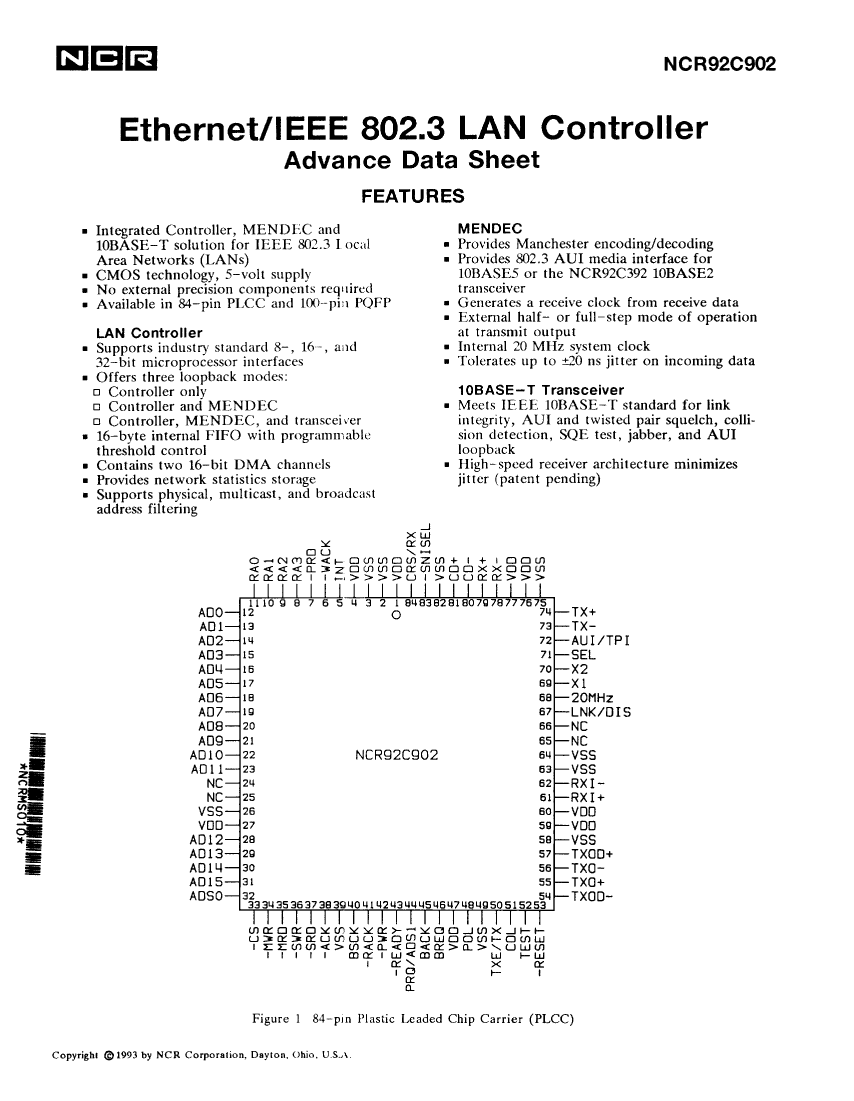

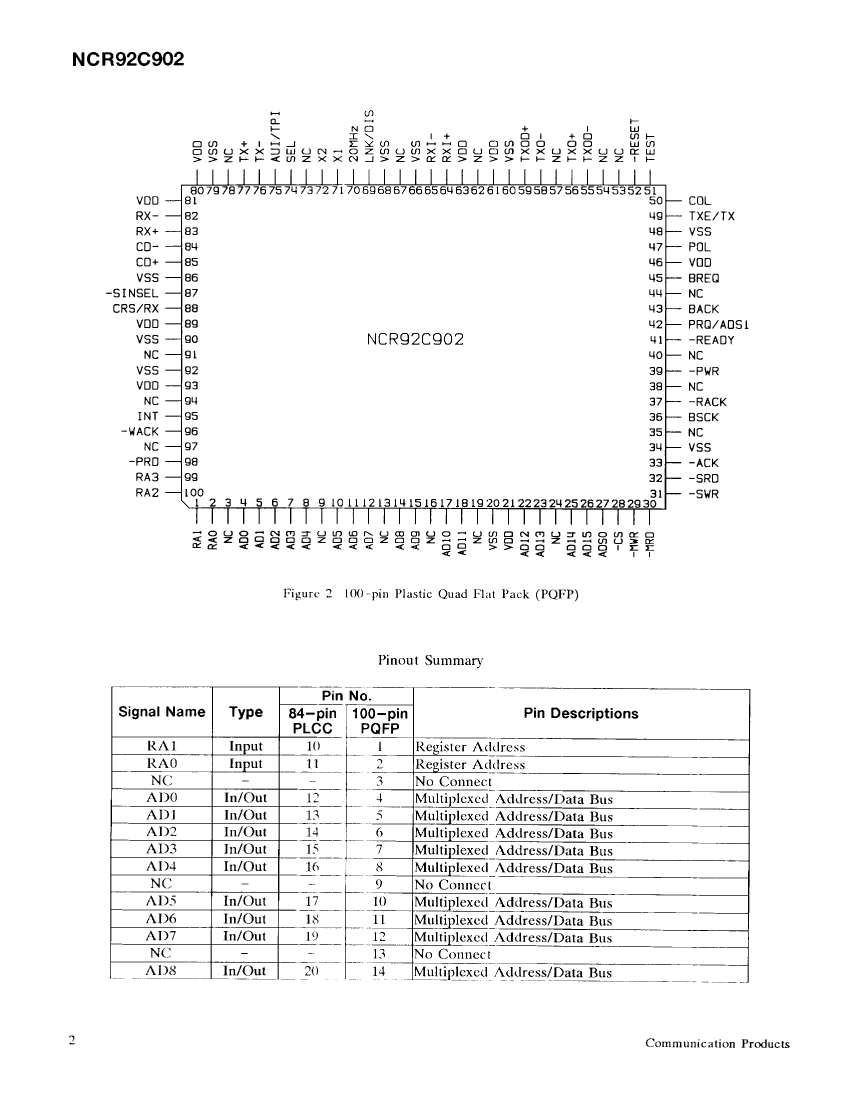

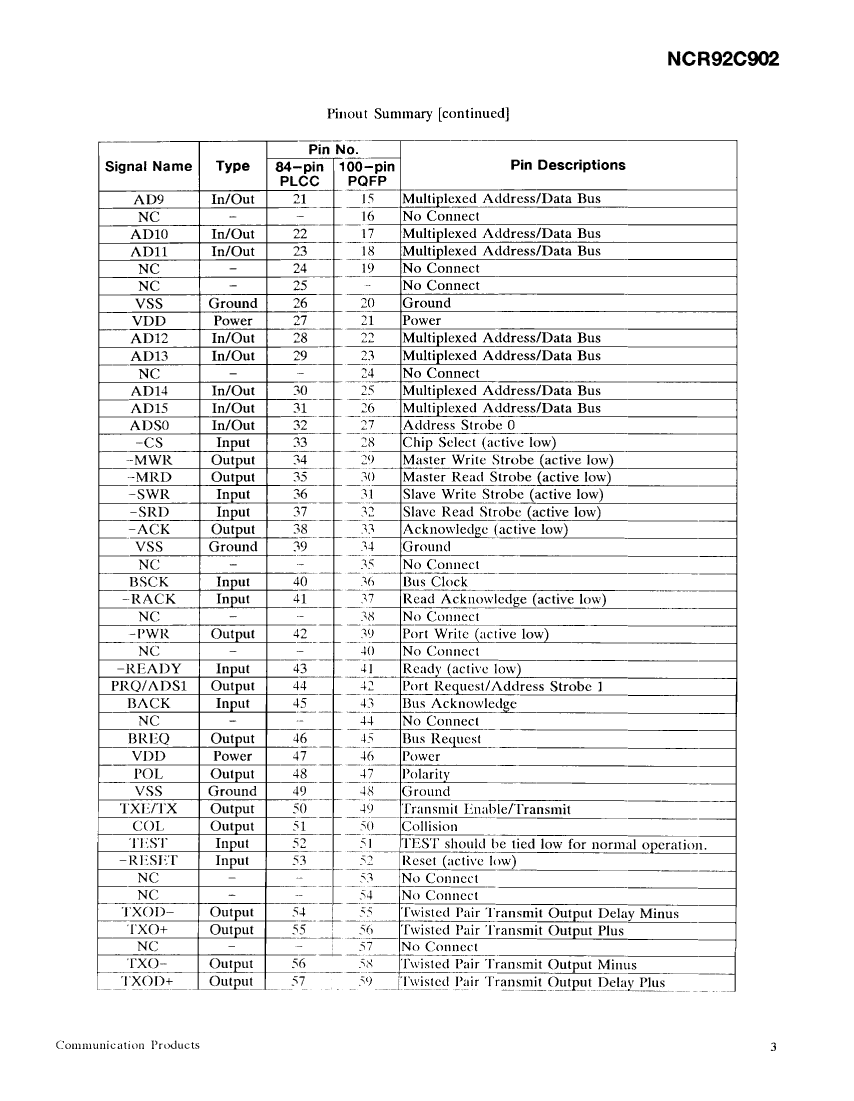

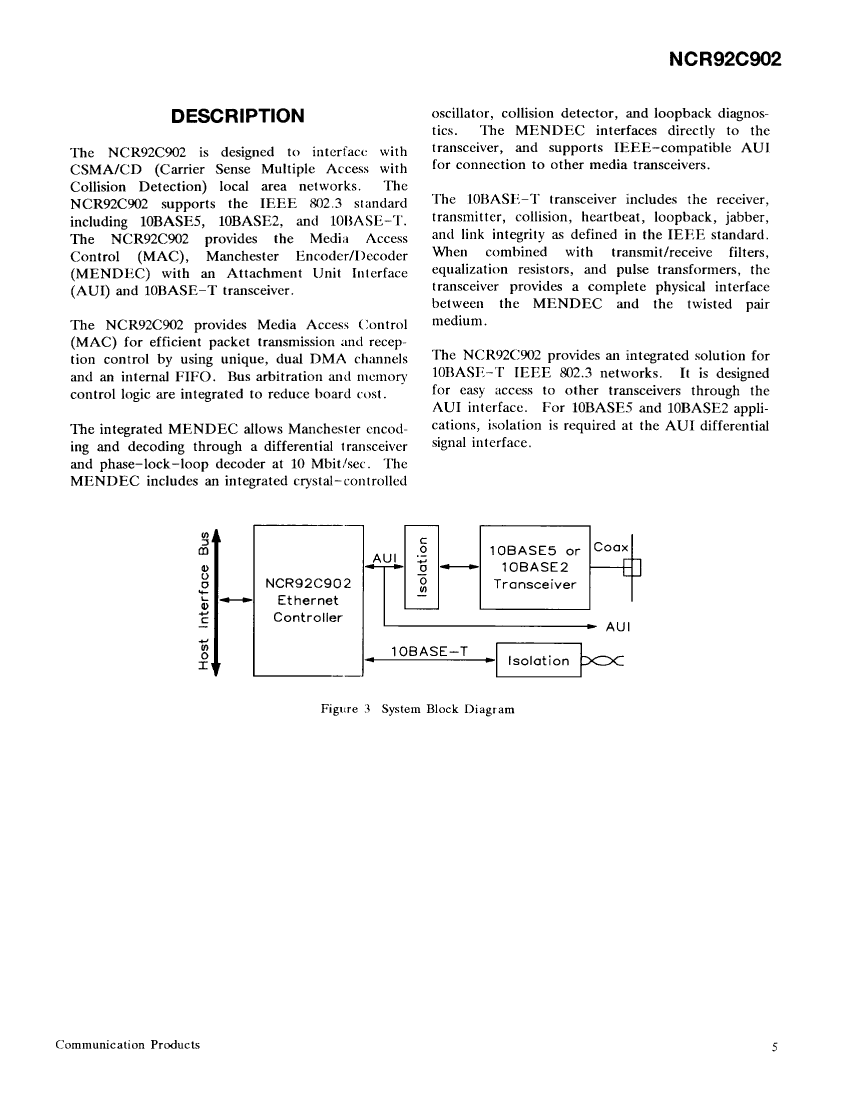

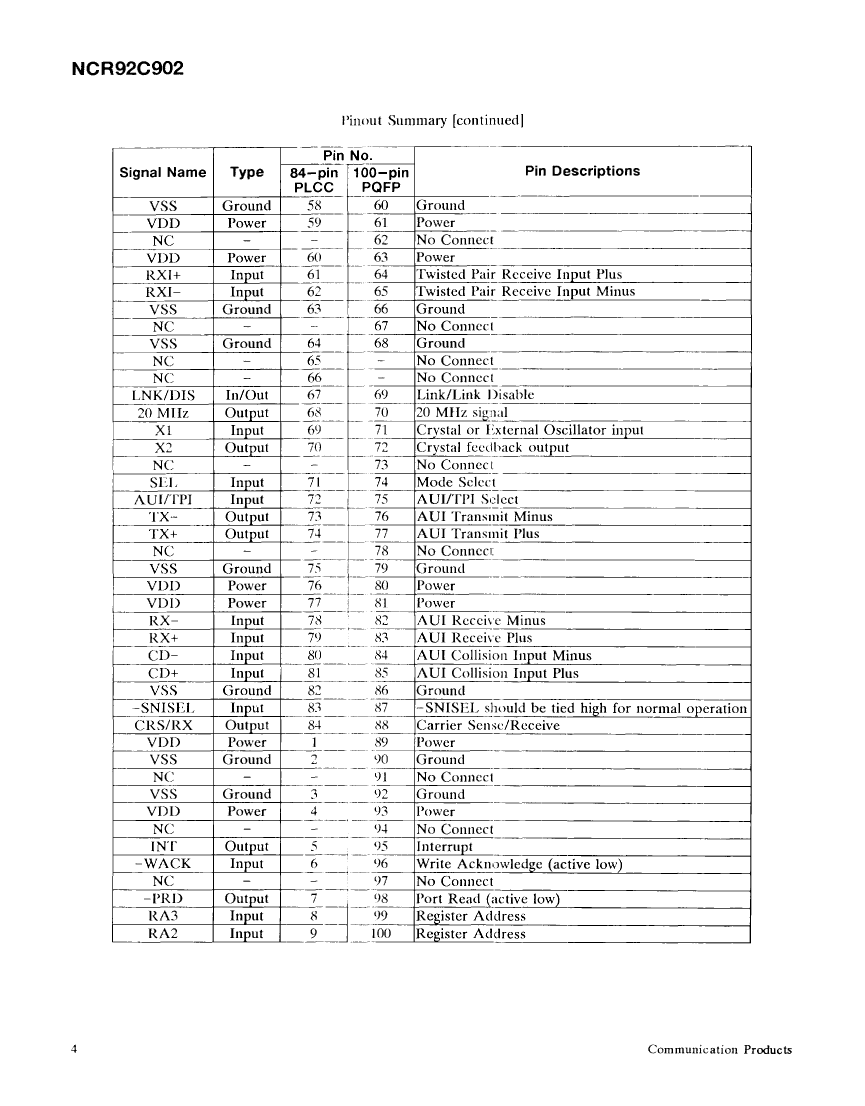

Preview

Download Datasheet

View All

NCR92C902-C-84PL Related Products

	NCR92C902-C-84PL	NCR92C902-T-84PL	NCR92C902-C-100QFP	NCR92C902-T-100QFP
Description	LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQCC84	LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQCC84	LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQFP100	LAN Controller, 2 Channel(s), 1.25MBps, CMOS, PQFP100
Reach Compliance Code	unknown	unknown	unknown	unknown
Address bus width	16	16	16	16
boundary scan	NO	NO	NO	NO
maximum clock frequency	20 MHz	20 MHz	20 MHz	20 MHz
Data encoding/decoding methods	NRZ; BIPH-LEVEL(MANCHESTER)	NRZ; BIPH-LEVEL(MANCHESTER)	NRZ; BIPH-LEVEL(MANCHESTER)	NRZ; BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	1.25 MBps	1.25 MBps	1.25 MBps	1.25 MBps
External data bus width	16	16	16	16
JESD-30 code	S-PQCC-J84	S-PQCC-J84	R-PQFP-G100	R-PQFP-G100
low power mode	NO	NO	NO	NO
Number of DMA channels	2	2	2	2
Number of serial I/Os	2	2	2	2
Number of terminals	84	84	100	100
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	80 mA	80 mA	80 mA	80 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	GULL WING	GULL WING
Terminal location	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
Base Number Matches	1	1	1	-
