BK/ATC-7.5

Description
Electric Fuse, Fast Blow, 7.5A, 32VDC, Inline/holder
CategoryCircuit protection    Circuit protection
File Size71KB,1 Pages
ManufacturerCooper Industries
Download Datasheet Parametric Compare View All

BK/ATC-7.5 Overview

Electric Fuse, Fast Blow, 7.5A, 32VDC, Inline/holder

BK/ATC-7.5 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresRATED BREAKING CAPACITY AT 32 VDC: 1000 A
Fusing characteristicsFAST
body width5.25 mm
body height12.54 mm
Body length or diameter19.3 mm
Circuit protection typeELECTRIC FUSE
JESD-609 codee3
Manufacturer's serial numberATC
Installation featuresINLINE/HOLDER
physical size19.3mm x 5.25mm x 12.54mm
Rated current7.5 A
Rated voltage (DC)32 V
GuidelineUL
surface mountNO
Terminal surfaceTIN
Terminal shapeTAB/BLADE
Base Number Matches1
SPECIFICATIONS
Current Rating:
1-40A.
Voltage Rating:
32VDC.
Interrupt Rating:
1,000A @ 32VDC.
Housing Material:
UL-Rated 94V-0 thermoplastic.
Terminal Material:
Tin-plated zinc alloy.
Marking:
Amperage marking is OCR compliant.
Compliances:
UL-Recognized (3-40A);
SAE J1284; ISO 8820-3
Consult factory for higher voltage fuses.
Part No.
BK/ATC-1
BK/ATC-2
BK/ATC-3
BK/ATC-4
BK/ATC-5
BK/ATC-7.5
BK/ATC-10
BK/ATC-15
BK/ATC-20
BK/ATC-25
BK/ATC-30
BK/ATC-40
Amp Rating
1
2
3
4
5
7.5
10
15
20
25
30
40
Color
Black
Gray
Violet
Pink
Tan
Brown
Red
Lt. Blue
Yellow
Clear
Green
Amber
100
10
TIME IN SECONDS
1
.1
CURRENT IN AMPERES
22
Cooper Bussmann Transportation Products
• Phone: 1-888-867-8194 • Website: http://www.coopertp.com
1000
100
1
10
.01
3
4
5
7.5
10
15
20
25
30
40

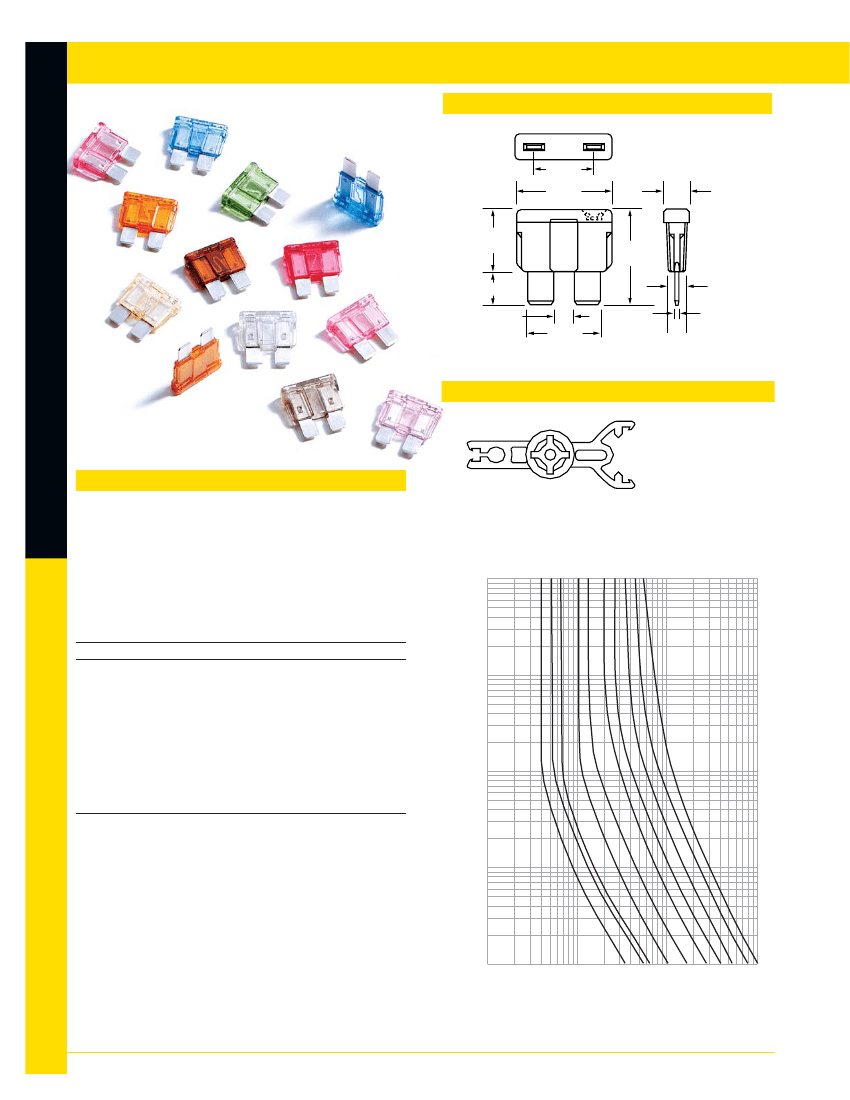

ATC FUSE
Bussmann
®
ATC
®
TERMINAL CIRCUIT PROTECTION
ATC
®
BLADE FUSES
DIMENSIONS
(Dims. shown are for reference only. Consult factory for latest prints)
BUSS
20
.46"
(11.7)
.76"
(19.30)
ATC
.21"
(5.25)
.49"
(12.54)
.75"
(19.05)
.15"
(3.80)
.03"
(.69)
.26"(6.67)
.16"
(4.13)
.57"
(14.61)
ATC
®
FUSE PULLER
- PART NUMBER 32003
ATC
®
Blade – Type Fuse
Fast Acting
ATC CB
See page 27 for
more information.
AMPERE
RATING
