SURFACE MOUNT SUPER FAST RECTIFIER
ES3A THRU ES3J
FEATURES
•
•
•
•
•
VOLTAGE RANGE
CURRENT
50 to 600 Volts
3.0 Ampere
Plastic package has underwrites laboratory
Flammability Classification 94V-0
Glass passivated chip junction
Built-in strain relief,
Suoer Fast switching speed for high efficiency
High temperature soldering guaranteed:
260℃/10 seconds
DO-214AB(SMC)
MECHANICAL DATA
•
•
•
•
Case: JEDED DO-214AB transfer molded plastic
Terminals: Solder plated, solderable per MIL-STD-750
Method 2026
Polarity: Color band denotes cathode end
Weight: 0.007 ounce, 0.25 gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load derate current by 20%.
SYMBOLS ES3A ES3B
Maximum Repetitive Peak Reverse Voltage
V
RRM
50
100
Maximum RMS Voltage
V
RMS
35
70
Maximum DC Blocking Voltage
V
DC
50
100
Maximum Average Forward Rectified Current
at T
L
=100℃
Peak Forward Surge Current
8.3ms single half sine-wave superimposed on
rated load (JEDEC method)
Maximum Instantaneous Forward Voltage @ 3.0A
Maximum DC Reverse Current at rated T
A
= 25℃
DC Blocking Voltage per element
T
A
= 125℃
Typical Reverse Recovery Time
Test conditions I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Typical Junction Capacitance
(Measured at 1.0MHz and applied reverse voltage of 4.0V)
Typical Thermal Resistance (Note 1)
Operating Junction Temperature Range
Storage Temperature Range
•
•
•
ES3C
150
105
150
ES3D
200
140
200
3.0
100
ES3E
300
210
300
ES3G
400
280
400
ES3J
600
420
600
UNIT
Volts
Volts
Volts
Amps
Amps
I
(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJA
R
θJL
T
J
T
STG
45
0.95
1.25
5.0
300
35
1.7
Volts
µA
nS
30
55
17
(-55 to +150)
(-55 to +150)
pF
℃
/W
℃
℃
Notes:
1. Thermal resistance from Junction to ambient and from junction to lead mounted on P.C.B. with
0.3”×0.3”(8.0mm
×
8.0mm) copper pad areas.
E-mail:
sales@cnmic.com
Web Site: www.cnmic.com
SURFACE MOUNT SUPER FAST RECTIFIER
ES3A THRU ES3J
VOLTAGE RANGE
CURRENT
50 to 600 Volts
3.0 Ampere

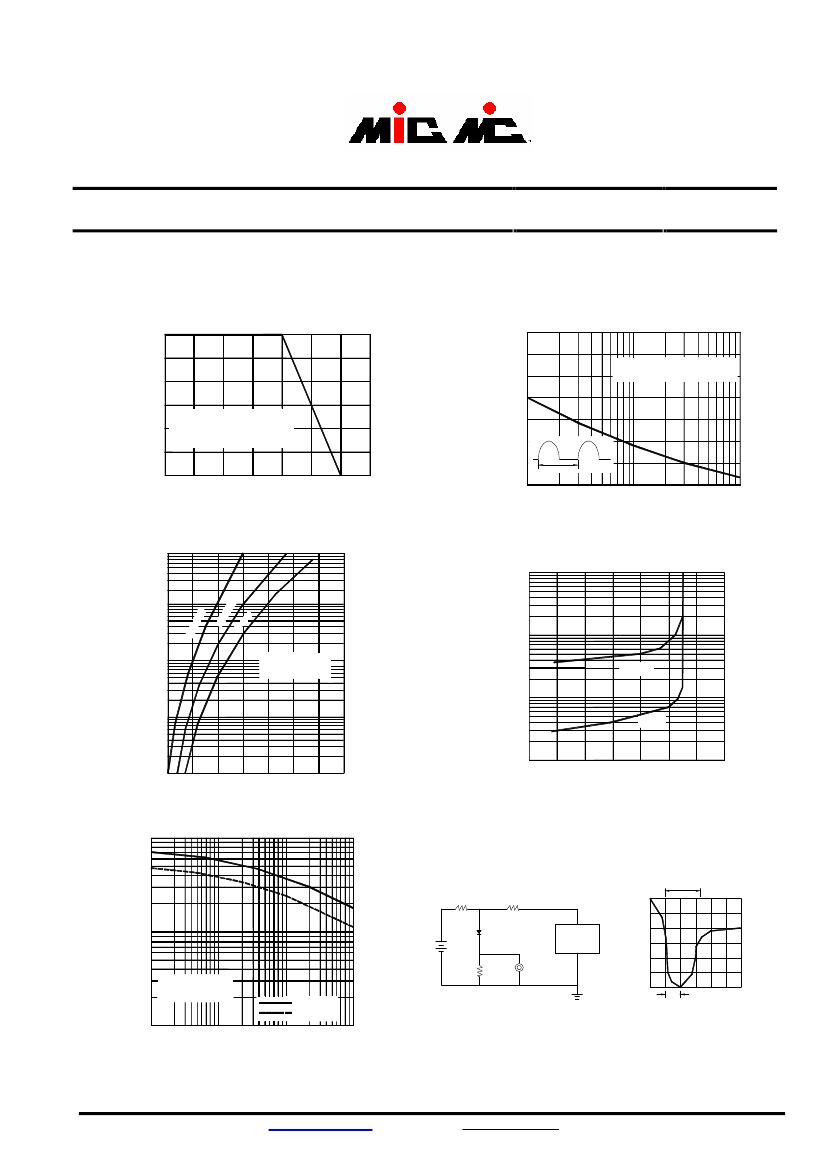

RATING AND CHRACTERISTIC CURVES ES3A THRU ES3J
FIG.1-TYPICAL FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT,
3.0
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
150
8.3ms Single Half Sine-Wave
2.0
CURRENT, (A)
(JEDEC Method) T
j
= T
jmax
(A)
100
Single Phase Half Wave
1.0
60Hz Inductive or Resistive Load
0.375″(9.5mm) Lead Length
50
0
0
25
50
75
100
125
150
175
0
1
1 Cycle
2
4
6
8 10
20
40
60
100
AMBIENT TEMPERATURE, (° C)
FIG.3-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
10
NUMBER OF CYCLES AT 60 Hz
FIG.4-TYPICAL REVERSE
CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT,
10
INSTANTANEOUS FORWARD CURRENT,
3D
ES
3E
ES
3J
1.0
ES
3A-
-3 G
1.0
0.1
T
J
=25° C
Pulse Width=300us
1% Duty Cycle
(μA)
(A)
T
J
=125° C
0.1
0.01
T
J
=25℃
0.01
0
0.001
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD VOLTAGE,(V)
FIG.5-TYPICAL JUNCTION CAPACITANCE
1000
PERCENT OF RATED PEAK
REVERSE VOLTAGE,(%)
JUNCTION CAPACITANCE,(pF)
F1G.6-TEST CIRCUIT DIAGRAM AND
REVERSE RECOVERY TIME CHARACTERISTIC
TRR
50Ω
10Ω
NONINDUCTIVE NONINDUCTIVE
(-)
100
(+)
25 Vdc
(approx.)
(-)
T
J
=25° C
f=1MHz
Vsig=50mVp-p
ES3A-ES3D
ES3E-ES3J
10
0.1
1.0
10
100
D.U.T.
PULSE
GENERATIOR
(NOTE 2)
(+)
OSCILLOSCOPE
(NOTE 1)
+0.5A
0
-0.25A
1Ω
NON
INDUCTIVE
-1.0A
1cm
REVERSE VOLTAGE,(V)
NOTES : 1.Rise Time=7ns max. Input Impedance=
1 megohm. 22pF
2.Rise time=10ns max. Source Impedance=
50 ohms
SET TIME BASE FOR
50/100ns/cm
E-mail:
sales@cnmic.com
Web Site: www.cnmic.com
