SN74LS37NSRG4 datasheet, PDF - EEWORLD Datasheet

SN74LS37NSRG4: DescriptionNAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, SOP-14; Categorylogic logic; File Size971KB，20 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN74LS37NSRG4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SN74LS37NSRG4	-	-	View	Buy Now

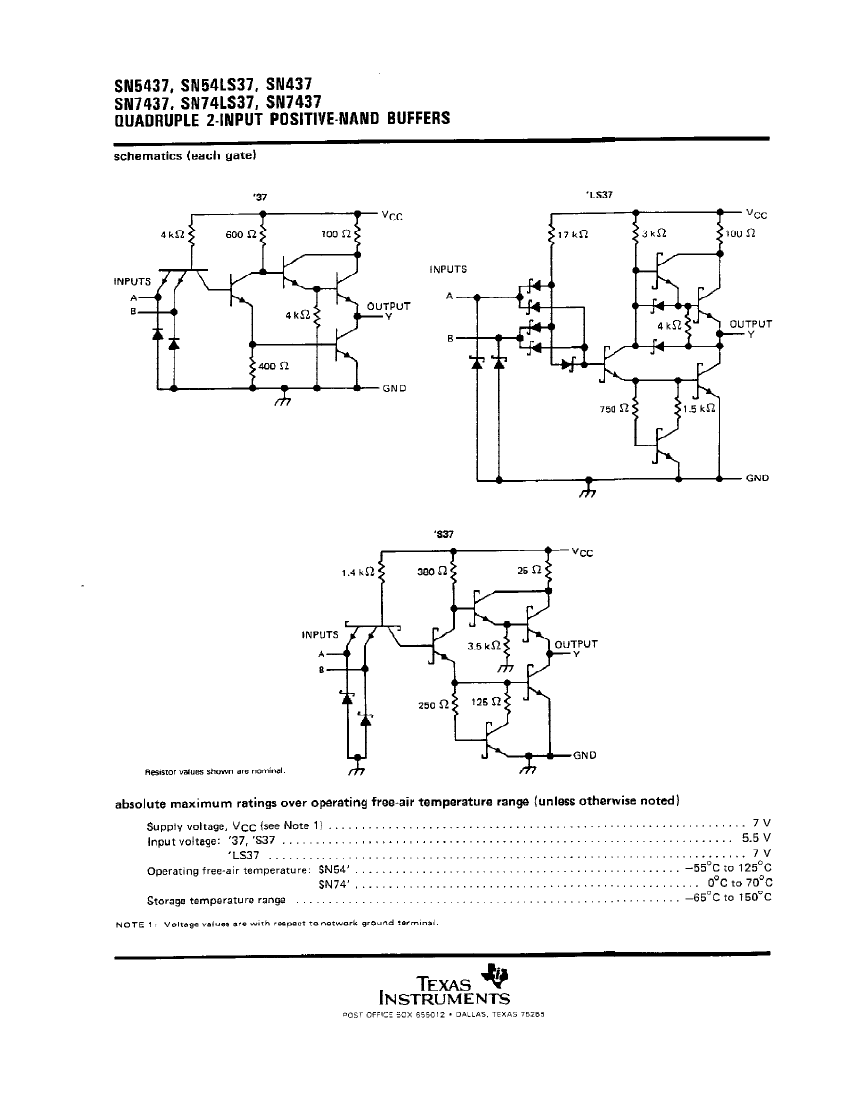

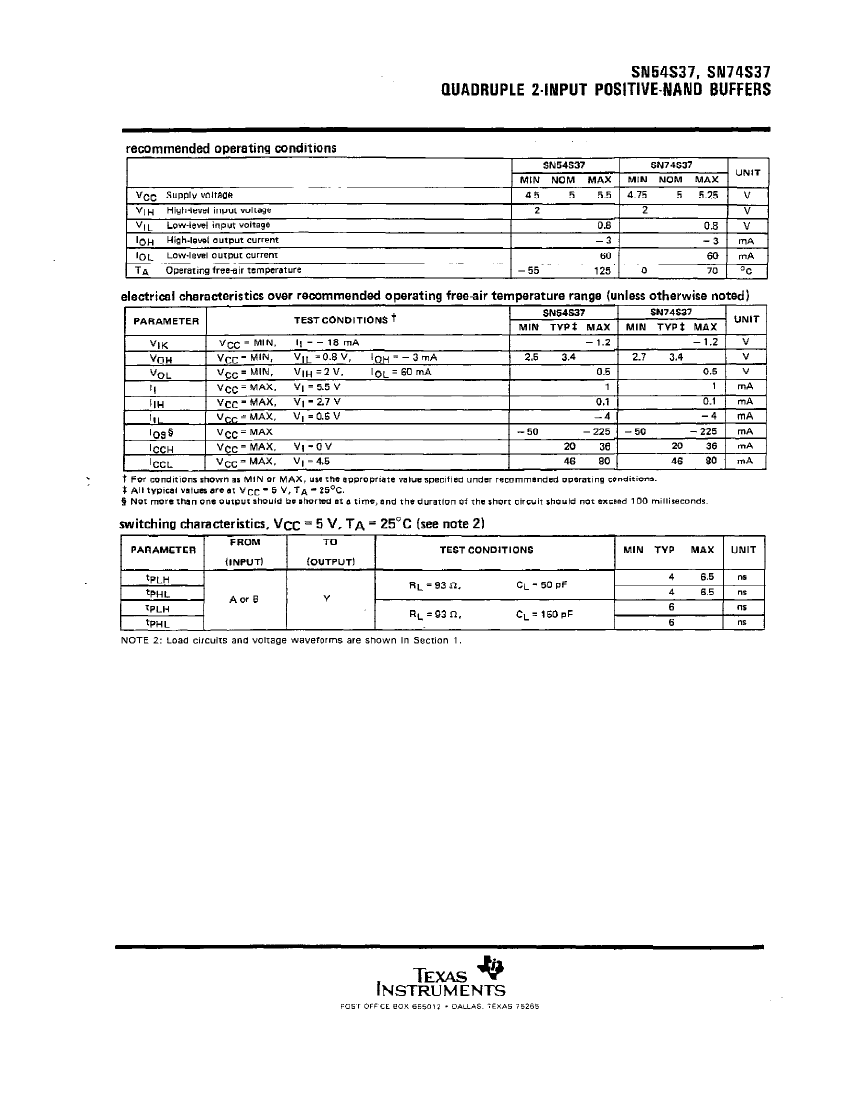

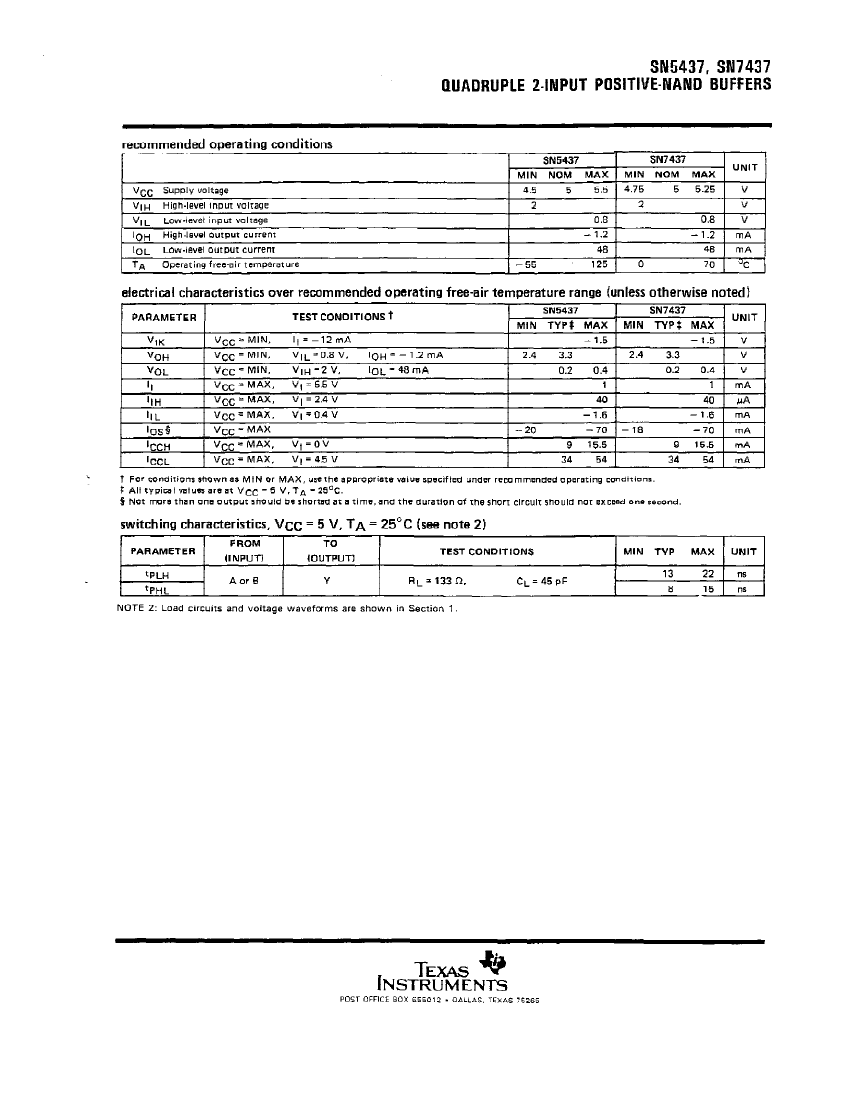

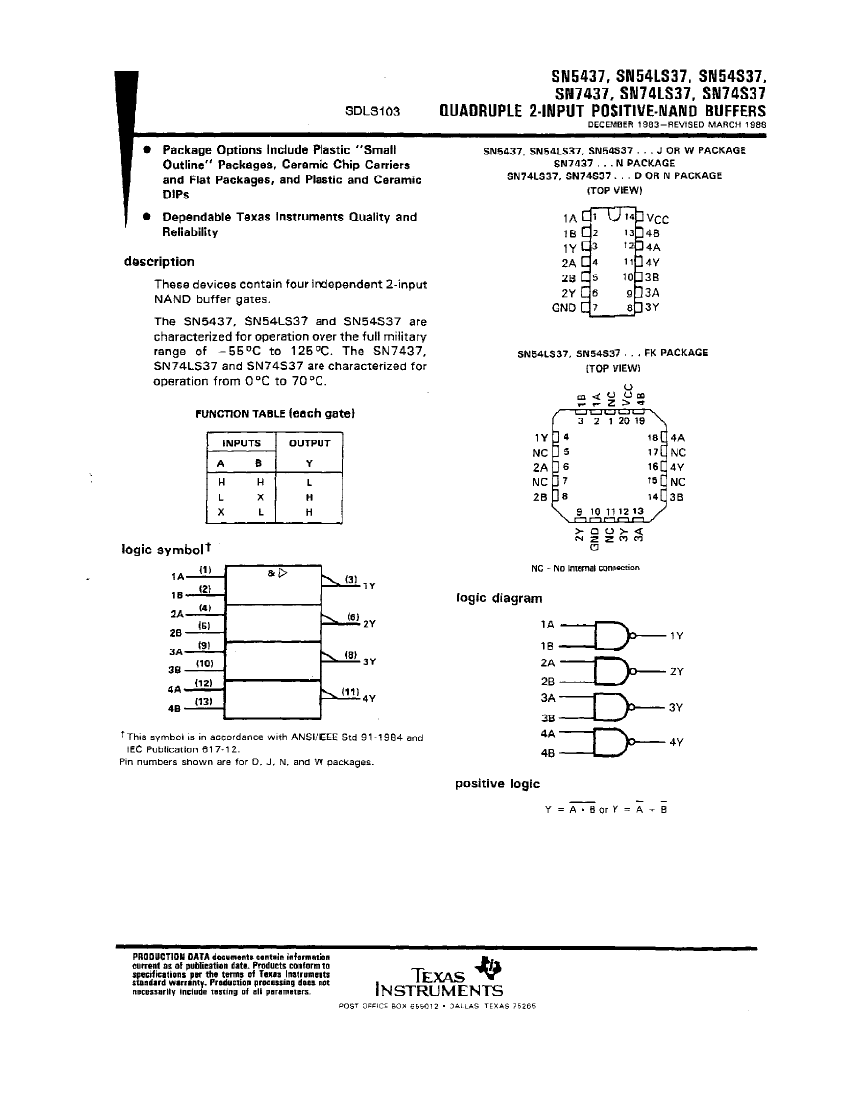

NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, SOP-14

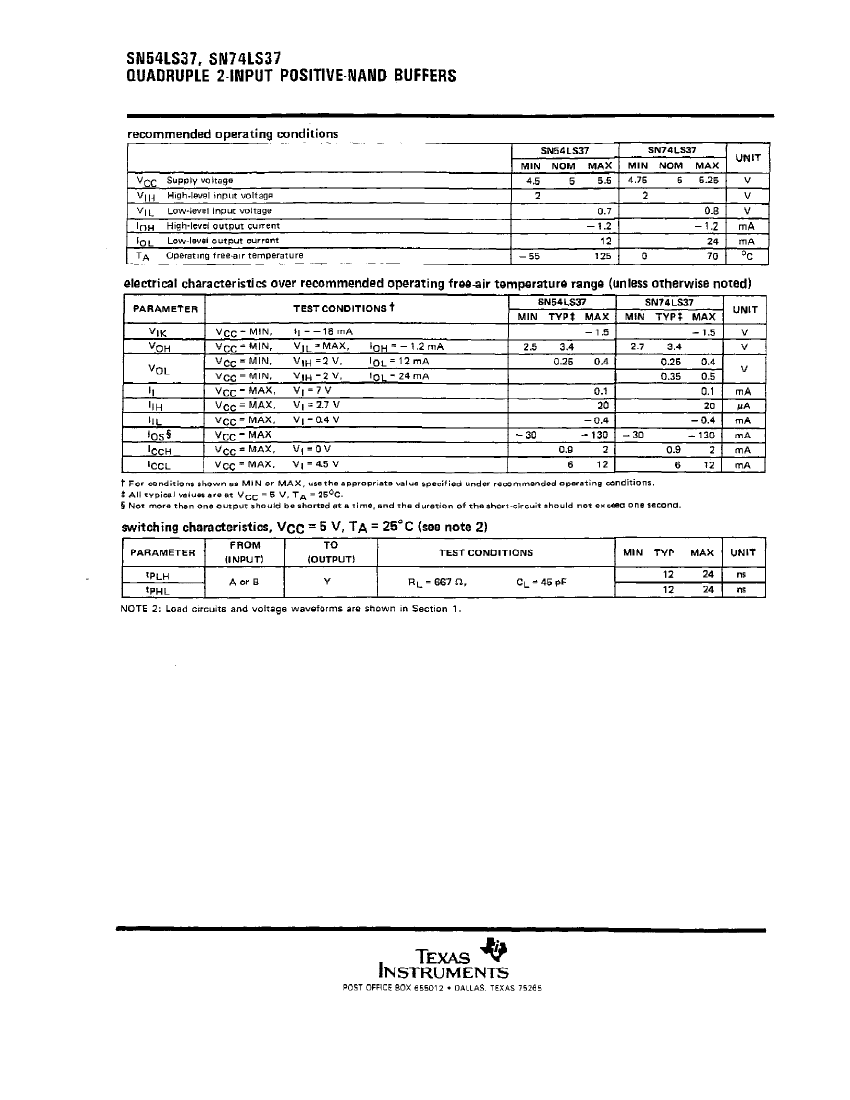

Parameter Name	Attribute value
package instruction	GREEN, PLASTIC, SOP-14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G14
length	10.2 mm
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	24 ns
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

	SN74LS37NSRG4	SN74LS37NSRE4
Description	NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, SOP-14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, SO-14
package instruction	GREEN, PLASTIC, SOP-14	GREEN, PLASTIC, SO-14
Reach Compliance Code	unknown	unknown
series	LS	LS
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	10.2 mm	10.2 mm
Logic integrated circuit type	NAND GATE	NAND GATE
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	24 ns	24 ns
Maximum seat height	2 mm	2 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	5.3 mm	5.3 mm
