MI-MC24-IU-CC

Description
DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, PACKAGE-10
CategoryPower/power management    The power supply circuit
File Size583KB,6 Pages
ManufacturerVICOR
Websitehttp://www.vicorpower.com/
Download Datasheet Parametric View All

MI-MC24-IU-CC Overview

DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, PACKAGE-10

MI-MC24-IU-CC Parametric

Parameter NameAttribute value
package instructionPACKAGE-10
Reach Compliance Codecompliant
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage50 V
Minimum input voltage18 V
Nominal input voltage28 V
JESD-30 codeR-XXMA-X10
Maximum load regulation0.2%
Number of functions1
Output times1
Number of terminals10
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output voltage52.8 V
Minimum output voltage24 V
Nominal output voltage48 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
surface mountNO
technologyHYBRID
Temperature levelINDUSTRIAL
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum total power output200 W
Fine-tuning/adjustable outputYES
Base Number Matches1
MI-ComPAC™
DC-DC Switchers
50 – 300 Watts; 1 – 3 Outputs
Features & Benefits
Inputs 28 and 270V
DC
Transient protection: 28V
DC
designed
to meet MIL-STD-704A-F,
MIL-STD-1275A/B/D and DO-160E
One, two or three outputs
Outputs: 2 – 48V
DC
Up to 5W/in
3
High efficiency
Remote sense
ZCS power architecture
Low noise FM control
MIL-STD-461C/D/E EMI compliance

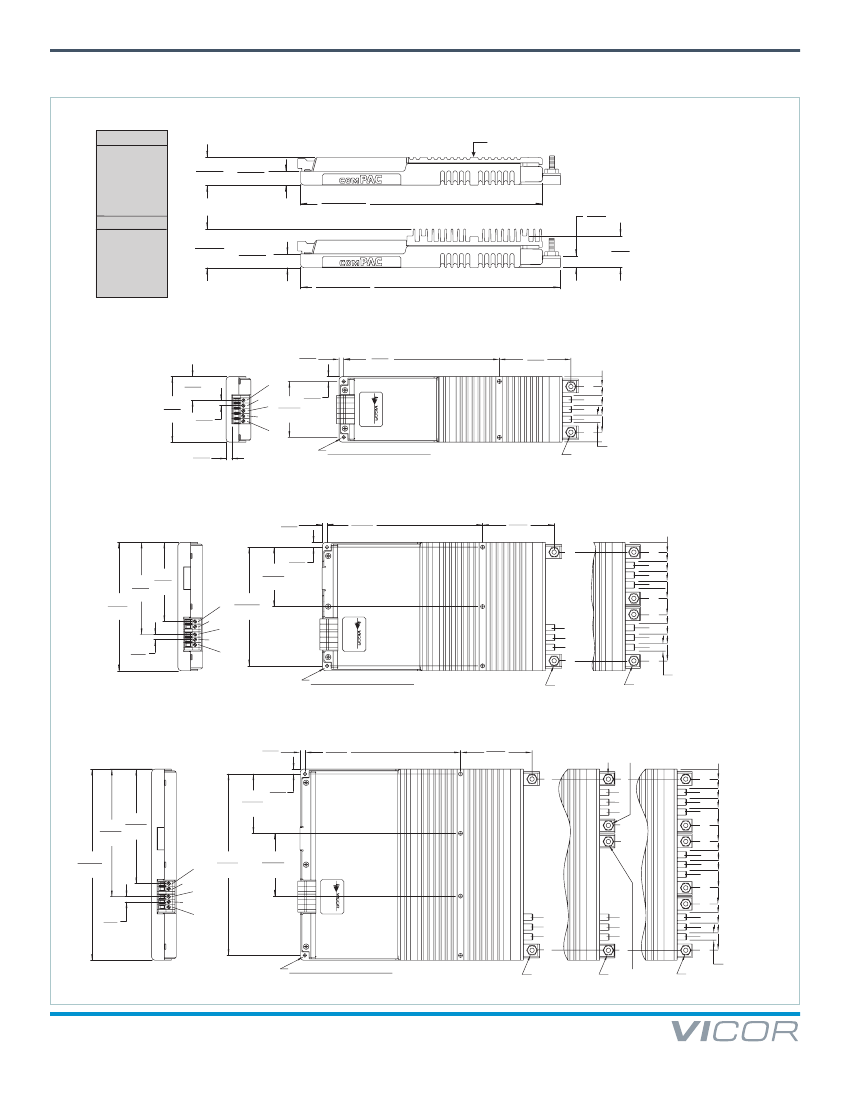

Configuration Chart
Configuration
Single Output
MI-LC
MI-MC
MI-NC
A
FF A
F A
Output Power
Number of
Modules
Dimensions
F
F
A
A
50 – 100W
150 – 200W
300W
1
2
3
Dual Output
MI-PC
MI-QC
A
FF A
F A
A
FF A
F A
F A
8.6 x 2.5 x 0.99in
[218,4 x 63,5 x 25,2mm]
8.6 x 4.9 x 0.99in
[218,4 x 124,5 x 25,2mm]
8.6 x 7.3 x 0.99in
[218,4 x 185,4 x 25,2mm]
8.6 x 4.9 x 0.99in
[218,4 x 124,5 x 25,2mm]
8.6 x 7.3 x 0.99in
[218,4 x 185,4 x 25,2mm]
8.6 x 7.3 x 0.99in
[218,4 x 185,4 x 25,2mm]
F
A
F F A
A F
A
100 – 200W
200 – 300W
2
3
A
FF F A A
F A
A
FF F A A
F A
Triple Output
MI-RC
A A
F F F A
150 – 300W
3
Product Description
The MI-ComPAC is a complete single,
dual, or triple output DC-DC power supply
that delivers up to 300W from inputs
of 28 or 270V
DC
.
The MI-ComPAC meets the conducted
emissions and conducted susceptibility
specifications of MIL-STD-461C/D/E and
designed to meet the input transient,
surge, and spike protection to the
most severe levels of MIL-STD-1275,
F
MIL-STD-704 and DO-160E.
Over/undervoltage lockout provides an
additional safeguard against potentially
damaging line conditions. The MI-ComPAC
also features a master disable.
A F A
A
FF F F A
Input
A
Voltage
Output Voltage
Transient
(1s)
60
475
Z
= 2V
[b]
1
= 12V
P
= 13.8V
2
= 15V
N
= 18.5V
3
= 24V
L
= 28V
J
= 36V
K
= 40V
4
= 48V
F
Nominal
2
= 28V
6
= 270V
A
Input Range Brownout
Full Power Voltage
[a]
18 – 50V
125 – 400V
16
N/A
F
A
Y
=
3.3V
[b]
5V
[b]
0
=
X
= 5.2V
W
= 5.5V
V
= 5.8V
T
=
R
=
6.5V
[c]
7.5V
[c]
Product Grade Case Temps. ºC
Grade
Operating
–40 to +85
–55 to +85
Storage
–55 to +100
–65 to +100
A
I
=
M
=
M
= 10V
Output Power / Current
F
A
V
OUT
5V
V
= 150W
S
= 300W
U
= 200W
V
OUT
< 5V
V
= 30A
U
=—
S
= 60A
Output Power / Current
F
A
V
OUT
5V
Y
= 50W
X
= 75W
W
= 100W
V
=—
V
OUT
< 5V
Y
= 10A
X
= 15A
W
= 20A
V
= 30A
Packaging Options
Conduction Cooled Models Available.
Add “–CC” to the end of the part number.
(Consult factory for details.)
Extended heat sink available add “–H1” to
end of part number.
[a]
[b]
Output Power / Current
F
A
V
OUT
5V
S
= 300W
P
=—
V
OUT
< 5V
S
=—
P
= 90A
Brownout voltage for output power de-rated to 75% of maximum
These units rated for 75% load from 125 to 150V: “V” power for “Z & Y” voltages,
“W power for “0” voltages
[c]
75W maximum module power for 28V input voltage
MI-ComPAC™ DC-DC
Page 1 of 6
Rev 1.5
02/2015
