10-68-3061 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 10-68-3061

10-68-3061: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size94KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

10-68-3061 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle

10-68-3061 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SPOX, POLARIZED
body width	0.126 inch
subject depth	0.25 inch
body length	1.209 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	5288
Plug contact pitch	0.197 inch
Plug information	10-63-3064
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLAR PIN POSITION
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-2
Evacuation force-minimum value	.973 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 6 circuits available

Polarization through varied center spacing between

circuits 1 and 2

Reference Information

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With: 5199-N housings

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 7.0A

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-2

Contact: Brass, 1.14mm (.045") square

Plating: Tin

Operating Temperature: -40 to +105˚C

5.00mm (.197") Pitch

SPOX

™

Header

5288-NA

Right Angle

3.00 to 7.92mm (.118 to .312") Pitch

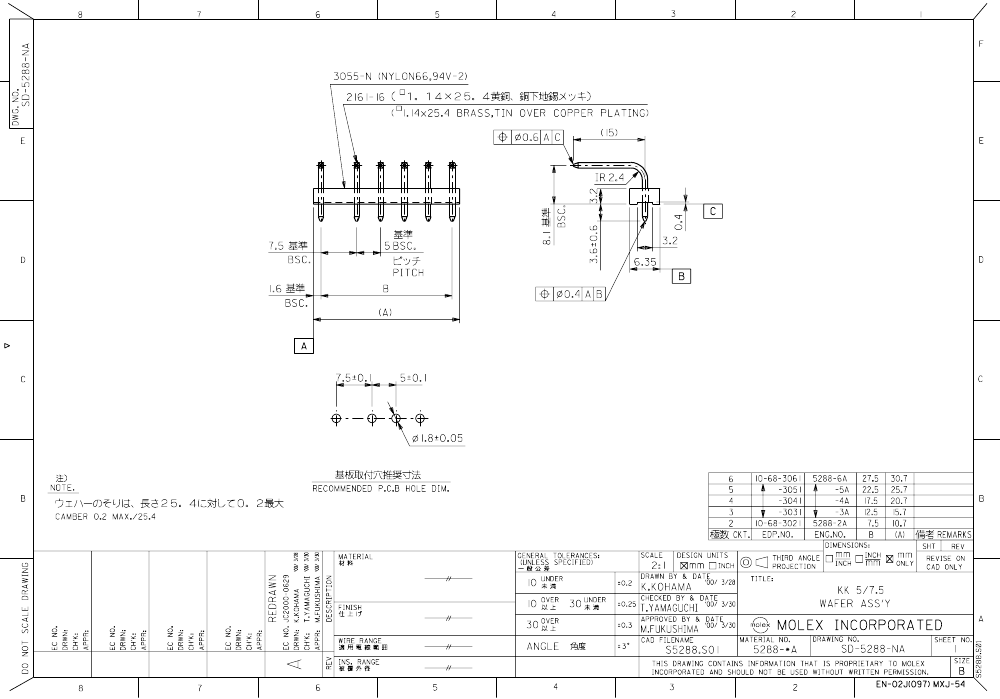

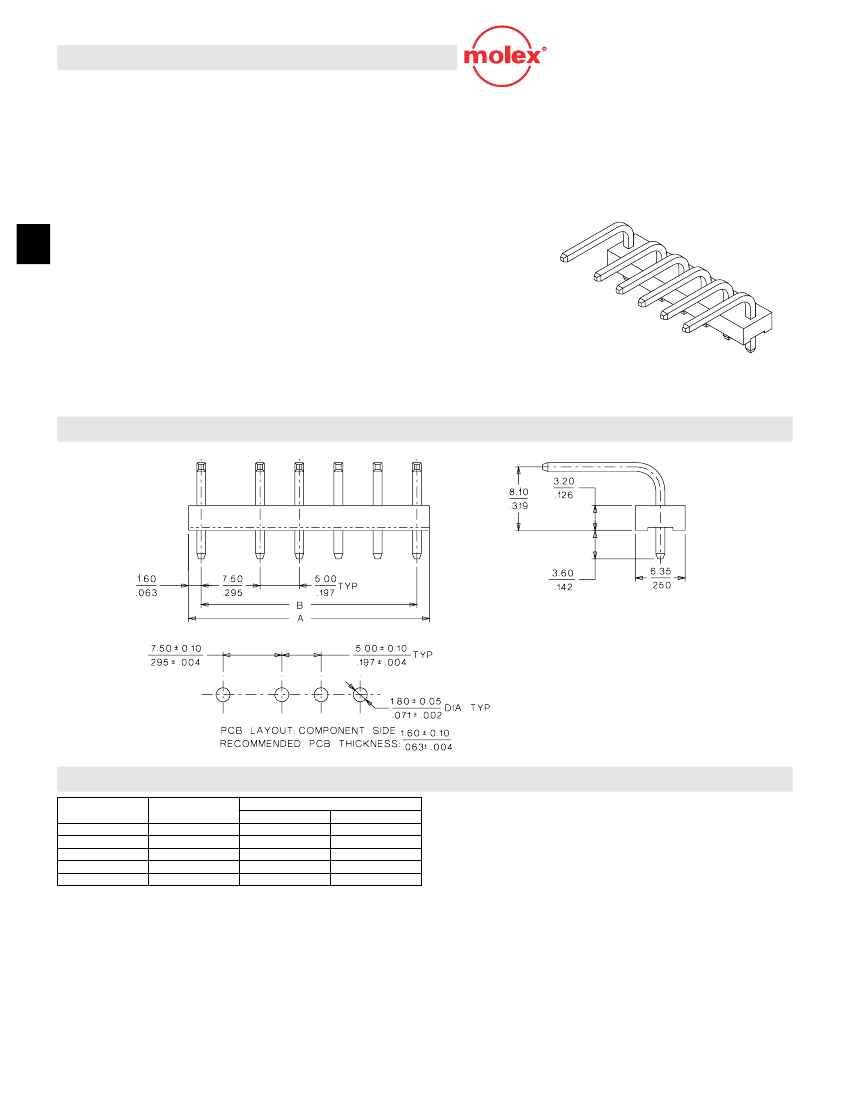

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

10-68-3021

10-68-3031

10-68-3041

10-68-3051

10-68-3061

10.70

15.70

20.70

25.70

30.70

Dimension

(.421)

(.618)

(.814)

(1.012)

(1.209)

7.50

12.50

17.50

22.50

27.50

(.295)

(.492)

(.689)

(.886)

(1.083)

D-54

MX01

10-68-3061 Related Products

	10-68-3061	10-68-3021	10-68-3031	10-68-3041
Description	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.295 inch Pitch, Solder Terminal, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	compli	compli	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	SPOX, POLARIZED	SPOX, POLARIZED	SPOX, POLARIZED	SPOX, POLARIZED
body width	0.126 inch	0.126 inch	0.126 inch	0.126 inch
subject depth	0.25 inch	0.25 inch	0.25 inch	0.25 inch
body length	1.209 inch	0.421 inch	0.618 inch	0.814 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	9.7856 N	9.7856 N	9.7856 N	9.7856 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	5288	5288	5288	5288
Plug contact pitch	0.197 inch	0.295 inch	0.197 inch	0.197 inch
Plug information	10-63-3064	10-63-3024	10-63-3034	10-63-3044
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	7 A	7 A	7 A	7 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.142 inch	0.142 inch	0.142 inch	0.142 inch
Terminal pitch	5 mm	5 mm	5 mm	5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	2	3	4
UL Flammability Code	94V-2	94V-2	94V-2	94V-2
Evacuation force-minimum value	.973 N	.973 N	.973 N	.973 N
Base Number Matches	1	1	1	1
polarization key	POLAR PIN POSITION	-	POLAR PIN POSITION	POLAR PIN POSITION
