ADC-301 datasheet, PDF - EEWORLD Datasheet

ADC-301: Description8-Bit Video Flash A/D Converter; CategoryAnalog mixed-signal IC converter; File Size1MB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

ADC-301 Overview

8-Bit Video Flash A/D Converter

Parameter Name	Attribute value
Maker	Murata
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum analog input voltage	0.1 V
Minimum analog input voltage	-2.2 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-PDIP-T28
length	37.8 mm
Maximum linear error (EL)	0.1953%
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

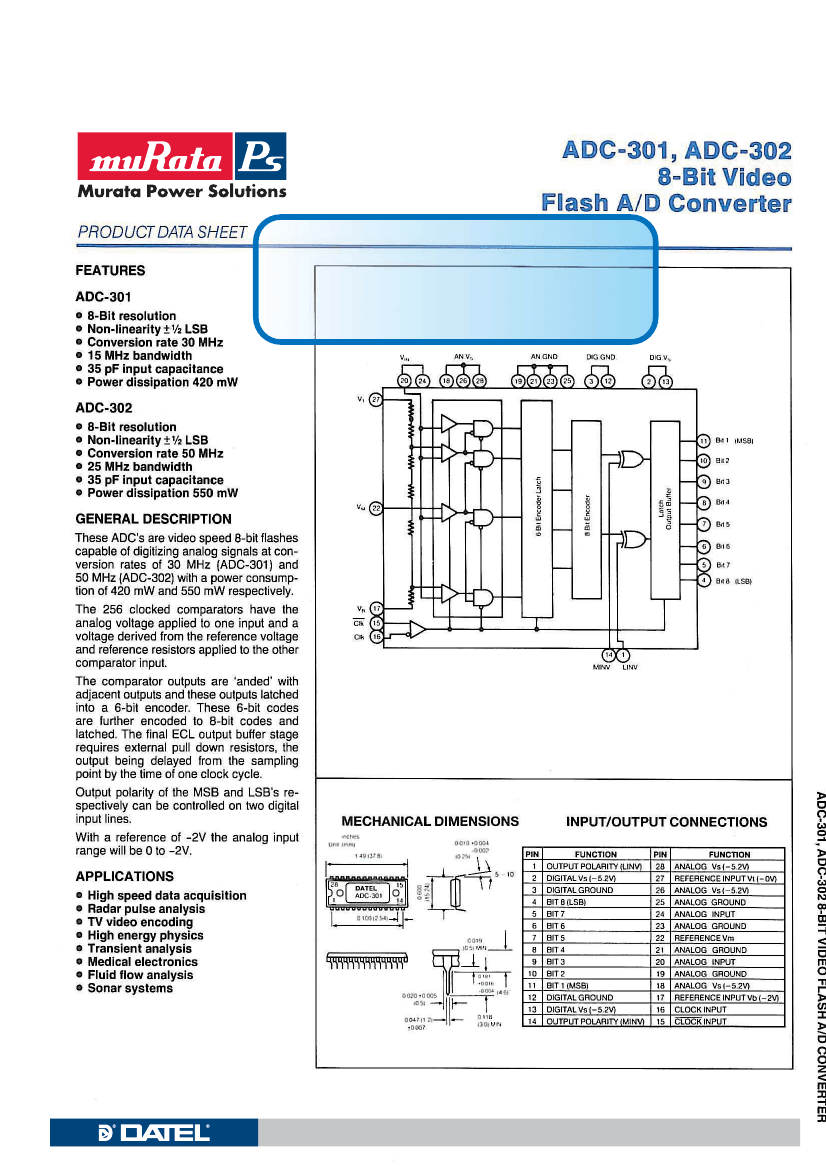

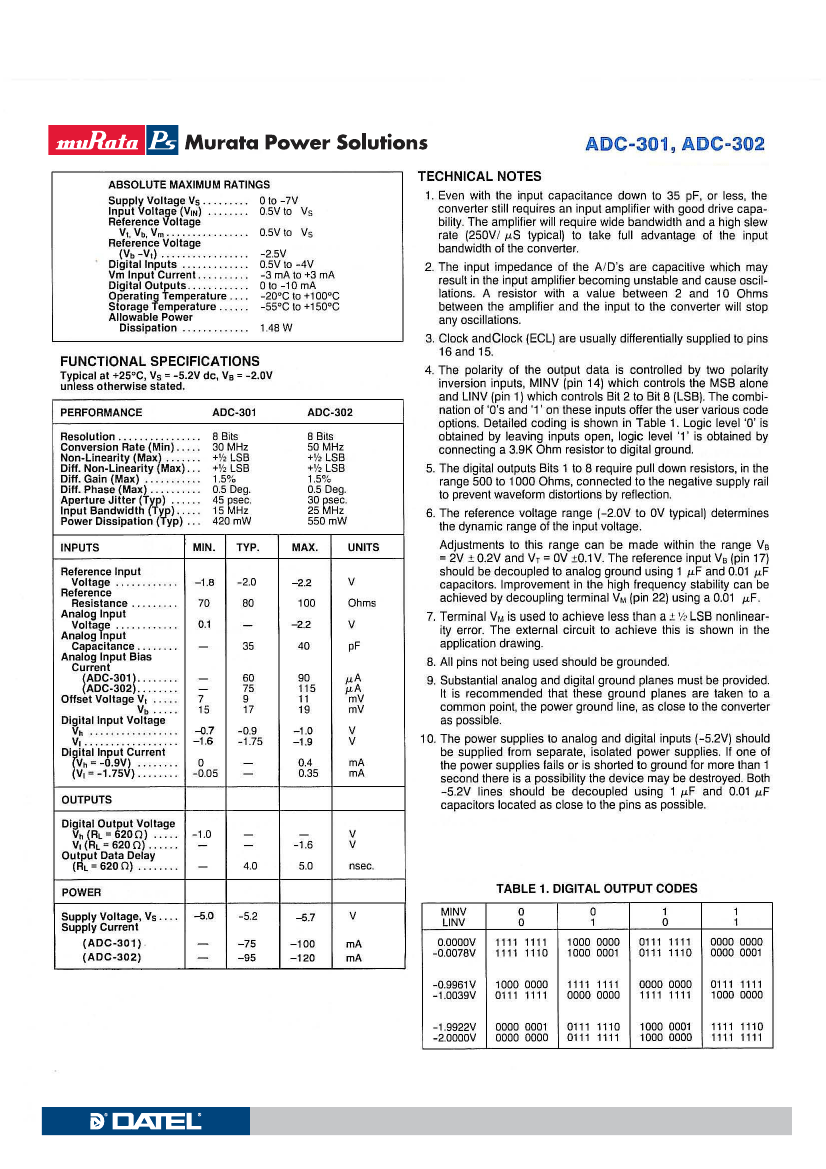

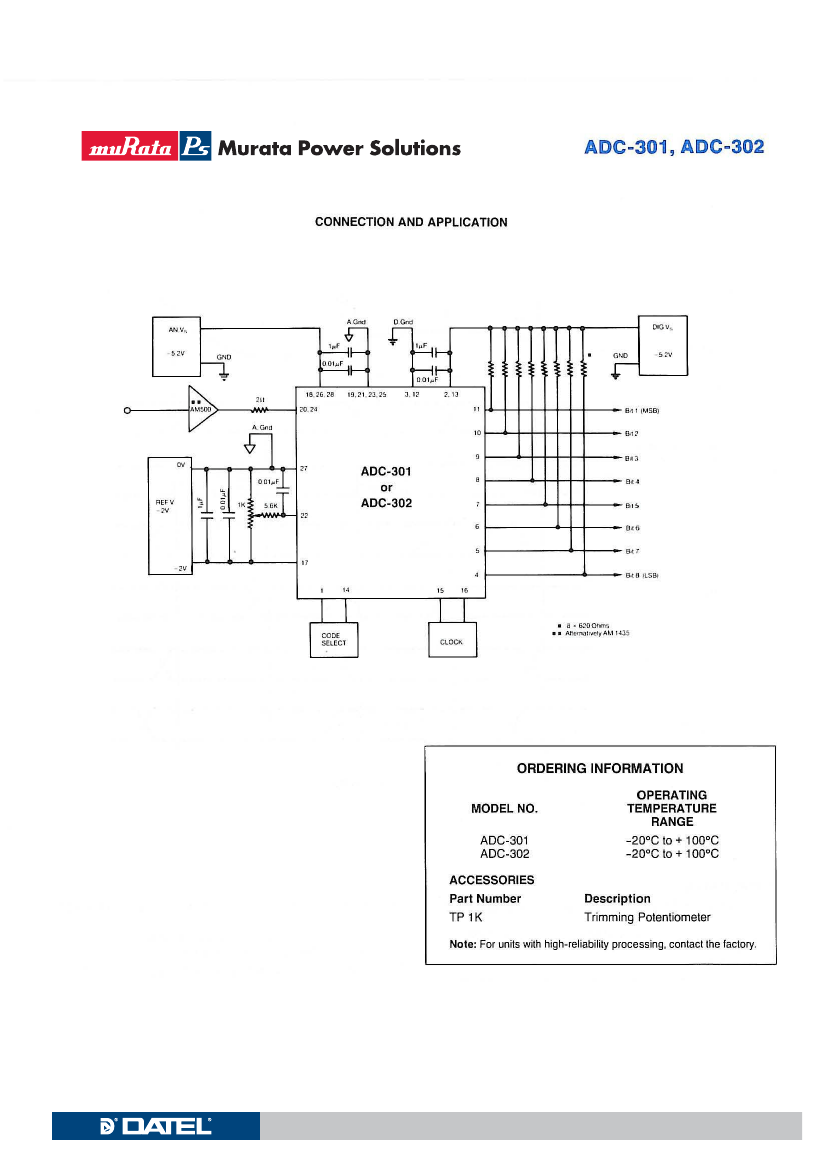

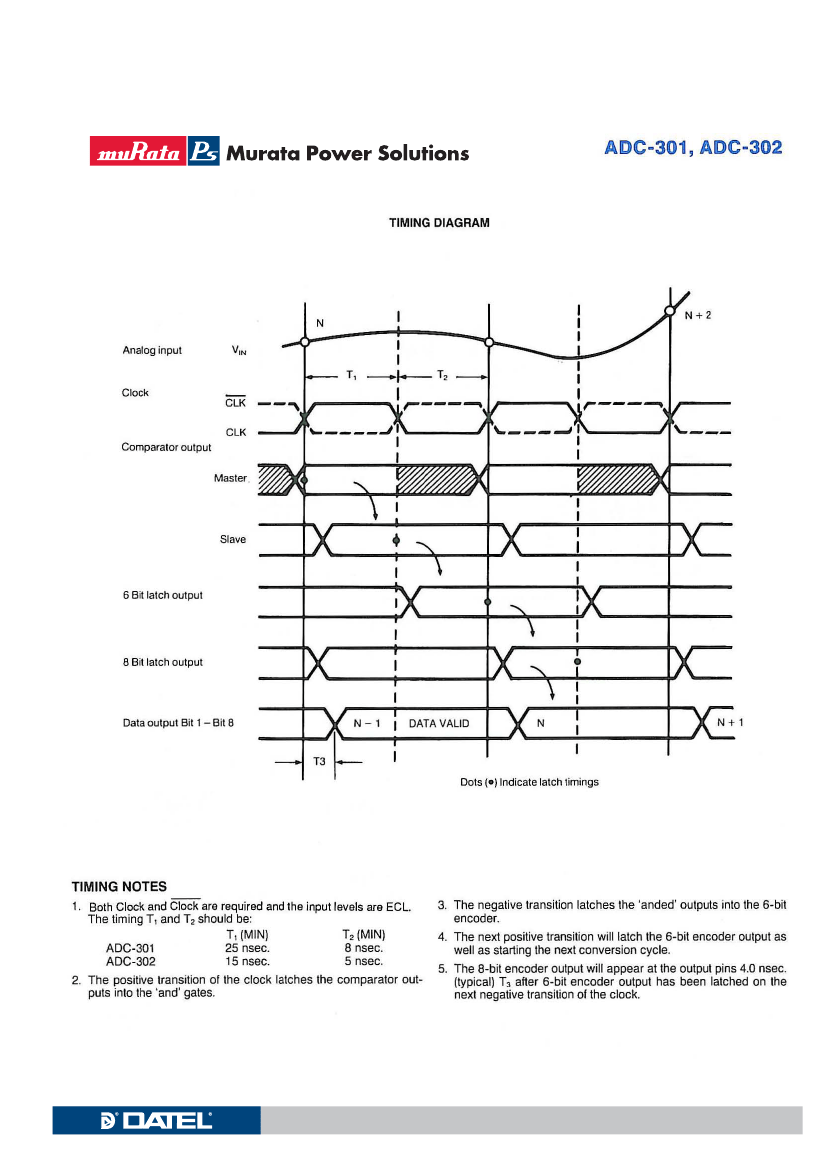

OBSOLETE PRODUCT

Contact Factory for Replacement Model

www.murata-ps.com

Technical enquiries

email: sales@murata-ps.com, tel:

+1 508 339 3000

	ADC-301	ADC-302
Description	8-Bit Video Flash A/D Converter	8-Bit Video Flash A/D Converter
Maker	Murata	Murata
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	28	28
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Maximum analog input voltage	0.1 V	0.1 V
Minimum analog input voltage	-2.2 V	-2.2 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-PDIP-T28	R-PDIP-T28
length	37.8 mm	37.8 mm
Maximum linear error (EL)	0.1953%	0.1953%
Nominal negative supply voltage	-5.2 V	-5.2 V
Number of analog input channels	1	1
Number of digits	8	8
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-20 °C	-20 °C
Output bit code	BINARY	BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Temperature level	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
