1-104344-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-104344-9

1-104344-9: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,21 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-104344-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-104344-9	-	-	View	Buy Now

1-104344-9 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,21 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK

1-104344-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	BREAKAWAY TYPE
body width	0.092 inch
subject depth	0.09 inch
body length	2.084 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	104344
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	21
Base Number Matches	1

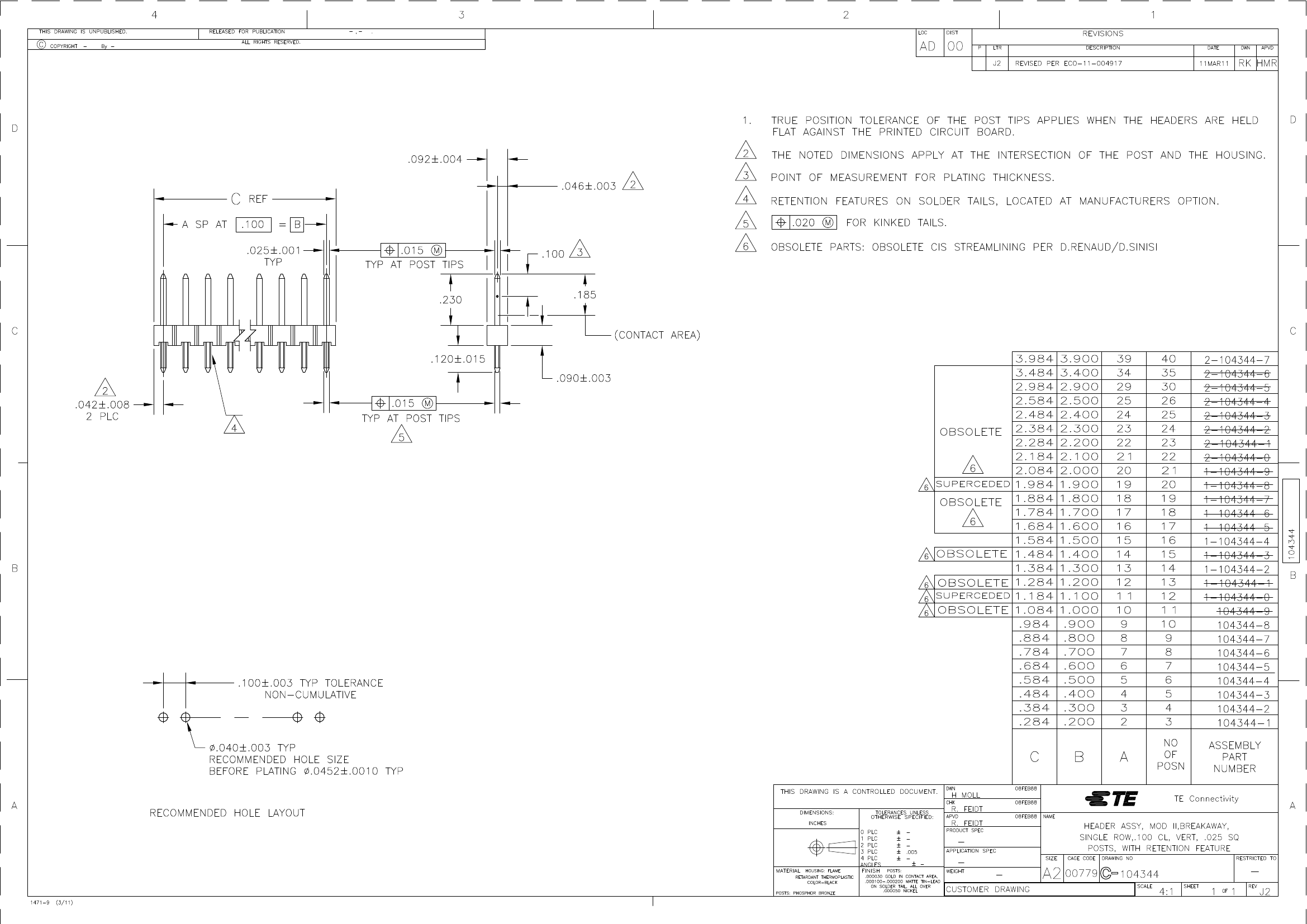

Preview

Download Datasheet

View All

1-104344-9 Related Products

	1-104344-9	RM222-040-272-1966	RM222-040-502-6506	RM222-050-242-2002	RM222-050-242-9165
Description	HEADER CONNECTOR,PCB MNT,RECEPT,21 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.075 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.075 inch Pitch, Solder Lug Terminal, Hole .099-.111, Plug	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.075 inch Pitch, Hole .099-.111, Plug	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.075 inch Pitch, Hole .099-.111, Plug
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compliant	compliant	compliant	compliant
Other features	BREAKAWAY TYPE	WITH MOUNTING EARS	WITH MOUNTING EARS	WITH MOUNTING EARS	WITH MOUNTING EARS
body width	0.092 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.09 inch	0.585 inch	0.585 inch	0.585 inch	0.585 inch
body length	2.084 inch	2.262 inch	2.262 inch	2.637 inch	2.637 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	SQ PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
insulator material	THERMOPLASTIC	POLYETHYLENE	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	104344	RM2	RM2	RM2	RM2
Plug contact pitch	0.1 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Number of rows loaded	1	2	2	2	2
Plating thickness	30u inch	50u inch	50u inch	50u inch	50u inch
reliability	COMMERCIAL	MIL-C-55302	MIL-C-55302	MIL-C-55302	MIL-C-55302
Total number of contacts	21	40	40	50	50
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	-
Installation type	BOARD	BOARD	PANEL	-	-
Number of connectors	ONE	ONE	ONE	-	-
PCB row number	1	2	2	-	-
PCB contact pattern	RECTANGULAR	STAGGERED	STAGGERED	-	-
Terminal length	0.12 inch	0.375 inch	0.14 inch	-	-
Termination type	SOLDER KINKED LEADS	WIRE WRAP	SOLDER LUG	-	-
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead
Objectid	-	1151741198	1150742150	1150240967	1150242290
ECCN code	-	EAR99	EAR99	EAR99	EAR99
Contact completed and terminated	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
JESD-609 code	-	e0	e0	e0	e0
MIL compliance	-	YES	YES	YES	YES
Match contact row spacing	-	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Installation option 1	-	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
polarization key	-	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED
