LC75S-470M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> LC75S-470M

Preview

LC75S-470M: DescriptionGeneral Purpose Inductor, 47uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size23KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric View All

LC75S-470M Overview

General Purpose Inductor, 47uH, 20%, 1 Element, SMD

LC75S-470M Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.24 Ω
Nominal inductance(L)	47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LC75S
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.75 A
self resonant frequency	12 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	NO LEAD
Test frequency	2.5 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

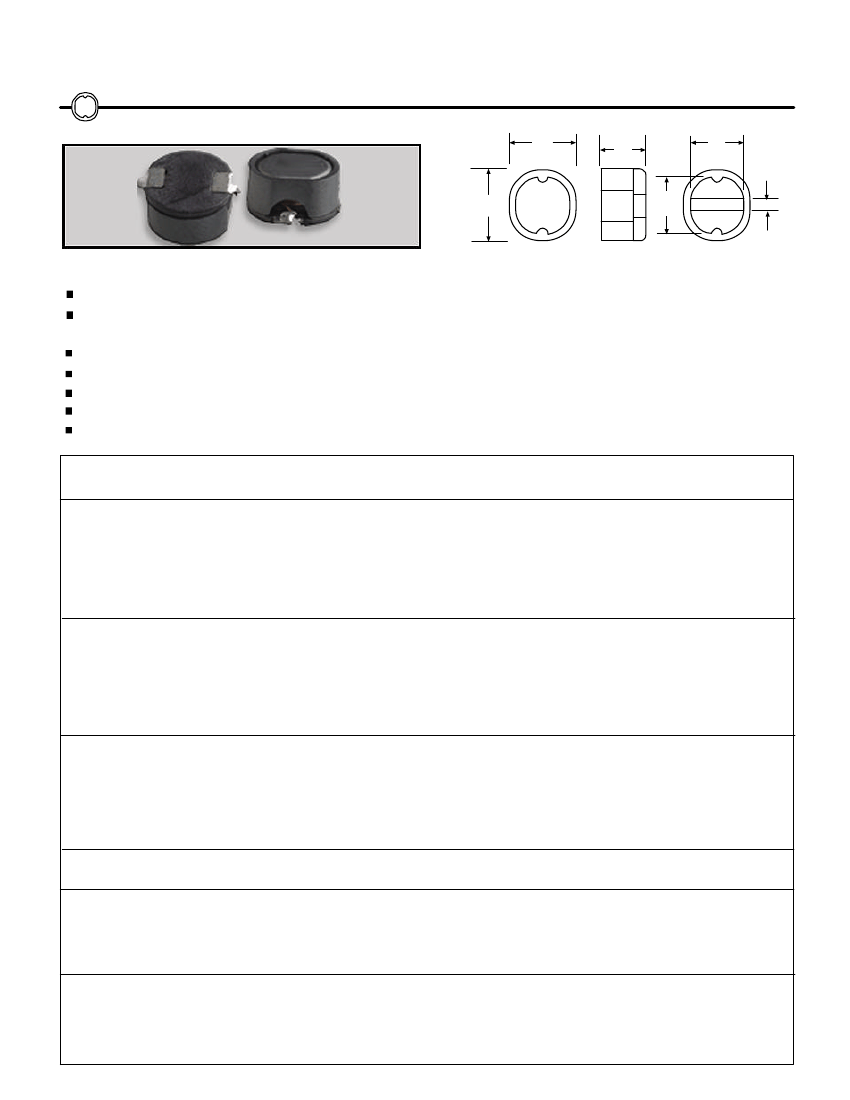

LC75S

SMD Shielded

Power Inductors

7.0

+/- 0.4

4.5

+/- 0.5

6.9

Typ.

6.2

Typ.

2.1

Typ.

7.8

+/- 0.4

FEATURES

High current rating

Low core loss for high frequency power application

APPLICATIONS

DC/DC Converters

Computers

Telecommunications equipment

Filters

LCD display

PART

NUMBER

LC75S-100M

LC75S-120M

LC75S-150M

LC75S-180M

LC75S-220M

LC75S-270M

LC75S-330M

LC75S-390M

LC75S-470M

LC75S-560M

LC75S-680M

LC75S-820M

L ±20%

µH

10

12

15

18

22

27

33

39

47

56

68

82

TEST

FREQUENCY

(MHz)

2.5

TEST

FREQUENCY

(kHz)

LC75S-101M

LC75S-121M

LC75S-151M

LC75S-181M

LC75S-221M

LC75S-271M

100

120

150

180

220

270

1.0

CHARACTERISTICS

INDUCTANCE RANGE 1 µH to 68 µH.

TOLERANCE 10% over entire range.

CURRENT RATING Current to cause maximum 10% of

inductance drop, or 40°C temperature rise.

OPERATING TEMPERA

TURE -30 to +100°C.

°C

SELF RESONANT

FREQUENCY

TYPIC AL (MHz)

29

26

21

20

19

17

16

15

12

11

10

DC RESISTANCE

MAXIMUM

(OHMS)

0.07

0.08

0.09

0.11

0.12

0.17

0.19

0.21

0.24

0.32

0.37

0.40

RATED DC

CURRENT

MAXIMUM (AMPS)

1.64

1.50

1.34

1.22

1.10

1.00

0.90

0.83

0.75

0.69

0.63

0.57

9

7.5

7

6.5

5

4.5

0.54

0.62

0.86

0.97

1.31

1.46

0.52

0.47

0.42

0.38

0.35

0.31
