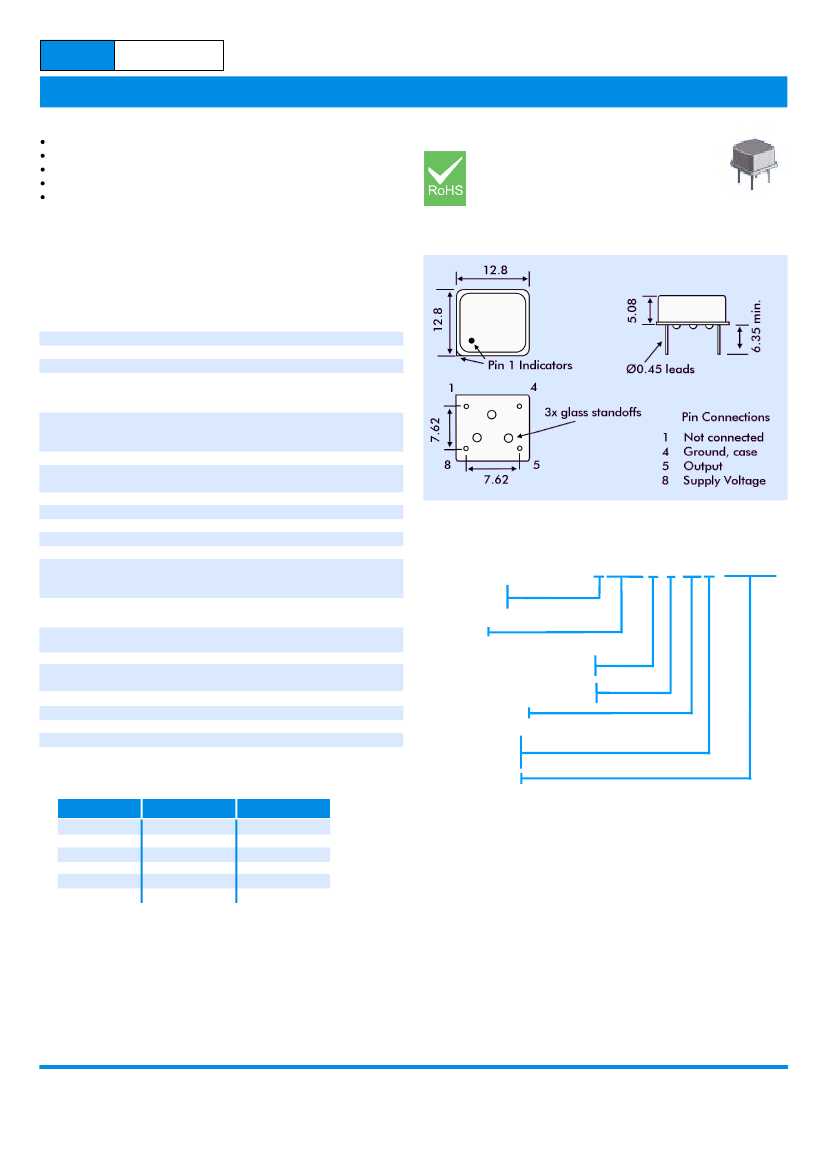

EURO
QUARTZ
8 pin Dual-in-Line
Frequency range 60MHz to 240MHz
LVDS Output
Supply Voltage 3.3 VDC
Phase jitter 0.2ps typical
Pull range from ±30ppm to ±150ppm
DESCRIPTION
GDA14 VCXOs are packaged in an industry-standard 8 pin dual-in-
line package. Typical phase jitter for GDA series VCXOs is 0.2 ps.
Output is LVDS. Applications include phase lock loop, SONET/ATM,
set-top boxes, MPEG , audio/video modulation, video game consoles
and HDTV.
SPECIFICATION
Frequency Range:
Supply Voltage:
Output Logic:
RMS Period Jitter
60.0MHz ~ 120MHz:
120MHz ~ 240MHz:
Peak to Peak Jitter
60.0MHz ~ 120MHz:
120MHz ~ 240MHz:
Phase Jitter:
Initial Frequency Accuracy:
Output Voltage HIGH (1):
Output Voltage LOW (0):
Pulling Range:
Control Voltage Range:
Temperature Stability:
Output Load:
GDA8 LVDS VCXO
60.0MHz to 240.0MHz
OUTLINE & DIMENSIONS
60.0MHz to 240.0MHz
3.3 VDC ±5%
LVDS
2.5ps typical
4.7ps typical
17.5ps typical
24.5ps typical
0.2ps typical
Tune to the nominal frequency
with Vc= 1.65 ±0.2VDC
1.4 Volts typical
1.1 Volts typical
From ±30ppm to ±150ppm
1.65 ±1.35 Volts
See table
50W into Vdd or Thevenin equiv.
(Terminating resistors required
on all outputs)
0.5ns typ., 0.7ns max.
20% Vdd to 80% Vdd
50% ±5%
(Measured at Vdd-1.25V)
10ms maximum, 5ms typical
55mA typical, 60mA maximum
(for 202.50MHz)
2kV maximum
-55° to +150°C
±2ppm per year maximum
Not inplemented
-
4 pin Package
Fully compliant or non-compliant
PART NUMBERING
Example:
3GDA8G-B-80N-60.000
Rise/Fall Times:
Duty Cycle:
Start-up Time:
Current Consumption:
Static Discharge Protection:
Storage Temperature:
Ageing:
Enable/Disable:
RoHS Status:
FREQUENCY STABILITY
Supply Voltage
3 = +3.3V
Series Designator
GDA8
RoHS Status
G = RoHs compliant
Blank = RoHS non-compliant
Stability over temperature range
(See table)
Pullability in ±ppm
Pullability determinator
N = minimum
M = maximum
T = Typical
Frequency in MHz
Stability Code Stability ±ppm Temp. Range
A
25
0°~+70°C
B
50
0°~+70°C
C
100
0°~+70°C
D
25
-40°~+85°C
E
50
-40°~+85°C
F
100
-40°~+85°C
If non-standard frequency stability is required
Use ‘I’ followed by stability, i.e. I20 for ±20ppm
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
