cpi
|
3cW7000F7/ yu-106
cpi | 4cW50,000J
3cW7000F7/yu-106

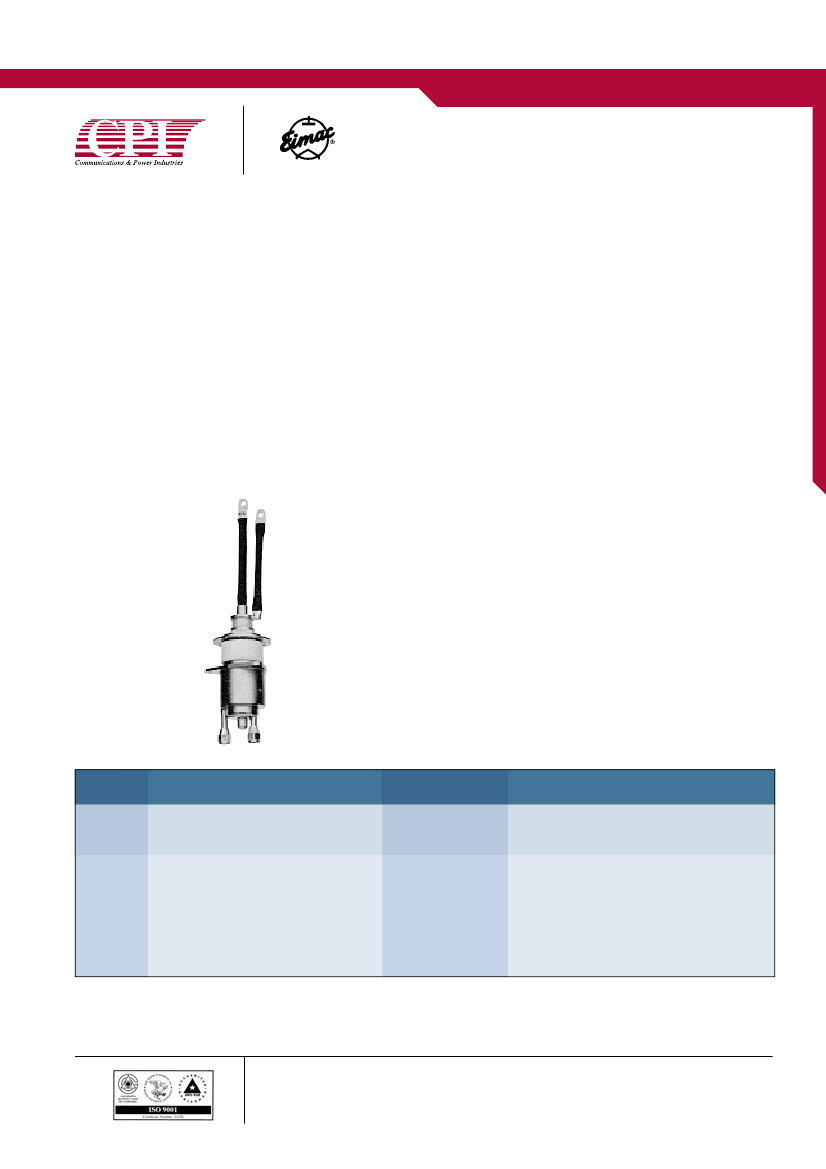

The 3CW7000F7/YU-106 is a ceramic/metal,
water cooled, high-mu triode intended for use as
an amplifier, oscillator, or modulator, or in voltage
regulator applications. Its maximum rated anode
dissipation is 7000 watts. The 3CW7000F7/YU-
106 is a water-cooled version of the air cooled
3CX3000F7, and is identical except for the addition
of flexible leads on the base for grid and filament
connections, which can simplify socketing in low-
frequency operations. Operation with zero grid
bias in many applications offers circuit simplicity
by eliminating the bias supply. Grounded grid
operation is attractive since a power gain of over
20 times can be obtained.
chaRacteRistics
Plate Dissipation (Max.)
Screen Dissipation (Max.)
Grid Dissipation (Max.)
Frequency for Max. rating (CW)
Amplification Factor
Filament/Cathode
Voltage
Current
Capacitance
Input
Output
Feedthrough
Capacitance
Input
Output
Feedthrough
Cooling
Base
Air Socket
Air Chimney
Boiler
Length
Diameter
Weight
7,000 Watts
---
225 Watts
75 MHz
160
Thoriated Tungsten
7.5 Volts
51.5 Amps
Grounded Cathode
38.0 pf
0.6 pf
24 pf
---
--- pf
--- pf
--- pf
Water and Forced Air
Flexible Filament
---
---
---
12.56 in; 31.9 mm
3.63 in; 9.22 cm
4.1 lb; 1.9 kg
type of service
MaxiMuM Ratings
plate
Voltage
(Volts)
5,000
plate
current
(amps)
2.5
ypical OpeRatiOn
t
plate
current
(amps)
1.5
Drive
Output
power power
(Watts) (kiloWatts)
435
5.5
class of
Operation
c
plate
screen
Voltage Voltage
(Volts)
(Volts)
4,800
---
RF industrial oscillator or amplifier
The values listed above represent specified limits for the product and are subject to change. The data should be used for basic
information only. Formal, controlled specifications may be obtained from CPI for use in equipment design.
For information on
this and other CPI products, visit our website at: www.cpii.com,
or contact: CPI MPP Division, Eimac Operations, 607 Hansen Way, Palo Alto, CA 94303
telephone
:
1(800) 414-8823.
