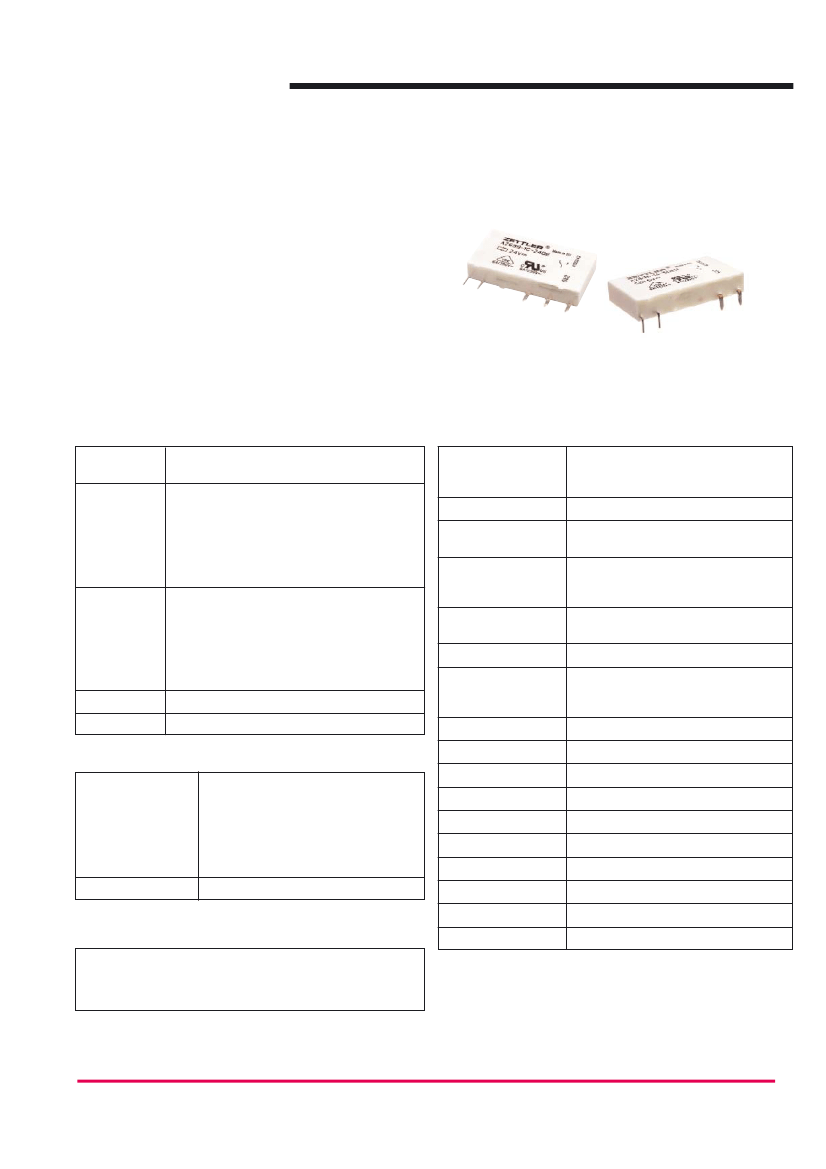

AZ6991
SENSITIVE
SUBMINIATURE RELAY
FEATURES
•
•
•
•
•
•
•
•
•
•
Extremely small (5mm)
6 Amp switching capability
High sensitivity, 95 mW pickup
Dielectric strength 4000 Vrms contact to coil
Isolation spacing greater than 8 mm
Reinforced insulation, EN 60730-1 (VDE 0631, part 1)
EN 60335-1 (VDE 0700, part 1)
Coils up to 60 VDC
Epoxy sealed version available
UL, CUR file E43203
VDE file 40020561
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: 180 W or 1500 VA
Max. switched current: 6 A
Max. switched voltage: 150 VDC* or 400 VAC
*
Note: If switching voltage is greater than 30 VDC,
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 X 10
7
operations
1 X 10
5
at 5 A, 250 VAC
5 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
special precautions must be taken.
Please contact the factory.
Rated Load
UL, CUR
Dielectric Strength
1000 Vrms between open contacts
(at sea level for 1 min.)
4000 Vrms contact to coil
6000 V surge, contact to coil
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
100 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 5% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (158°F)
-40°C (-40°F) to 105°C (221°F)
1 mm DA at 10–500 Hz
5g
P.B.T. polyester 94V-0
Tinned copper alloy, P.C.
260°C (500°F)
5 seconds
80°C (176°F)
30 seconds
6 grams
20 per plastic tube / 1000 per carton box
6 A at 277 VAC resistive
6 A at
30 VDC resistive
R300 Pilot Duty
6 A at
6 A at
250 VAC resistive
30 VDC resistive
VDE
Material
Resistance
Silver nickel
,
gold plating available
< 50 milliohms initially
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
95 mW
0.9 W at 20°C (68°F) ambient
Terminals
Max. Solder Temp.
Max. Solder Time
20°C (36°F) at nominal coil voltage
Max. 105°C (221°F)
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
4. Specifications subject to change without notice.
Packing unit in pcs
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2007-04-19
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ6991
RELAY ORDERING DATA
COIL SPECIFICATIONS
Nominal Coil
VDC
5
12
24
48
Must Operate
VDC
3.75
9.0
18.0
36.0
Max. Continuous
VDC
11.2
26.8
53.7
100.0
Coil Resistance
Ôhm ± 10%
147
848
3,390 (±
15%)
10,600 (±
15%)
16,600 (±
15%)
1 Form A
AZ6991–1A–5D
AZ6991–1A–12D
AZ6991–1A–24D
AZ6991–1A–48D
AZ6991–1A–60D
ORDER NUMBER*
1 Form C
AZ6991–1C–5D
AZ6991–1C–12D
AZ6991–1C–24D
AZ6991–1C–48D
AZ6991–1C–60D
60
45.0
120.0
* Add suffix “E” at the end of order number for sealed version.
Add suffix “A” at the end of order number for gold plated contacts.
Add suffix “H” at the end of order number for horizontal mounting.
MECHANICAL DATA
PC BOARD LAYOUT
1.102
[28.0]
.197
[5.0]
.148
[3.75]
.591
[15.0]
.020
[0.5]
2 x ø .039
[ø 1.0]
5 x .138
[3.5]
2 x .02
[0.5]
3 x .039
[1.0]
5 x .02
[0.5]
.466
[11.34]
.197
[5.0]
.197
[5.0]
.075
[1.9]
.075
[1.9]
.602
[15.3]
.047
[1.2]
3 x ø .051
[ø 1.3]
Vertical Mount
Vertical Mount
Horizontal Mount
Note: Mounting hole diameters and center to center dimensions
are the same for both vertical and horizontal mounting version
1.102
[28.0]
.050
[1.26]
.610
[15.5]
.591
[15.0]
WIRING DIAGRAM
.197
[5.0]
Form A
1 2
4
5
1 2
Form A
4
5
5 x .118
[3.0]
2x .02
[0.5]
3 x .039
[1.0]
5 x .02
[0.5]
Form C
1 2
1 2
3
4
5
Form C
3
4
5
Horizontal Mount
Vertical Mount
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
Horizontal Mount
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2007-04-19
Junkersstrasse 3, D-82178 Puchheim, Germany
