BT-C511RD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BT-C511RD

Preview

BT-C511RD: Description7 Seg Numeric LED Display, 3-Character, 20mm; CategoryLED optoelectronic/LED photoelectric; File Size83KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BT-C511RD Overview

7 Seg Numeric LED Display, 3-Character, 20mm

BT-C511RD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	TD-08, 28 PIN
Reach Compliance Code	unknown
color	RED
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height	14.224 mm
Maximum forward current	0.04 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

SINCE 1981

Part No.

Digit Size

Common

Anode

BT-A531RD

BT-A535RD

BT-A535RE

BT-A532RD

BT-A533RD

BT-A534RD

BT-A536RD

BT-A53DRD

BT-A511RD

BT-A515RD

BT-A515RE

BT-A512RD

BT-A513RD

BT-A514RD

BT-A516RD

BT-A51DRD

Common

Cathode

BT-C531RD

BT-C535RD

BT-C535RE

BT-C532RD

BT-C533RD

BT-C534RD

BT-C536RD

BT-C53DRD

BT-C511RD

BT-C515RD

BT-C515RE

BT-C512RD

BT-C513RD

BT-C514RD

BT-C516RD

BT-C51DRD

Chip

Material/Emitted

Color

GaAsP/Red

GaP/ Bright Red

GaP/ Green

GaAsP/GaP/ Yellow

GaAsP/GaP/ Hi-Eff.Red

GaAsP/GaP/ Orange

GaAlAs/ SH Super Red

GaAlAs/ DH Super Red

GaAsP/Red

GaP/ Bright Red

GaP/ Green

GaAsP/GaP/ Yellow

GaAsP/GaP/ Hi-Eff.Red

GaAsP/GaP/ Orange

GaAlAs/ SH Super Red

GaAlAs/ DH Super Red

Peak

Wave

Length

p(nm)

655

700

568

585

635

660

655

700

568

585

635

660

Absolute Maximum

Ratings

Pd

If

Ifp

(nm) (mw) (mA) (mA)

40

90

30

35

45

20

40

90

30

35

45

20

80

40

80

40

80

40

15

30

40

15

30

200

50

150

200

50

150

Electro-optical

Data(At 10mA)

Vf

(v)

Typ. Max.

1.7 2.0

2.2

2.1

2.0

1.7

2.2

2.1

2.0

1.7

2.5

2.0

2.5

Iv. Typ.

Per.Seg.

(mcd)

1.0

1.5

3.0

2.0

3.0

7.0

8.0

0.6

1.2

3.0

2.0

3.0

6.0

7.0

Drawing

No.

0.52"

Three-Digit

TD-07

0.56"

Three-Digit

TD-08

TD-07

8B

7.6(.299)

BT- A53xRD

C

13.20(.520)

+

12.7x2=25.4(1.00)

37.7(1.484)

17.40(.685)

D1

A

15.10(.594)

F

E

G

B

C

D

DP

D2

D3

PIN.1

E1.6(.063)

0.9(.035)

BT-A53xRD

3,28

D1

8,23

D2

13,18

D3

8.9(.350)

E0.50(.020)

3.00(.118)MIN.

2.5x14=35.0(1.38)

A B C D E F

G DP A B C D E F

G DP

27 26 4

2

1 29 30 5 22 21 9

7

6 24 25 10 17 16 14 12 11 19 20 15

TD-08

37.50(1.476)

8.10(.319)

8B

BT- A51xRD

C

D1

A

F

14.20(.560)

+

PIN 1.

E1.7(.067)

18.90(.744)

15.24(.600)

E

D

3,26

D1

8.00(.315)

E0.50(.020)

3.00(.118)MIN

BT-A51xRD

19

D2

G

C

DP

18

D3

B

D2

D3

2.54x13=33.02(1.300)

25 24 4 2 1 27 28 5 21 20 8 7 6 23 22 9 16 15 13 11 10 17 12 14

A B C D E F G DP A B C D E F G DP A B C D E F G DP

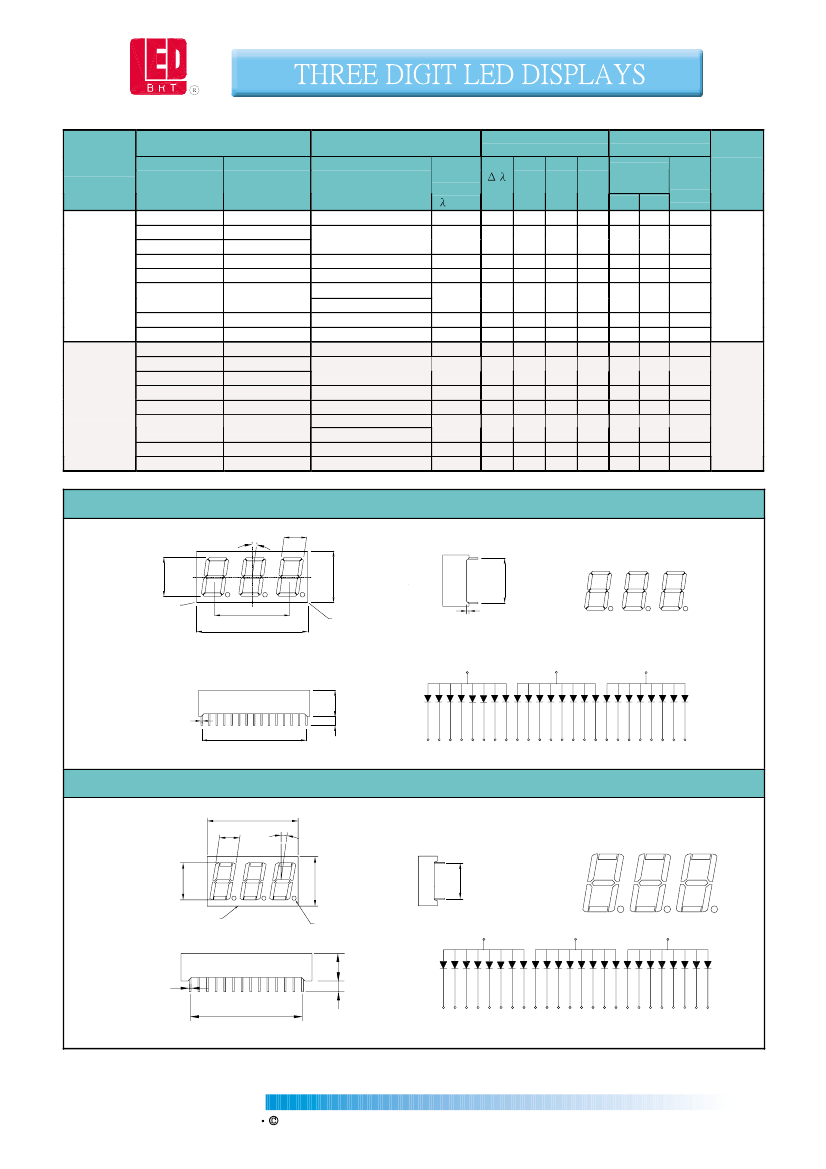

NOTES: 1.All Dimensions are in millimeters(inches).

3.Specifications are subject to change without notice.

2.Tolerance isA0.25mm(.010D).

4.NP:No Pin.

5.NC:No Connect.

BRIGHT LED ELECTRONICS CORP.

886-2-29591090 FAX:886-2-29547006

2000 BRIGHT LED ELECTRONICS CORP. Specifications subject to change without notice.

www.brightled.com.tw

BT-C511RD Related Products

	BT-C511RD	BT-A514RD	BT-A515RD
Description	7 Seg Numeric LED Display, 3-Character, 20mm	7 Seg Numeric LED Display, 3-Character, 20mm	7 Seg Numeric LED Display, 3-Character, 20mm
Reach Compliance Code	unknown	unknown	unknown
Configuration	COMMON CATHODE, 3 DIGITS WITH DECIMAL POINT	Common Anode	Common Anode
Display height	14.224 mm	20 mm	20 mm
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY
Maker	BRIGHT	-	BRIGHT
Base Number Matches	1	1	-
Is it Rohs certified?	-	incompatible	incompatible
color@wavelength	-	Orange/Red	Red
Maximum forward voltage	-	2.6 V	2.6 V
JESD-609 code	-	e0	e0
Number of characters	-	3	3
peak wavelength	-	635 nm	700 nm
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
