SDA175JHFTXV: DescriptionBridge Rectifier Diode, 3 Phase, 3A, 600V V(RRM), Silicon, HERMETIC SEALED, PLASTIC PACKAGE-5; CategoryDiscrete semiconductor diode; File Size113KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SDA175JHFTXV Overview

Bridge Rectifier Diode, 3 Phase, 3A, 600V V(RRM), Silicon, HERMETIC SEALED, PLASTIC PACKAGE-5

SDA175JHFTXV Parametric

Parameter Name	Attribute value
package instruction	R-PUFM-X5
Contacts	5
Reach Compliance Code	compliant
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PUFM-X5
Maximum non-repetitive peak forward current	25 A
Number of components	6
Phase	3
Number of terminals	5
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, CA 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

SDA175HF series

30 nsec

3.0 Amp

Three Phase Bridge

Rectifier Assembly

600 – 900 Volts

FEATURES:



Reverse Recovery Time: 30 ns Max

Average Output Current: 3.0 Amps

PIV: 600 to 900 Volts

Hermetically Sealed Internal Discretes

Aluminum Case

Thermal Conductive Epoxy Encapsulated

Available in Higher Voltages

Available in Ultra Fast, Fast, and Standard

Recovery

Designer’s Data Sheet

Part Number/Ordering Information

SDA175 __ HF __

│

└

│

└

Screening

= Not Screened

TX = TX Level

TXV = TXV Level

S = S Level

Reverse Recovery

HF = Hyper Fast

Family/Voltage

J = 600 V

K = 700 V

L = 800 V

M = 900 V

Electrical

Characteristics

Part Number

SDA175J

SDA175K

SDA175L

SDA175M

NOTES:

Peak

Inverse

Voltage

(per leg)

Average DC

Output Current

=Case Temp

Reverse

Recovery

Time

Peak Forward

Surge Current

(1 Cycle)

Maximum Forward

Voltage

(per leg) @ 1.0 ADC

Maximum

Reverse Current

(per leg)

@ PIV

Volts

600

700

800

900

50ºC

Amps

3.0

100ºC

Amps

2.4

Max

Amps

Volts

1.9

25ºC

μA

100ºC

μA

250

For ordering information, price, and availability - contact factory.

Screening based on MIL-PRF-19500. Screening flows available on request.

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

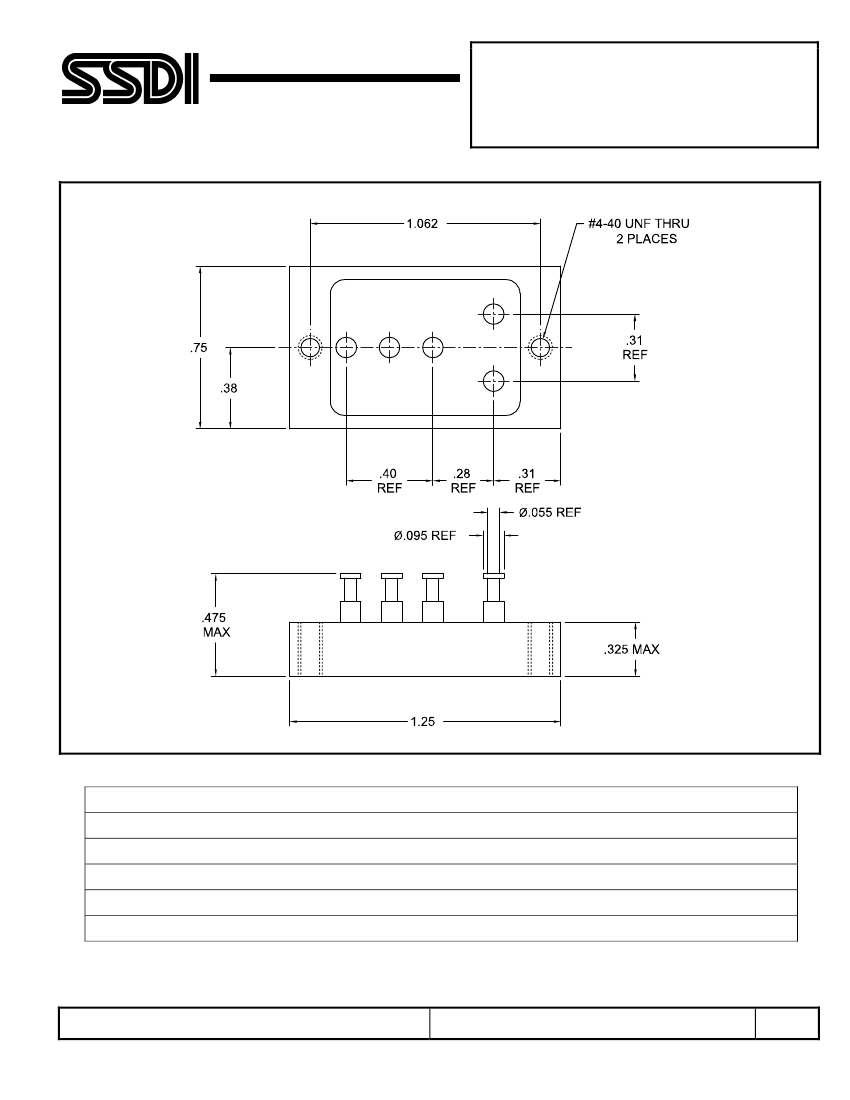

DATA SHEET #: RA0106A

DOC
