Continuous Wave (CW) Single-Frequency IR Laser
NPRO® 125/126 Series
Key Features
• 1319 or 1064 nm outputs available
• Fiber-coupled output
• Proven nonplanar ring oscillator (NPRO) design
• Superior power stability
• Narrow linewidth
• Tunability
• Ease of use
• Ideal for OEM applications
Applications
• Fiber-optic sensing
• Coherent communications
• Remote antenna links
• Optical heterodyne
• Lidar oscillator
• Passive sonar
The JDSU NPRO 125/126 diode-pumped lasers produces CW, single-frequency
output at either 1064 nm or 1319 nm. Key features include fiber-optic or free-space
output, narrow linewidth, low noise, frequency tunability, and adjustable power.
The NPRO 125/126 lasers are used for a variety of applications including fiber-
optic sensing, coherent communications, remote antenna links, optical
heterodyne, lidar oscillators, and passive sonar.
At the heart of each NPRO 125/126 laser is JDSU’s unique, monolithic, NPRO
laser cavity delivering true single-frequency laser output. Since its initial
development in 1985, NPRO technology has demonstrated a record of reliability
and top-level performance.
Amplitude noise for a typical NPRO 125/126 laser is <0.05% rms over the range
from 10 Hz to 2 MHz, and less than -165 dB/Hz above 10 MHz (shot noise
limited). This performance is achieved by combining an inherently quiet laser
oscillator with a noise reduction circuit which effectively eliminates the laser's
natural relaxation oscillation.
NPRO lasers are built in a compact, OEM-friendly package. All necessary control
electronics are onboard the laser head allowing for easy integration with existing
systems or new product platforms.
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
CW SINGLE-FREQUENCY IR LASER
2

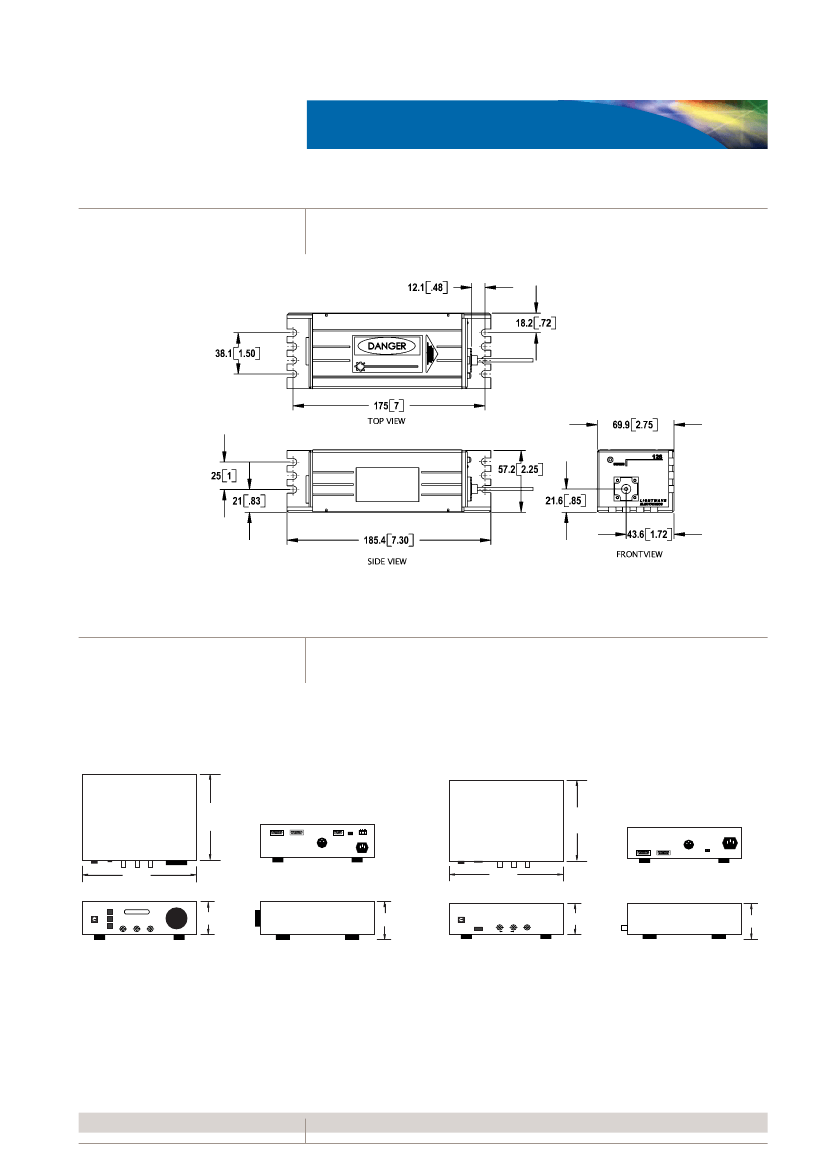

NPRO 125 Laser Head
(Specifications in mm [inches] unless otherwise noted.)
Power Supply
(Specifications in inches unless otherwise noted.)
125/6-OPN-PS
125/6-OPN-PS-A
Top
Back
Laser
Diagnostic
- 5V
9
8.75
RS232
S pa
S pa
n/E
Back
DC POWER
RET
+ 5V
Interlock
RET
+ 5V
Mi
9 60
0/1
20
0
re
re
XT
DC POWER
Laser
Diagnostic
- 5V
AC IN
Interlock
10
10
Side
3.50
4
ON
SLOW
STANDBY LASE
FAST
POWER
Side
2.50
3
FREQUENCY
ADJUST
Front
Front
CW SINGLE-FREQUENCY IR LASER
3
NPRO 125 Specifications
1
Parameter
Wavelength
CW power
Spatial mode
Longitudinal mode
Linewidth
Coherence length, calculated
Frequency drift
2
Amplitude noise, 10 Hz to 2 MHz
Power drift over 8 hours
3
Thermal tuning range, continuous
Thermal tuning range, total
Thermal tuning rate
Piezo tuning range, 0 to 100 V
Piezo response bandwidth, small signal
Warm-up time, from cold start (AC off)
Dimensions
Laser head size (W x H x D)
Weight
Fiberoptic
Fiber supplier and part number
Fiber pigtail length
Fiber pigtail connector alignment
Polarization, linear
Mode field diameter, NA
1. Fiber-coupled output.
125N-1319-xxx
1319 nm
>100, 150, 200 mW
TEM
00
Single frequency
<5 kHz/ms
>1000 m
<50 MHz/hour
<0.05% rms
<5% peak-to-peak
>10 GHz
>30 GHz
>1 GHz/second
>30 MHz
>30 kHz
1 minute
6 x 8 x 20 cm
1.2 kg (2.65 lbs)
Fujikura SM13-P7/125-UV/UV-400
>2 m
FC/PC, key parallel to slow axis
>30:1, parallel to connector key
9.5 µm, 0.11
125N-1064-xxx
1064 nm
>25 mW
TEM
00
Single frequency
<5 kHz/ms
>1000 m
<50 MHz/hour
<0.05% rms
<5% peak-to-peak
>10 GHz
>30 GHz
>1 GHz/second
>30 MHz
>30 kHz
1 minute
6 x 8 x 20 cm
1.2kg (2.65 lbs)
3M FS-PM-5121
>2 m
FC/PC, key parallel to slow axis
>30:1, parallel to connector key
7.2 µm, 0.11
2. Base temperature constant to within <2 °C, total range, after 30 minute warm-up.
3. Base temperature constant to within <5 °C, total range, after 30 minute warm-up.
CW SINGLE-FREQUENCY IR LASER
4
NPRO 126 Specifications
1
Parameter
Wavelength
CW power
Spatial mode
Longitudinal mode
Linewidth
Coherence length, calculated
Frequency drift
2
Amplitude noise, 10 Hz to 2 MHz
Power drift over 8 hours
3
Thermal tuning range, continuous
Thermal tuning range, total
Thermal tuning rate
Piezo tuning range, 0 to 100 V
Piezo response bandwidth, small signal
Polarization
Beam roundness
Waist location, from shutter housing
Waist diameter, 1/e
2
Vertical
Horizontal
Beam divergence, full angle
Vertical
Horizontal
Warm-up time, from cold start (AC off)
Dimension
Laser head size (W x H x D)
Weight
1. Free-space output
126N-1319-xxx
1319 nm
>100, 250, 350 mW
TEM
00
Single frequency
<5 kHz/ms
>1000 m
<50 MHz/hour
<0.05% rms
<5% peak-to-peak
>10 GHz
>30 GHz
>1 GHz/second
>30 MHz
>30 kHz
300:1, vertical
<20% elliptical
5 cm nominal outside laser
0.35 mm nominal
0.46 mm nominal
3.9 mrad nominal
3.0 mrad nominal
1 minute
6 x 8 x 20 cm
1.2 kg (2.65 lbs)
126N-1064-xxx
1064 nm
>100, 200, 500, 700 mW
TEM
00
Single frequency
<5 kHz/ms
>1000 m
<50 MHz/hour
<0.05% rms
<5% peak-to-peak
>10 GHz
>30 GHz
>1 GHz/second
>30 MHz
>30 kHz
300:1
<20% elliptical
5 cm nominal outside laser
0.38 mm nominal
0.50 mm nominal
4.4 mrad nominal
3.4 mrad nominal
1 minute
6 x 8 x 20 cm
1.2kg (2.65 lbs)
2. Base temperature constant to within <2 °C, total range, after 30 minute warm-up.
3. Base temperature constant to within <5 °C, total range, after 30 minute warm-up.
NPRO 12x Integration Requirements
Parameter
Input and Ambient
Voltage, frequency
Power
Operating ambient temperaure
Relative humidity, non-condensing
Storage temperature
Specification
90 to 250 V AC, 47 to 63 Hz)
<550 W (400 W typical)
15 to 35 °C
10 to 80%
-20 to 55 °C
CW SINGLE-FREQUENCY IR LASER
5
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: 125N-1319-100 (fiber-coupled, 1319 nm, 100 mW laser head) and 125/6-OPN-PS (microprocesser-based power supply)
Laser Head
Product Code
125N-1319-100
125N-1319-150
125N-1319-200
125N-1064-025
1
126N-1064-100
126N-1064-200
126N-1064-500
126N-1064-700
126N-1319-100
126N-1319-250
126N-1319-350
Description
NPRO 125, CW fiber-coupled, 1319
nm,
100 mW laser head
NPRO 125, CW fiber-coupled, 1319
nm,
150 mW laser head
NPRO 125, CW fiber-coupled, 1319
nm,
200 mW laser head
NPRO 125, CW fiber-coupled, 1064
nm,
25 mW laser head
NPRO 126, CW free-space, 1064
nm,
100 mW laser head
NPRO 126, CW free-space, 1064
nm,
200 mW laser head
NPRO 126, CW free-space, 1064
nm,
500 mW laser head
NPRO 126, CW free-space, 1064
nm,
700 mW laser head
NPRO 126, CW free-space, 1319
nm,
100 mW laser head
NPRO 126, CW free-space, 1319
nm,
250 mW laser head
NPRO 126, CW free-space, 1319
nm,
350 mW laser head
1. Uses 3M PM fiber instead of Fujikura
Power Supply
Product Code
125/6-OPN-PS
125/6-OPN-PS-A
Description
Microprocessor-based
Analog-based
Safety Labels
DANGER
VISIBLE AND / OR INVISIBLE LASER RADIATION
- AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
DANGER
INVISIBLE LASER RADIATION-AVOID
DIRECT EXPOSURE TO BEAM
MAXIMUM OUTPUT POWER 250mW CW
WAVELENGTH 1064nm OR 1319nm
CLASS IIIb LASER PRODUCT
B1
MAXIMUM OUTPUT POWER 2W CW
WAVELENGTH .5µm AND / OR 1µm *
* see manual
CLASS IV LASER PRODUCT
B1
All statements, technical information and recommendations related to the products herein are based upon information believed to be
reliable or accurate. However, the accuracy or completeness thereof is not guaranteed, and no responsibility is assumed for any
inaccuracies. The user assumes all risks and liability whatsoever in connection with the use of a product or its application. JDSU reserves
the right to change at any time without notice the design, specifications, function, fit or form of its products described herein, including
withdrawal at any time of a product offered for sale herein. JDSU makes no representations that the products
herein are free from any intellectual property claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are
trademarks of JDS Uniphase Corporation. Other trademarks are the property of their respective holders. ©2006 JDS Uniphase
Corporation. All rights reserved. 10143149 Rev. 001 02/06 NPRO125126.DS.CL.AE
