PALCE630H-15PC datasheet, PDF - EEWORLD Datasheet

PALCE630H-15PC: DescriptionProgrammable Logic Device, 15ns, PAL-Type, CMOS, PDIP24; CategoryProgrammable logic devices Programmable logic; File Size1MB，19 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

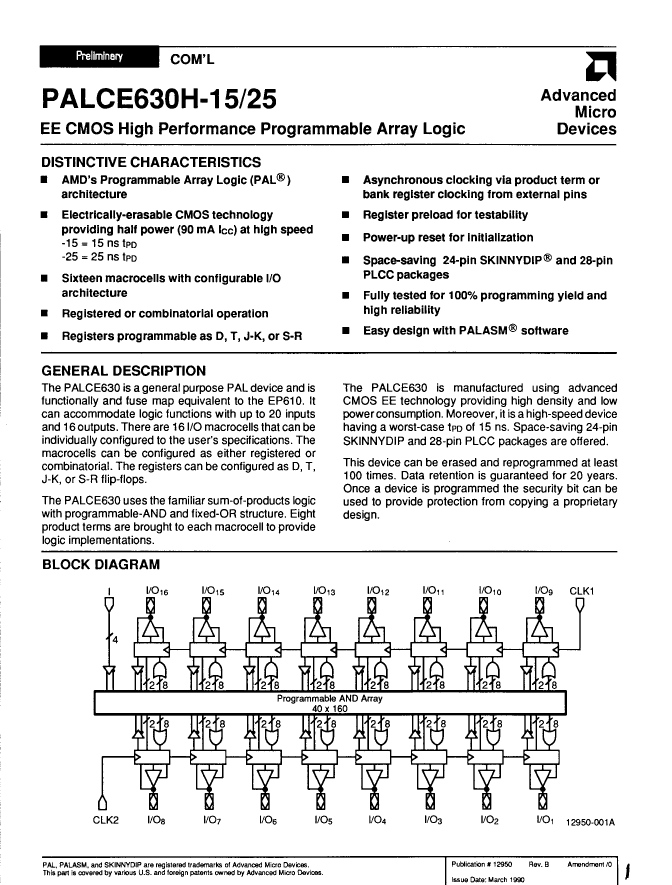

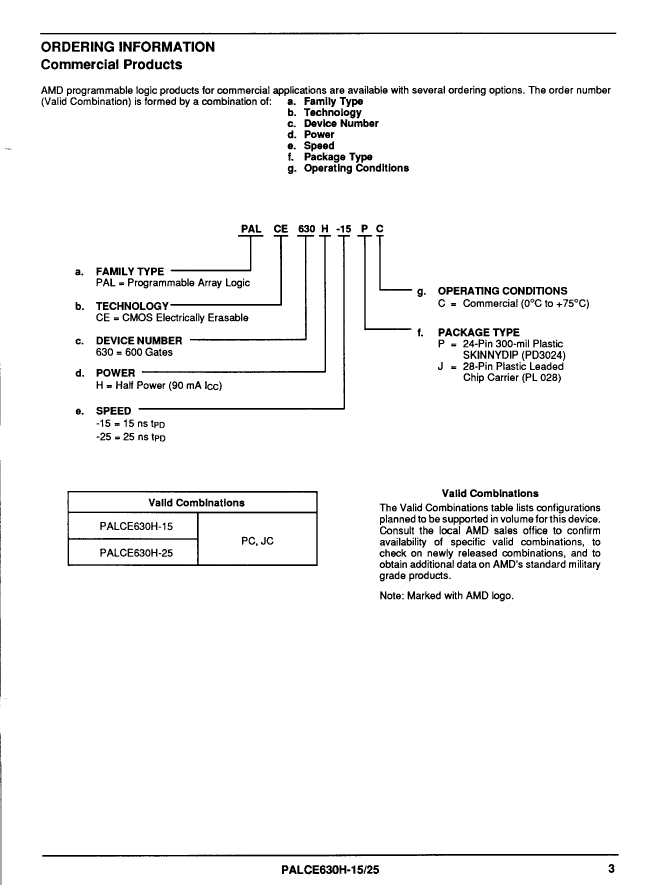

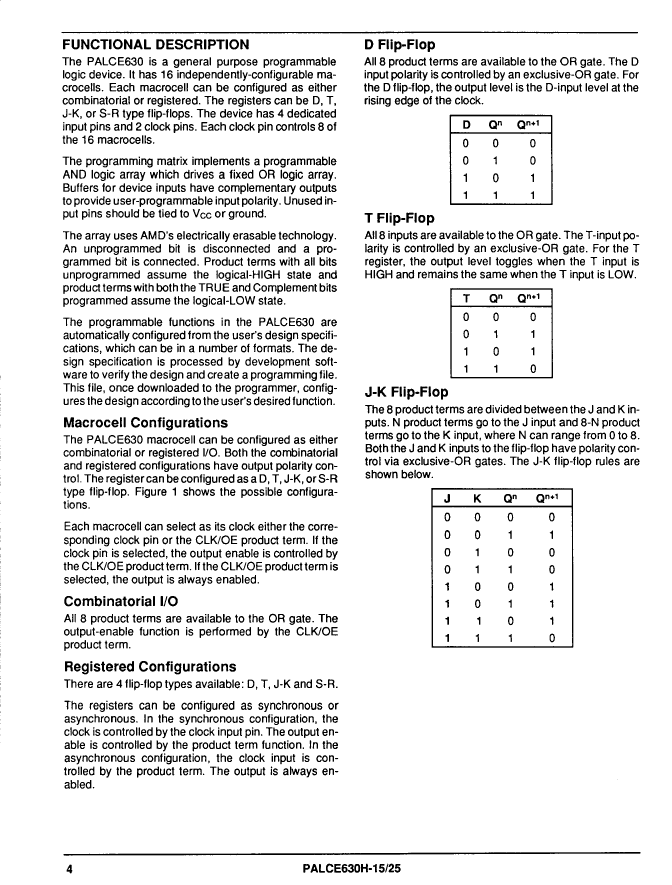

PALCE630H-15PC Overview

Programmable Logic Device, 15ns, PAL-Type, CMOS, PDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Architecture	PAL-TYPE
maximum clock frequency	50 MHz
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Number of entries	20
Output times	16
Number of product terms	160

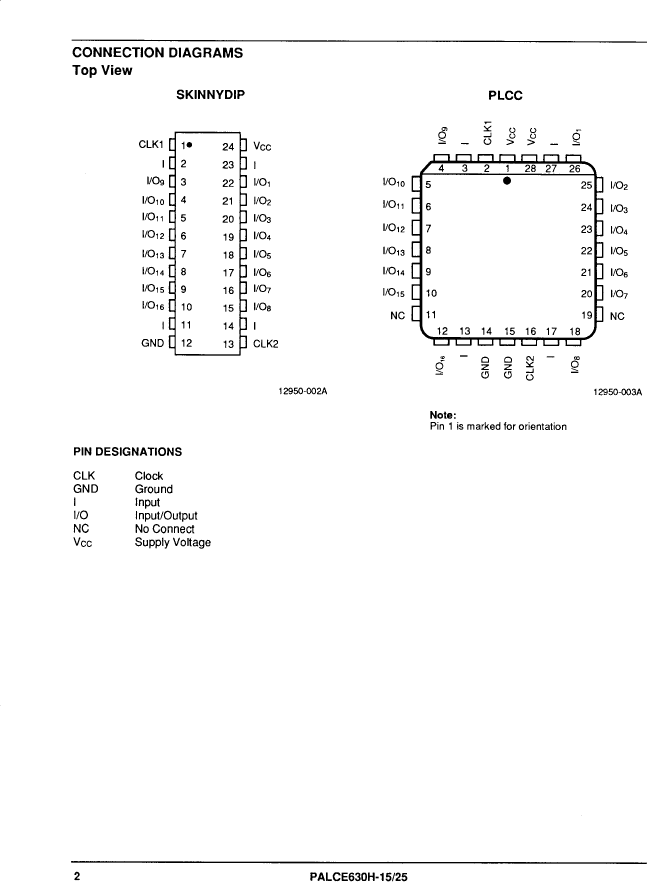

Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature

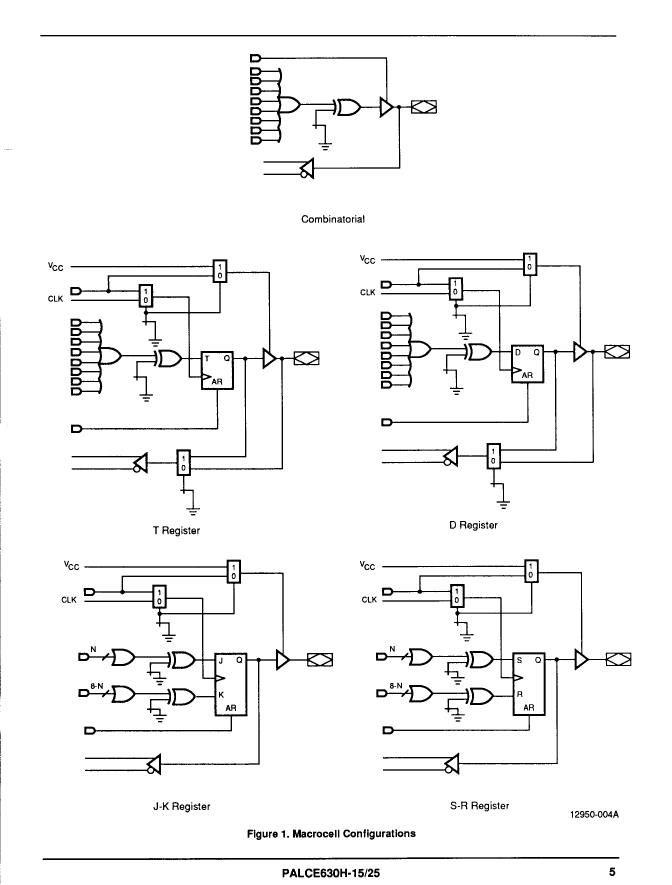

Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
propagation delay	15 ns
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	PALCE630H-15PC	PALCE630H-25JC
Description	Programmable Logic Device, 15ns, PAL-Type, CMOS, PDIP24	Programmable Logic Device, 25ns, PAL-Type, CMOS, PQCC28
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP24,.3	QCCJ, LDCC28,.5SQ
Reach Compliance Code	unknown	unknown
Architecture	PAL-TYPE	PAL-TYPE
maximum clock frequency	50 MHz	37 MHz
JESD-30 code	R-PDIP-T24	S-PQCC-J28
JESD-609 code	e0	e0
Number of entries	20	20
Output times	16	16
Number of product terms	160	160
Number of terminals	24	28
Maximum operating temperature	70 °C	70 °C
Output function	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ
Encapsulate equivalent code	DIP24,.3	LDCC28,.5SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
power supply	5 V	5 V
propagation delay	15 ns	25 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Base Number Matches	1	1
