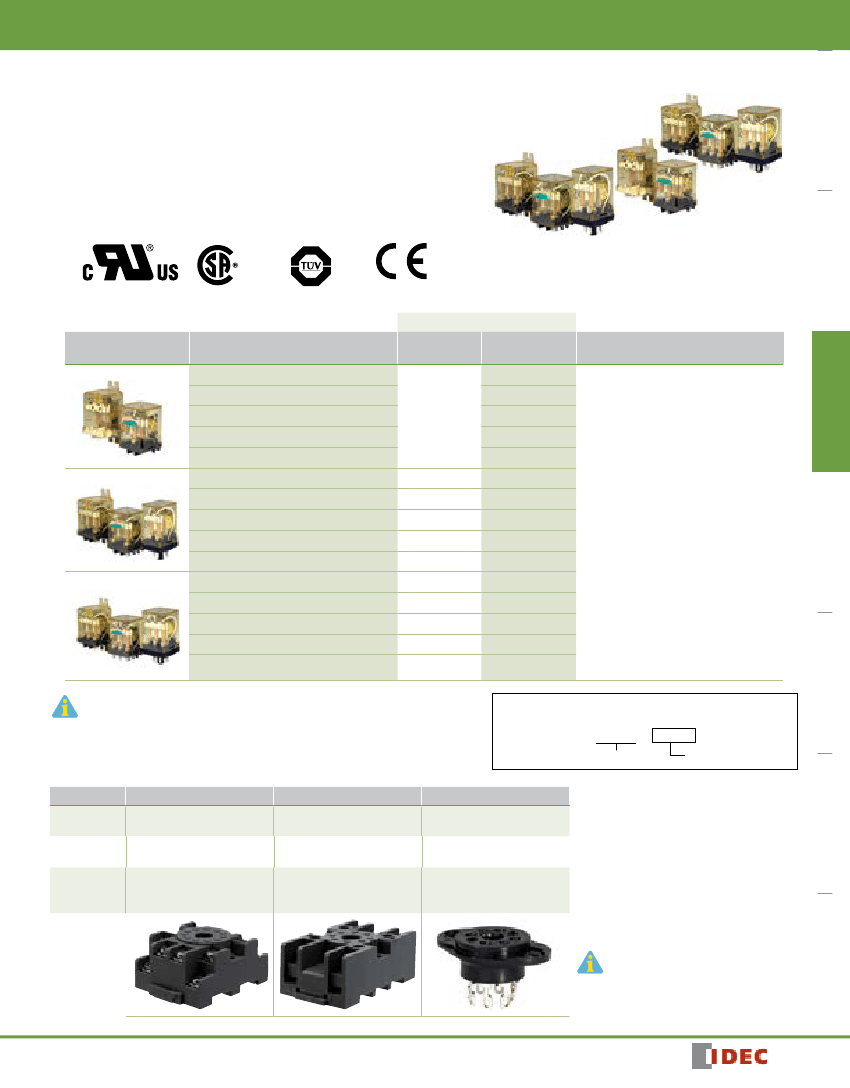

RR Series Power Relays
Key features:
• SPDT through 3PDT, 10A contacts
• Midget power type relays
• Available in pin and blade terminal styles.
• Options include an indicator, check button for test operations and side flange.
• DIN rail, surface and panel mount sockets are available for a wide a variety of
mounting applications.
RR
Switches & Pilot Lights
Signaling Lights
Part Number Selection
Part Number
Contact
SPDT
Standard
With Indicator
With Check Button
With Indicator and Check Button
Side Flange Model
DPDT
Standard
With Indicator
With Check Button
With Indicator and Check Button
Side Flange Model
3PDT
Standard
With Indicator
With Check Button
With Indicator and Check Button
Side Flange Model
*Blade type not TUV tested or CE marked.
Side flange model mounts directly to panel with no socket required.
Model
Pin Terminal
Blade Terminal*
RR1BA-U
0
RR1BA-UL
0
Coil Voltage Code
(Standard Stock Items in Bold)
Relays & Sockets
—
RR1BA-UC
0
RR1BA-ULC
0
RR1BA-US
0
RR2P-U
0
RR2P-UL
0
RR2P-UC
0
RR2P-ULC
0
—
RR3PA-U
0
RR3PA-UL
0
RR3PA-UC
0
RR3PA-ULC
0
—
RR2BA-U
0
RR2BA-UL
0
RR2BA-UC
0
RR2BA-ULC
0
RR2BA-US
0
RR3B-U
0
RR3B-UL
0
RR3B-UC
0
RR3B-ULC
0
Contactors
RR3B-US
0
Ordering Information
AC6V, AC12V, AC24V, AC110V,
AC120V,
AC240V,
DC6V, DC12V,
DC24V,
DC48V, DC110V
Timers
When ordering, specify the Part No. and coil voltage code:
(example)
RR3B-U
Part No.
AC120V
Coil Voltage Code
Sockets
Terminal Blocks
Relays
RR2P
RR3PA
RR1BA
RR2BA
RR3B
Standard DIN Rail Mount
SR2P-05
SR2P-06
SR3P-05
SR3P-06
SR3B-05
Finger-safe DIN Rail Mount
SR2P-05C
SR3P-05C
—
Through Panel Mount
SR2P-51
SR3P-51
SR3B-51
Circuit Breakers
All DIN rail mount sockets shown here can be
mounted using DIN rail BNDN1000.
1705242125
800-262-IDEC
(4332)
•
USA & Canada
883
RR
Switches & Pilot Lights
Relays & Sockets
Hold Down Springs & Clips
Appearance
Description
Relay
RR2P
Pullover Wire
Spring
RR3PA
RR1BA, RR2BA,
RR3B
RR2P, RR3PA
For DIN
Mount Socket
SR2B-02F1
SR3B-02F1
SR3B-02F1
SFA-203
For Through Panel &
PCB Mount Socket
SR3P-01F1
SR3B-02F1
–
Signaling Lights
Leaf Spring
(side latch)
Accessories
Item
Aluminum
DIN Rail
(1 meter length)
Appearance
Use with
All DIN rail sockets
Part No.
BNDN1000
Remarks
The BNDN1000 is designed to accommodate DIN mount sockets.
Made of durable extruded aluminum, the BNDN1000 measures 0.413
(10.5mm) in height and 1.37 (35mm) in width (DIN standard). Standard
length is 39” (1,000mm).
9.1 mm wide.
Relays & Sockets
DIN Rail End
Stop
DIN rail
BNL5
Replacement
Hold-Down
Spring Anchor
Horseshoe clip for sockets
SR3B-05, SR2P-06, SR3P-06
Chair clip for sockets
SR2P-05(C), SR3P-05(C)
Y778-011
For use on DIN rail mount socket when using pullover wire hold down
spring. 2 pieces included with each socket.
Y703-102
Circuit Breakers
Terminal Blocks
Contactors
Timers
884
www.IDEC.com
1705242125
Relays & Sockets
Specifications
Contact Material
Contact Resistance
1
Minimum Applicable Load
Operating Time
Release Time
2
2
RR
Switches & Pilot Lights
Silver
30 mΩ maximum
1V DC, 10 mA
25 ms maximum
25 ms maximum
AC: 3 VA (50 Hz), 2.5 VA (60 Hz)
DC: 1.5W
100 MΩ minimum (500V DC megger)
Between live and dead parts:
Pin Terminal
Between contact and coil:
Between contacts of different poles:
Between contacts of the same pole:
Between live and dead parts:
Blade Terminal
Between contact and coil:
Between contacts of different poles:
Between contacts of the same pole:
Electrical:
Mechanical:
Damage limits:
Operating extremes:
Damage limits:
Operating extremes:
10,000,000 operations
200,000 operations (220V AC, 5A)
3
Power Consumption (approx.)
Insulation Resistance
Signaling Lights
1500V AC, 1 minute
1500V AC, 1 minute
1500V AC, 1 minute
1000V AC, 1 minute
2000V AC, 1 minute
2000V AC, 1 minute
2000V AC, 1 minute
1000V AC, 1 minute
1. Measured using 5V DC, 1A voltage drop method
2. Measured at the rated voltage (at 20°C), excluding contact
bouncing
3. For use under different temperature conditions, refer to
Continuous Load Current vs. Operating Temperature Curve.
Dielectric
Strength
Relays & Sockets
Operating Frequency
Vibration Resistance
Shock Resistance
Mechanical Life
Electrical Life
Operating Temperature
Operating Humidity
Weight (approx.) (Standard type)
1800 operations/h maximum
18,000 operations/h maximum
10 to 55 Hz, amplitude 0.5 mm
10 to 55 Hz, amplitude 0.5 mm
1000 m/s
2
(100g)
100 m/s
2
(10G)
Timers
–25 to +40°C (no freezing)
5 to 85% RH (no condensation)
RR2P: 90g, RR3PA: 96g, RR1BA/RR2BA/RR3B: 82g
Coil Ratings
Rated Current (mA) ±15% (at 20°C)
Rated Voltage (V)
6
12
AC
(50/60 Hz)
24
110
120
240
6
12
DC
24
48
110
50 Hz
490
245
121
27
24
12.1
240
120
60
30
13
60 Hz
420
210
105
23
20.5
10.5
Coil Resistance (Ω)
±10% (at 20°C)
4.9
18
79
1,680
2,100
8,330
Terminal Blocks
25
100
400
1,600
8,460
110%
80% maximum
10% minimum
110%
80% maximum
30% minimum
Operating Characteristics (values at 20°C)
Maximum Continuous
Applied Voltage
Pickup Voltage
Dropout Voltage
Contactors
Circuit Breakers
1705242125
800-262-IDEC
(4332)
•
USA & Canada
885
RR
Switches & Pilot Lights
Relays & Sockets
UL Ratings
Maximum Contact Capacity
Continuous
Current
Allowable Contact Power
Resistive
Load
1650VA AC
300W DC
Inductive
Load
1100VA AC
150W DC
Voltage (V)
110 AC
220 AC
30 DC
Rated Load
Res. Load
10A
7.5A
10A
Ind. Load
7.5A
5A
5A
Voltage
240V AC
120V AC
30V DC
Resistive
10A
10A
10A
General use
7A
7.5A
7A
Horse Power Rating
1/3 HP
1/4 HP
—
Contact Ratings
10A
CSA Ratings
Voltage
240V AC
120V AC
100V DC
30V DC
Resistive
10A
10A
—
10A
General use
7A
7.5A
0.5A
7.5A
Signaling Lights
Note: Inductive load for the rated load — cos ø = 0.3, L/R = 7 ms
TÜV Ratings
Voltage
240V AC
30V DC
10A
10A
AC: cos ø = 1.0, DC: L/R = 0 ms
Relays & Sockets
Socket Specifications
Relays
SR2P-05
SR2P-05C
DIN Rail
Sockets
SR2P-06
SR3P-05
SR3P-05C
SR3P-06
SR3B-05
Through
Panel Mount
Sockets
SR2P-51
SR3P-51
SR3B-51
Terminal
M3 screw with captive wire clamp
M3 screw with captive wire clamp, fingersafe
M3 screw with captive wire clamp
M3 screw with captive wire clamp
M3 screw with captive wire clamp, fingersafe
M3 screw with captive wire clamp
M3 screw with captive wire clamp
Solder
Solder
Solder
300V, 10A
300V, 10A
300V, 10A
300V, 10A
300V, 10A
300V, 10A
300V, 15A (10A)* (*CSA rating)
300V, 10A
300V, 10A
300V, 10A
Electrical Rating
Wire Size
Maximum 2 - #12 AWG
Maximum 2 - #12 AWG
Maximum 2 - #12 AWG
Maximum 2 - #12 AWG
Maximum 2 - #12 AWG
Maximum 2 - #12 AWG
Maximum 2 - #12 AWG
—
—
—
Torque
9 - 11.5in•lbs
9 - 11.5in•lbs
9 - 11.5in•lbs
9 - 11.5in•lbs
9 - 11.5in•lbs
9 - 11.5in•lbs
9 - 11.5in•lbs
—
—
—
Circuit Breakers
Terminal Blocks
Contactors
Timers
886
www.IDEC.com
1705242125
Relays & Sockets

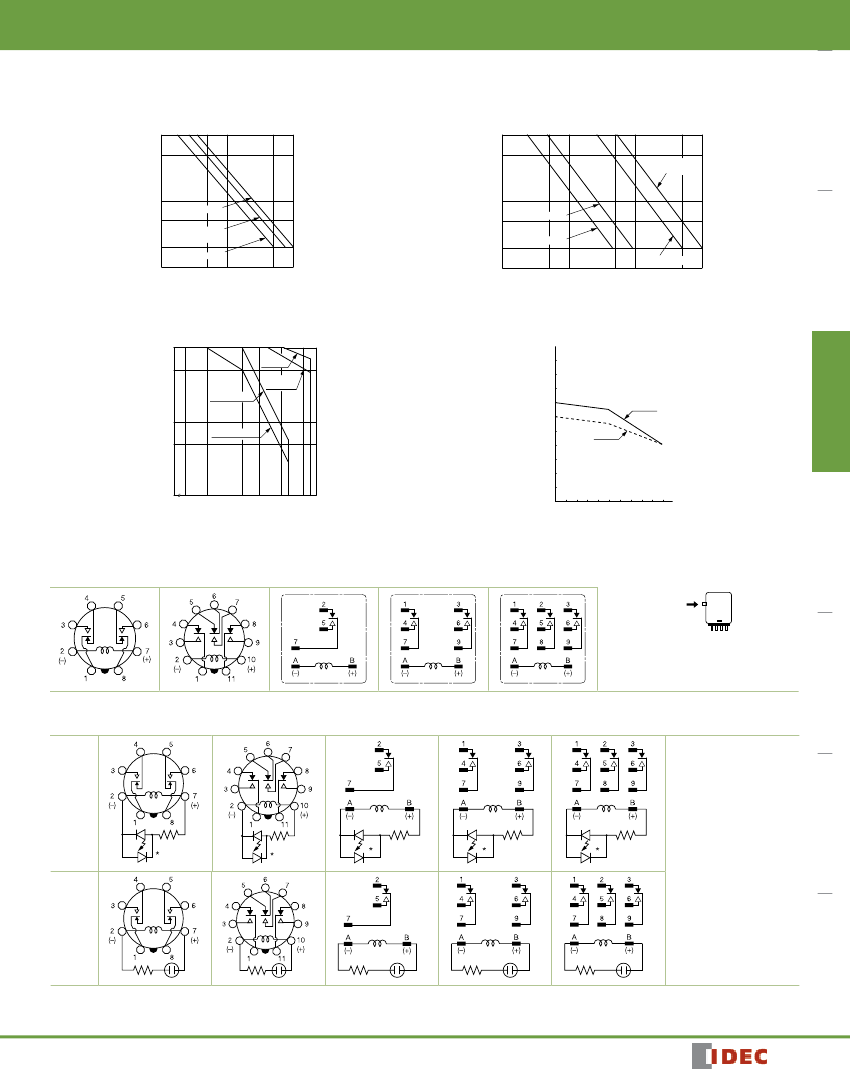

Characteristics (Reference Data)
Electrical Life Curves
AC Load
1000
500
Life (¥ 10,000 operations)
RR
Switches & Pilot Lights
DC Load
1000
500
Life (¥ 10,000 operations)
30V DC
resistive
100
110V AC resistive
50
20
220V AC resistive
110V AC inductive
220V AC inductive
10
0.1
0.5
1
Load Current (A)
5
10
100
50
20
100V DC resistive
Signaling Lights
100V DC inductive
30V DC inductive
0.05
0.1
0.5
Load Current (A)
1
5
10
10
0.01
Maximum Switching Capacity
10.0
5.0
AC
resistive
AC
inductive
Continuous Load Current vs. Operating Temperature Curve
(Standard Type, With Check Button, and Side Flange Type)
100
90
Operating Temperature (C)
80
70
60
50
40
30
20
10
AC Coil
DC Coil
Relays & Sockets
Load Current (A)
DC resistive
1.0
DC inductive
0.5
1 5
10
30
50
100
200 300
0
Load Voltage (V)
1 2 3 4 5 6 7 8 9 10
Load Current (A)
Timers
Internal Connection (View from Bottom)
Standard Type
RR2P-U
RR3PA-U
RR1BA-U
RR2BA-U
RR3B-U
With Check Button
Front
Pushbutton
Contacts can be operated by pressing the
check button.
Contactors
With Indicator (-UL type)
RR2P
RR3PA
RR1BA
RR2BA
RR3B
Coil
Below
100V
AC/DC
Terminal Blocks
Coil
100V
AC/DC
and over
When the relay is energized,
the indicator goes on.
•
An LED protection diode is
not contained in relay coils
below 100V DC.
•
Coils below 100V use
LED indicator while coils
above 100V use neon lamp
indicator.
Circuit Breakers
1705242125
800-262-IDEC
(4332)
•
USA & Canada
887
